2.3 CONNECTING THE INSTRUMENTS

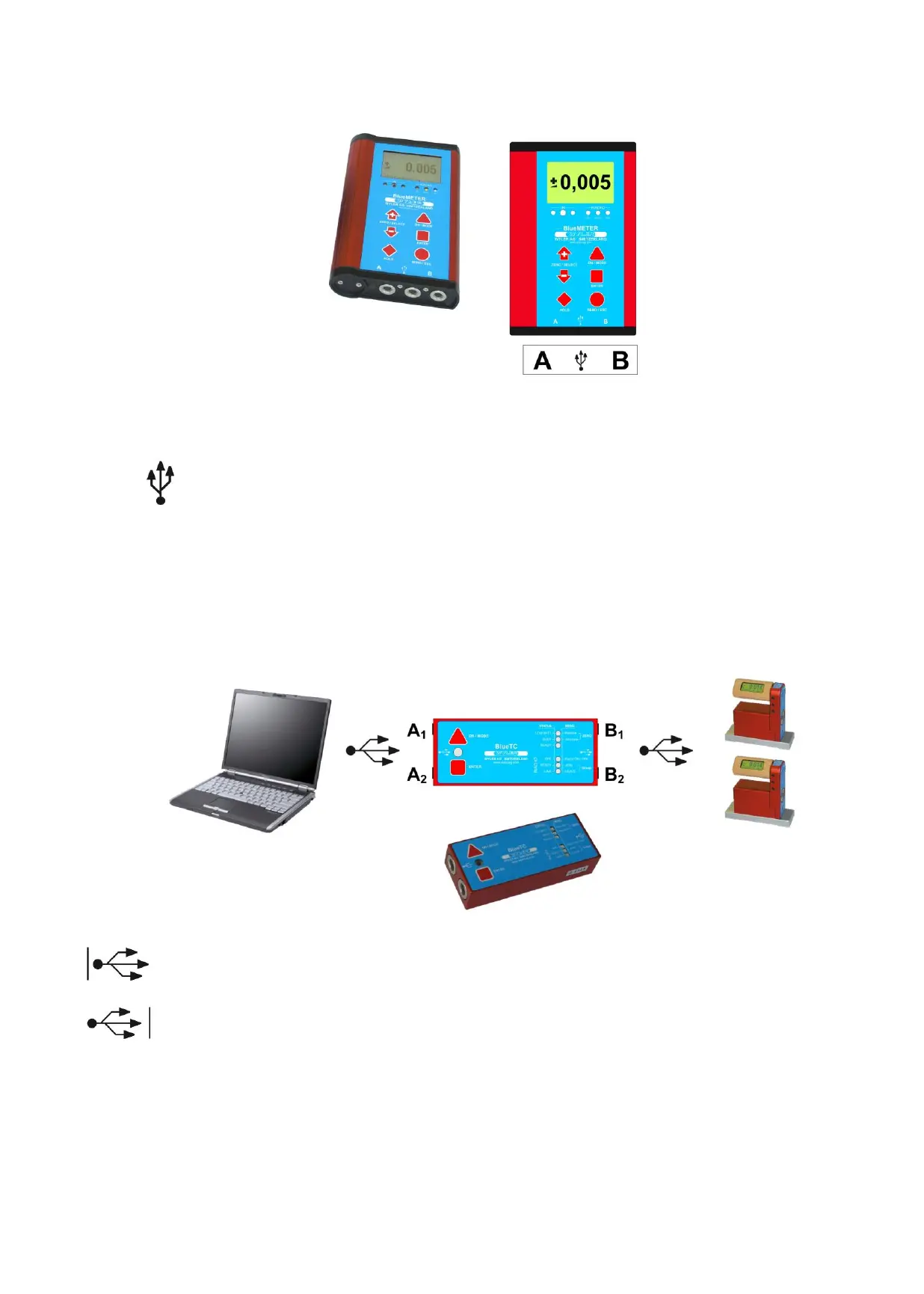

2.3.1 CONNECTING THE BLUEMETER
CONNECTOR „A“
 CABLE CONNECTION FOR INSTRUMENT BLUELEVEL OR WYBUS COMPATIBLE
INSTRUMENT
 CABLE CONNECTION FOR EXTERNAL POWER SUPPLY
 CONNECTION TO PC OR LAPTOP
 CABLE CONNECTION FOR EXTERNAL POWER SUPPLY
CONNECTOR „B“
 CABLE CONNECTION FOR INSTRUMENT BLUELEVEL OR WYBUS COMPATIBLE
INSTRUMENT
 CABLE CONNECTION FOR EXTERNAL POWER SUPPLY
REMARKS:
AN EXTERNAL POWER SUPPLY UNIT MAY BE CONNECTED TO ANY FREE CONNECTOR
2.3.2 CONNECTING THE BLUETC
A
1
A
2
 CONNECTION TO PC OR LAPTOP
 CABLE CONNECTION FOR EXTERNAL POWER SUPPLY
B
1
B
2
 CABLE CONNECTION FOR INSTRUMENT BLUELEVEL OR WYBUS COMPATIBLE
INSTRUMENT
 CABLE CONNECTION FOR EXTERNAL POWER SUPPLY
REMARKS:
AN EXTERNAL POWER SUPPLY UNIT MAY BE CONNECTED TO ANY FREE CONNECTOR
