X – 60 Instructions Version 1.0 Page 18

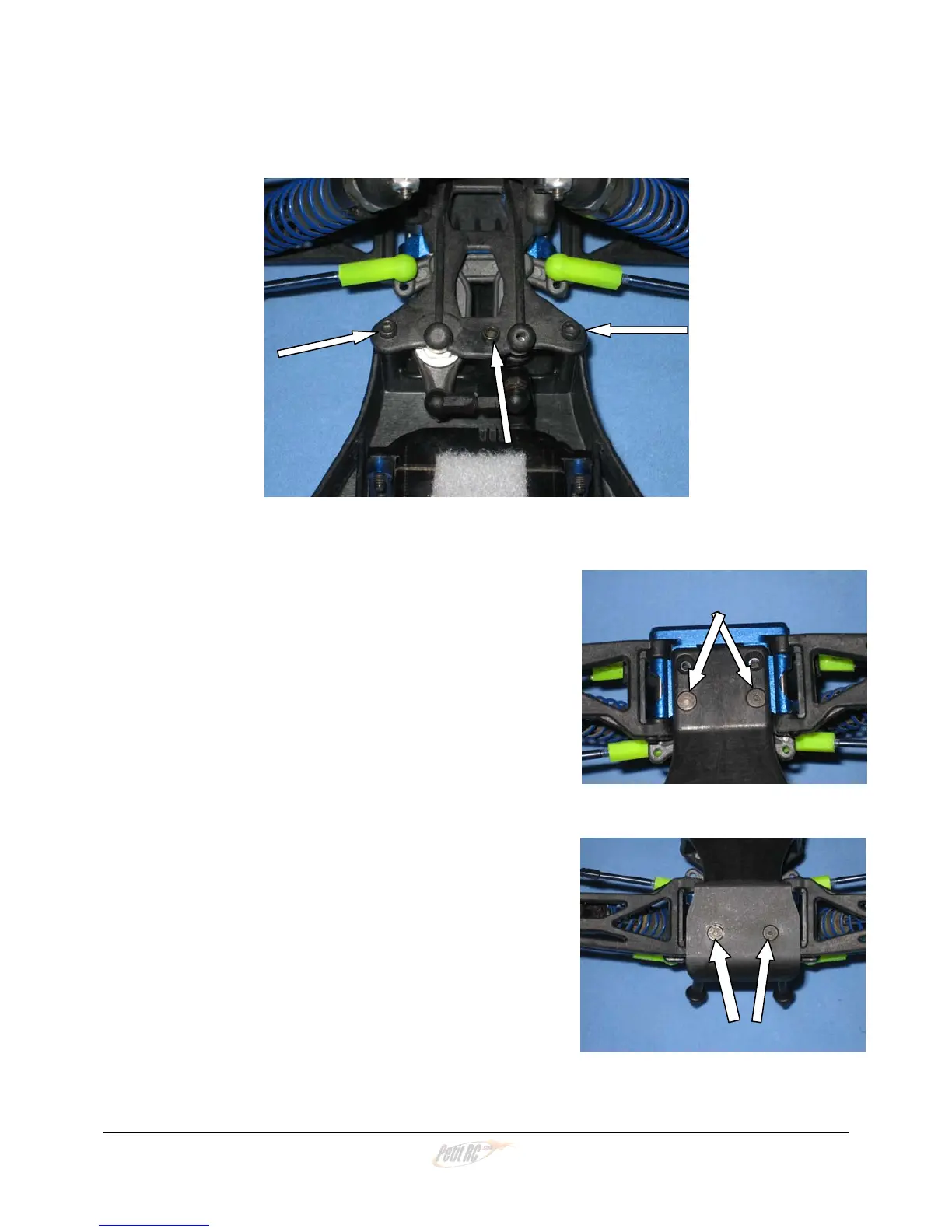

A15) Secure the top plate with the three screws you took out from the T4. Leave
these screws finger-tight for now.
A16) Carefully turn the chassis & front suspension
over. Install the two 5/8” flat head screws you
removed from the bulkhead back into the
rear-most of the four holes at the front of the
chassis.
A17) Place the front bumper (9562) in position and
secure it with the two 5/8” flat head screws you
took out.
