X – 60 Instructions Version 1.0 Page 17
FRONT END INSTALLATION

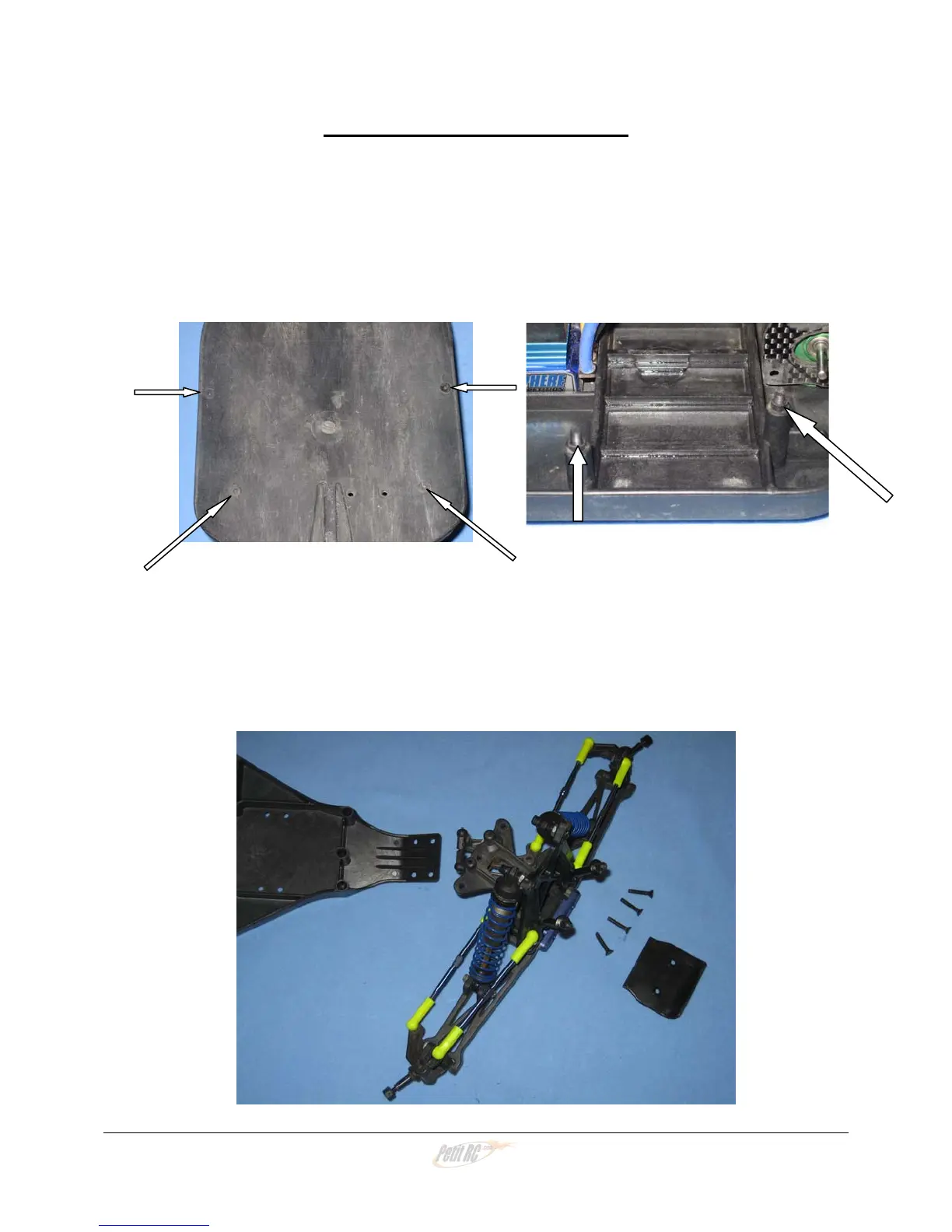

A13) Install two 4-40 X 1 1/4” black flat head screws (short arrows) up from the bottom
of the chassis in the two forward outside battery posts. Install the two stainless
4-40 X 1 ½” flat head screws (long arrows) in the two rear inside battery posts.
These screws go all the way through the four battery hold-down posts and will
secure the battery hold-down strap. It is easiest to do this now and they won’t be
in the way later.
A14) Position the T4 front suspension and steering over the front of the chassis just as
it was on your T4. Be careful that the steering assembly remains in place and
that the bulkhead (9563) stays in position with the top plate (9566). The top plate
should fit snugly over the center post in the chassis and on the bosses at each
side of the front of the chassis.
