X – 60 Instructions Version 1.0 Page 29
BAG D
FINISH IT UP

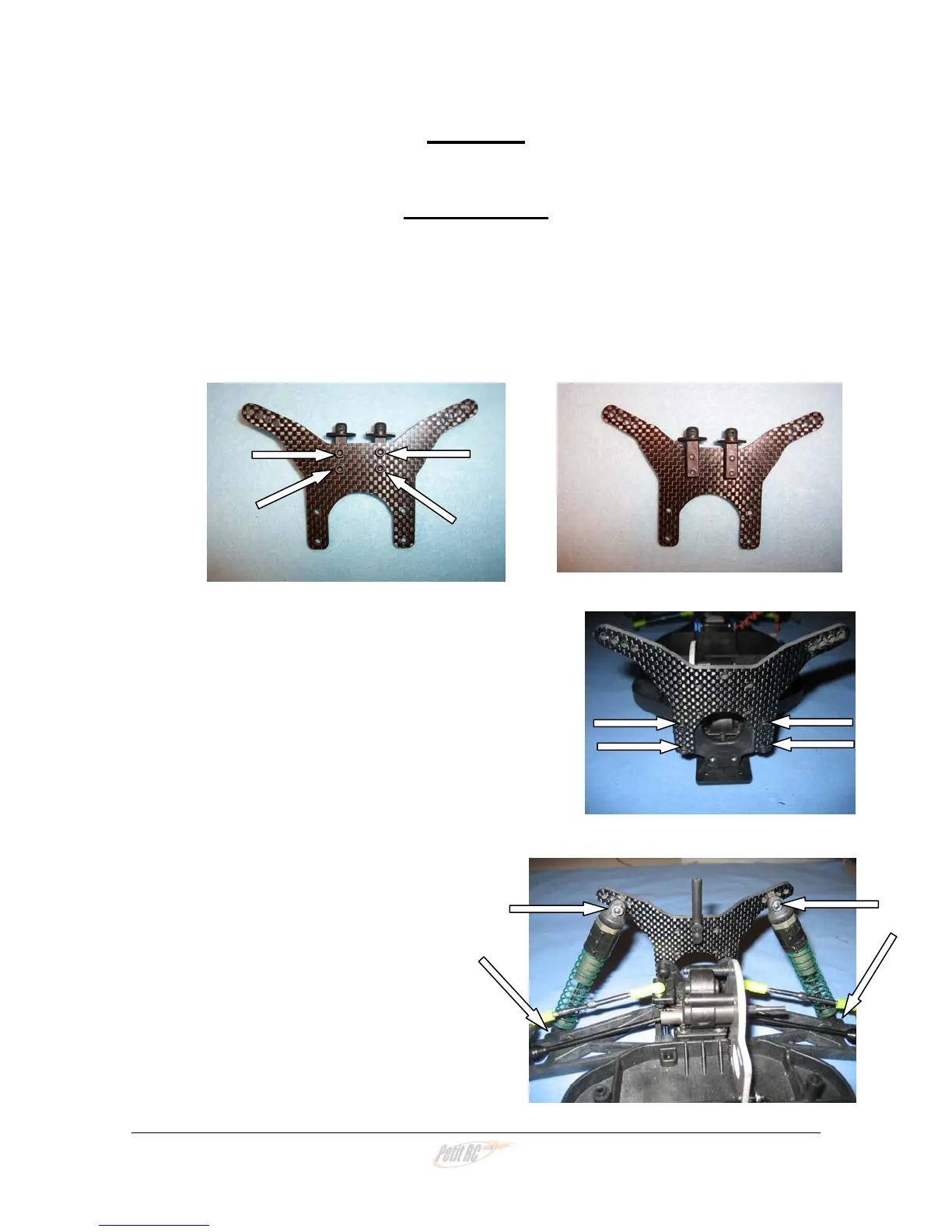

REAR TOWER & SHOCKS
D1) Install the body mounts to the shock tower using four 4-40 X 3/8” cap
head screws. Make sure the mounts are straight.
D2) Install the tower, with body mounts
forward, using four 4-40 X ½” cap
head bolts (two from bag, two from
instruction #21). In a few bulkheads these
screws have stripped when
over-tightened, so don’t be a gorilla here.
Prototype tower in this photo, has no
body mounts.
D3) Install the rear shocks to the front
of the shock tower and the rear
of the control arms using all the parts
saved from your T4. This photo
still has a prototype body mount.
