X – 60 Instructions Version 1.0 Page 28

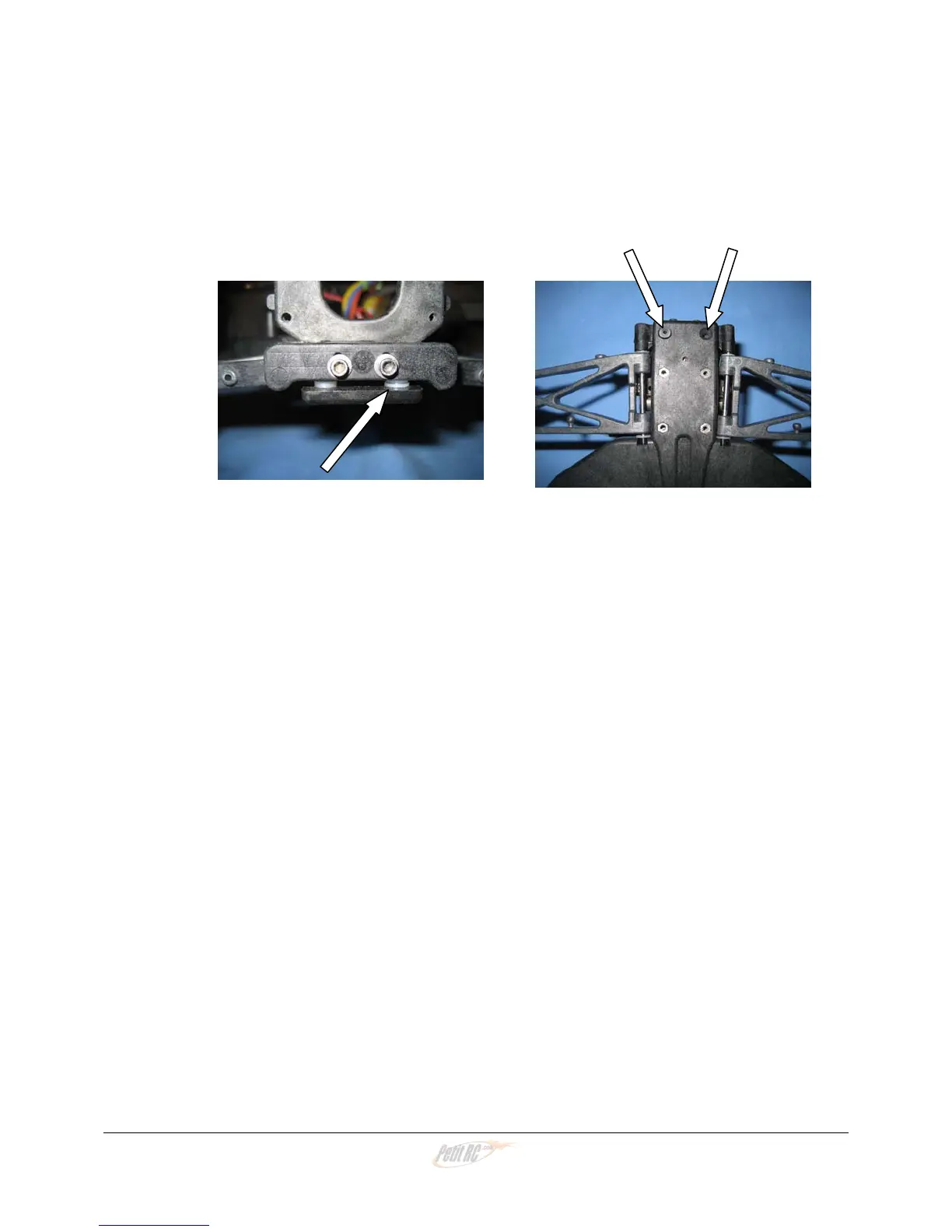

C11) Consult the Tuning Section and Set-Up sheet to determine how many shims you
will use under the toe-in bar tp set anti-squat. You have a bag with four 060”
and two .030” shims which allow you to make .030” increments from zero to
.150”. In the left photo, we have a .030” and a .060” to make .090”. Secure the
toe-in bar and shims from below with the two 4-40 X 3/8” flat head screws. Then,
secure the two cap head screws from C10 above..
Almost finished now. This thing is sooo dialed…
