X – 60 Instructions Version 1.0 Page 23

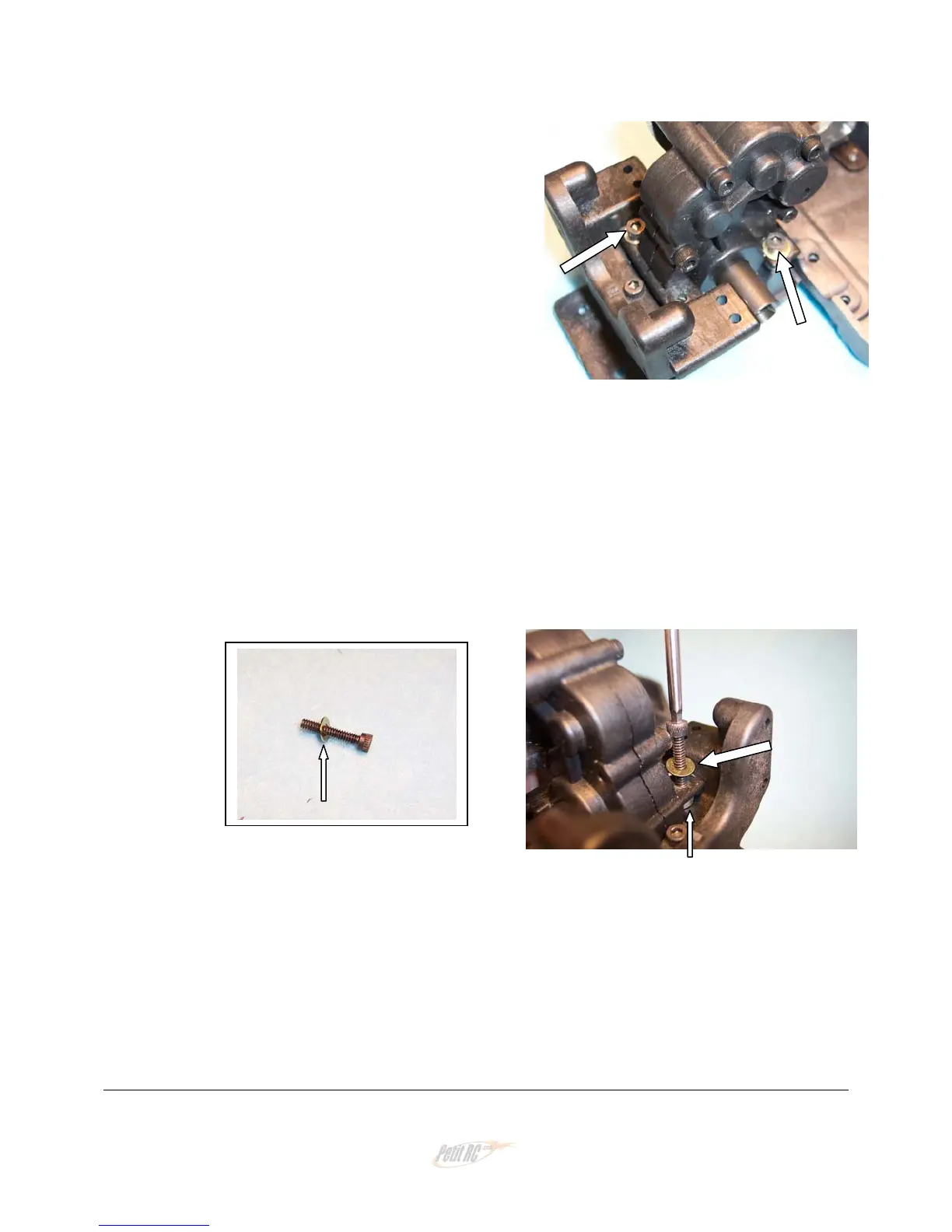

B8) Place the shims for the left rear and right
front transmission bolts on their chassis
bosses. Slide the transmission down over
them and install two 4-40 X 5/8” cap
head bolts and flat washers. Leave these
bolts finger tight for now.
B9) Place a flat washer about half way on the last 4-40 X 5/8” cap head bolt. Slide
the spacer under the right rear transmission mounting tab (small arrow). Put the
bolt in so the washer is beneath the transmission case bolt (large arrow), then
install the bolt finger tight. The head of this bolt will rub on the case bolt a bit, but
that’s OK.
To Next Page
