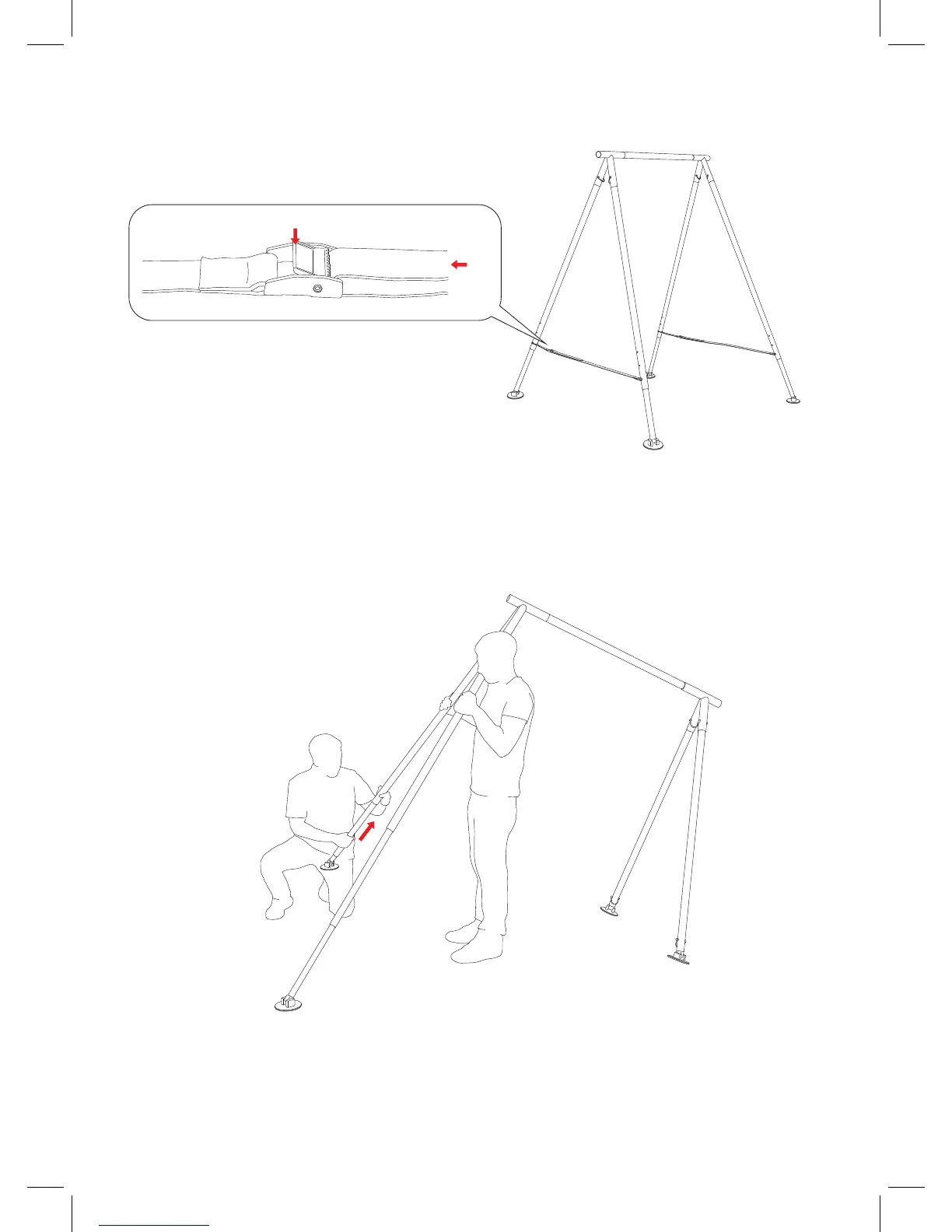

DISMANTLING THE A-FRAME
1. Remove the sand bags.
2. Remove the straps.
3. Remove both pins at legs numbered 1 whilst another person holds the legs. Slide both legs in.
Once the legs have been retracted on one side, lower this down so the feet are touching the oor, now repeat the
same process for legs numbered 2, whilst the second person holds the legs. Slide both legs in.
Fig 3.2
Fig 3.3
Press down
Feed strap to loosen
Note: Leave the pins to one side, they will be needed again to secure the legs prior to packing it away.
