Let’s quickly review the functions of each part of the keyboard (you can go to page 7 for

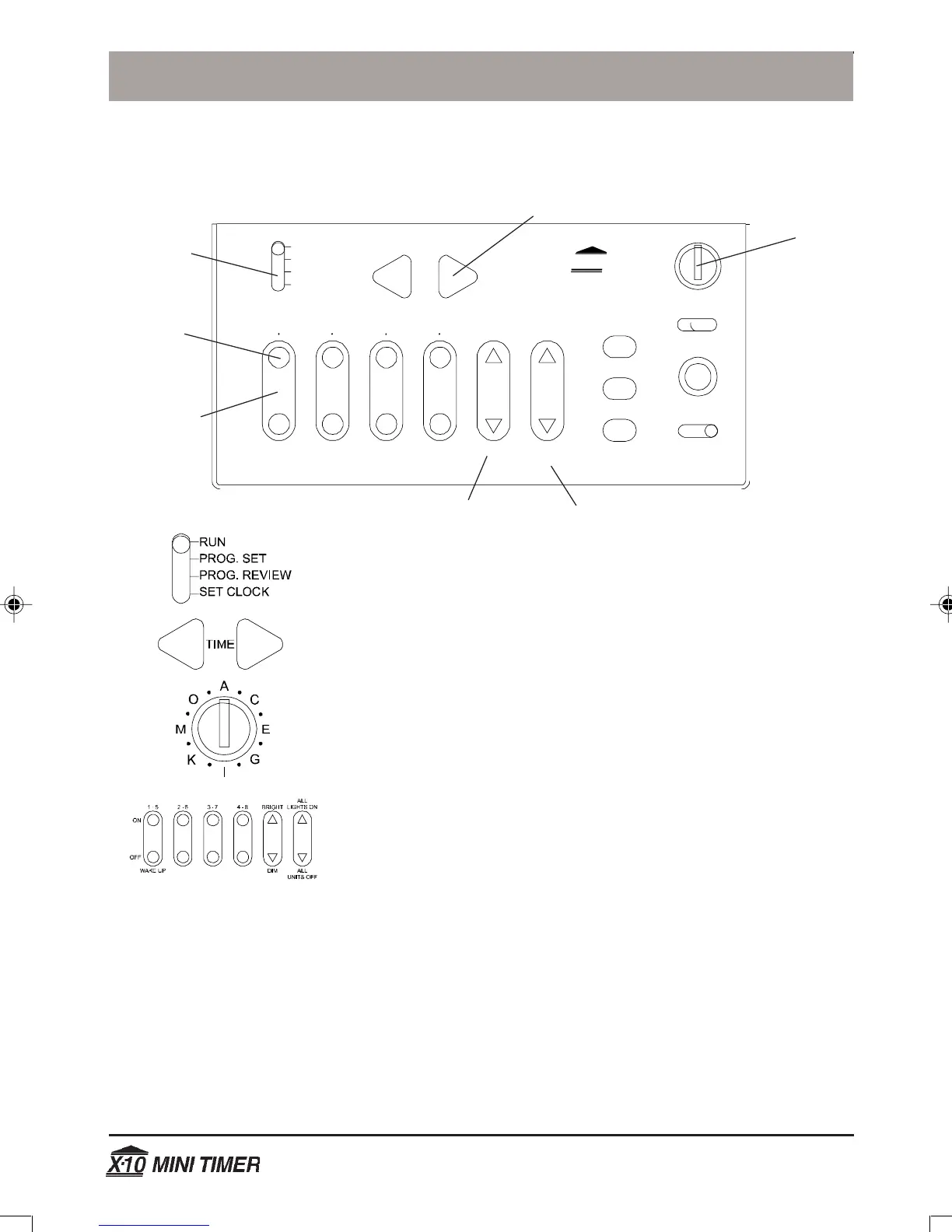

a step by step tutorial if you prefer). Referring to the diagram below and the cutaway
sections that follow you will see that the keyboard on the Mini Timer consists of 7 basic
areas.
Quick Tour
1.Mode Switch. This is used to select whether you want to
enter a timed event, review your program of events, or set
the clock.
2.Time Adjust Rocker Key. This is used to set the time of the
clock and the time you want to set for each programmed
event.
3.Housecode Dial. In the top right hand corner is the
Housecode dial which you set to the same letter as all of
your Modules and any other Controllers you may own.
4.ON/OFF Rocker Keys. In the bottom left hand corner there
are 6 rocker keys. The first 4 are used to turn Modules 1
through 4 (or 5 through 8) on and off instantly by pressing
either the top of the rocker for ON or bottom for OFF.
In the “Prog Set ” mode these rockers are used to set on or
off times for the selected number (1 to 4 or 5 to 8).
5.Alarm. Rocker key 1 (or 5) also sets the time for the internal alarm buzzer.
6.Bright/Dim Rocker Key. The Bright and Dim rocker key brightens and dims lights
connected to Lamp Modules and Wall Switch Modules if pressed after first selecting
the Module by pressing the ON rocker corresponding to it’s Unit Code (1 to 4 or 5 - 8).
7.All Lights On/All Units Off Rocker Key. Instantly turns on ALL Lamp Modules and
Wall Switch Modules and instantly turns off ALL Modules including Appliance
Modules.
ON
WAKE UP
BRIGHT
SLEEP
WAKE UP
CLEAR
SEL ECTOR
ONCE
SECURITY
TIME
DIM ALL
UNITS OFF
ALL
LIGHTS ON
OFF
1-4 5-8
OFFON
26 3715 48
RUN
PROG. SET
PROG. REVIEW
SET CLOCK
A
C
E
G
I
K
M
O
.
.
.
.
..
.
.
M
IN ITIMER
X
10
.
1. Mode
Switch
5. Set
Alarm
4. ON/OFF
Rockers
3. Housecode
Dial
2. Time Adjust Rockers
7. All Lights On/All Units Off Rocker6. Bright/Dim Rocker
