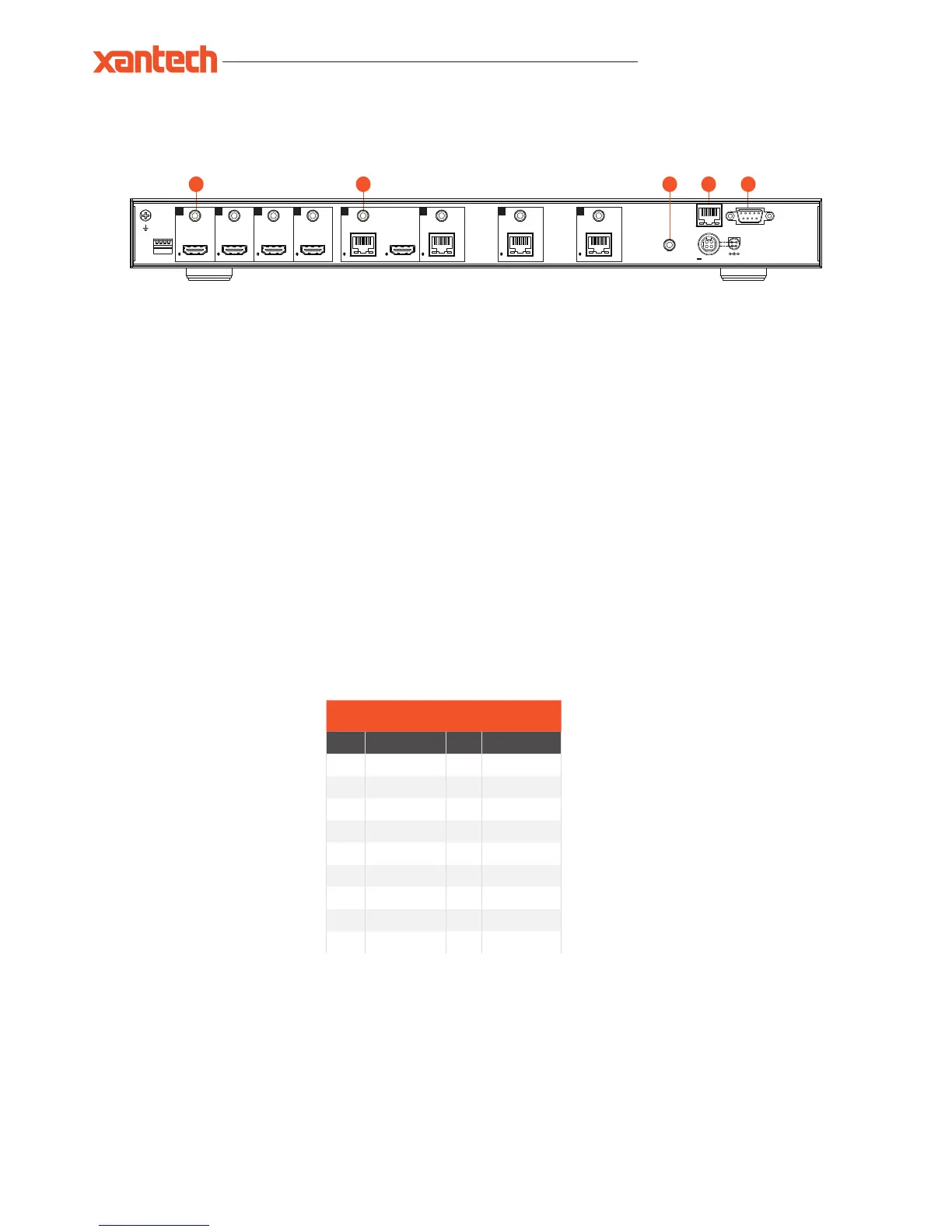

The XT-HDBT-MX44-4K Matrix main communication ports are located on the rear panel and includes the following connections:
Connections:
IR output - 3.5mm mono jack provides routed IR emitter
IR input - 3.5mm stereo jack provides zone specific routed IR receiver input
IR input for matrix control
TCP/IP RJ45 socket for Web Interface control
RS-232 Serial port - For control of switcher by third party control devices
TCP/IP
The XT-HDBT-MX44-4K Matrix can be controlled via TCP/IP.
For the full list of protocols please see ' RS-232 and Telnet Commands' located at the rear of this manual.
The Matrix features a built-in web browser user interface allowing control and configuration of the matrix.
A ‘Straight-through’ RJ45 patch lead should be used.
RS-232 2-Way
The Matrix can be controlled via a 9-pin serial cable.
For the full list of protocols please see 'RS-232 and Telnet Commands' located at the rear of this manual.
Details of RS-232 pin assignment and communication are adjacent. Please note that depending on your control device serial port pin configuration
you may require either a ‘Straight’ RS-232 cable or ‘Null-modem’ type.
Control Ports
XANTECH RS-232 REMOTE CONTROL
CONSOLE
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
1 2 4 5
