Xantrex Trace C35 User Manual

©2000 Xantrex Technology Inc.
8
3.0 INSTALLATION
11
Heatsink not included
on C-35.

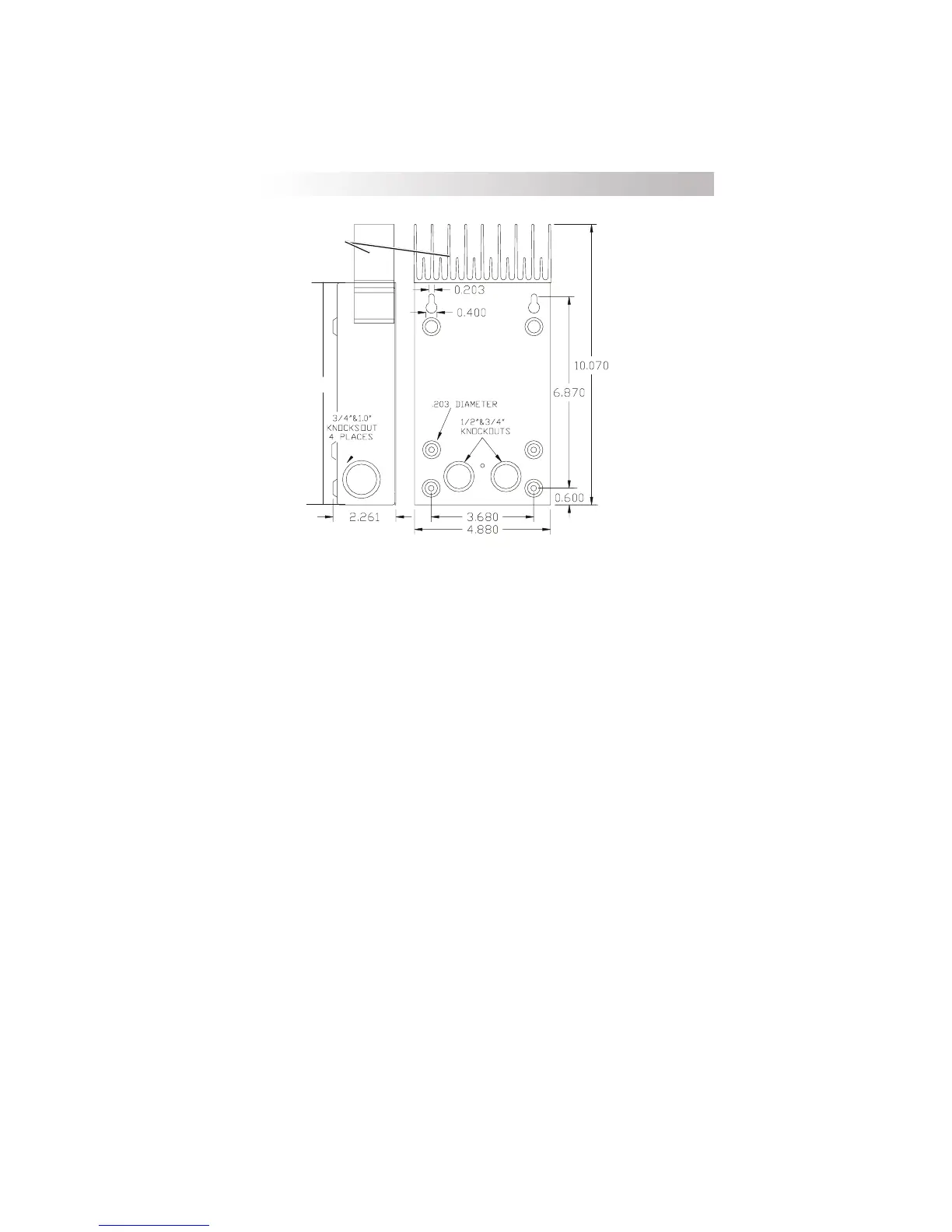

Figure 2
CSeries Dimensions
Do not locate the C-Series controller in a sealed compartment with the
batteries. Batteries can vent hydrogen sulfide gas, which is corrosive to
electronic equipment. Batteries also generate hydrogen and oxygen gas that
can explode when exposed to a spark.
If using sealed batteries, the controller can be mounted in the same
enclosure as long as it is adequately ventilated.
