Xcel-Arc VIPER Plasma CUT30 User Manual

10

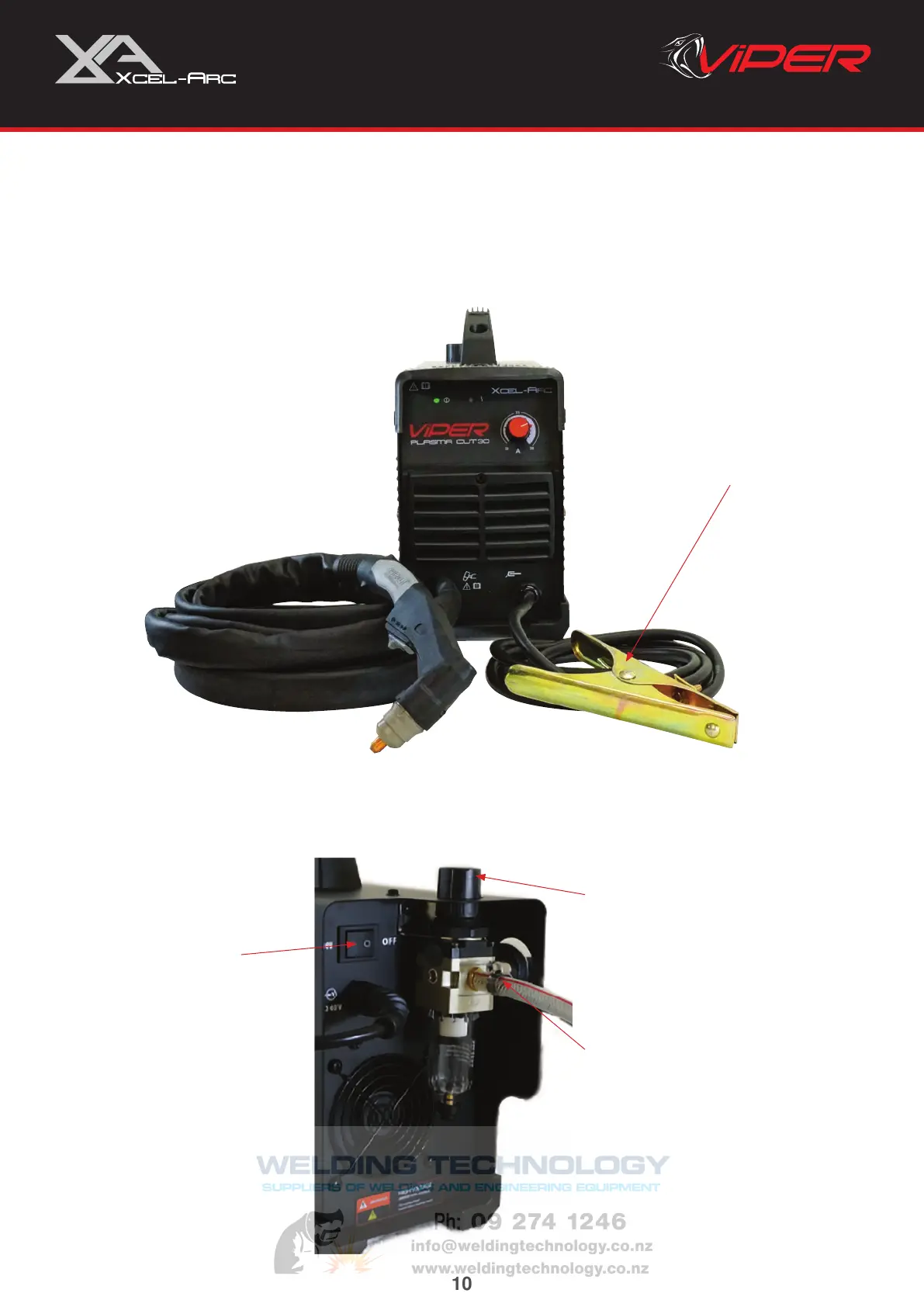

(1) Connect the earth clamp to the work piece.
(2) Connect the air supply to the air connection located at the rear of the machine.
(3) Set the Air Pressure at 5-6 Bar using the pressure adjusting knob.
(4) Connect the machine to the correct power supply and switch on the machine using the on/o󰀨 switch
located at the rear of the machine.
(3) Connect the machine to the
correct power supply and switch on
the machine using the on/o󰀨 switch
located at the rear of the machine.
1. Connect the earth lead
to the work piece
(2) Connect the air supply hose to the regulator
located at the rear of the machine and turn on
the air supply.
(3) Set the Air Pressure at 5-6 Bar using the
pressure adjusting knob.
Set Up Procedure for PLASMA Cutting
PLASMA CUT30
