9

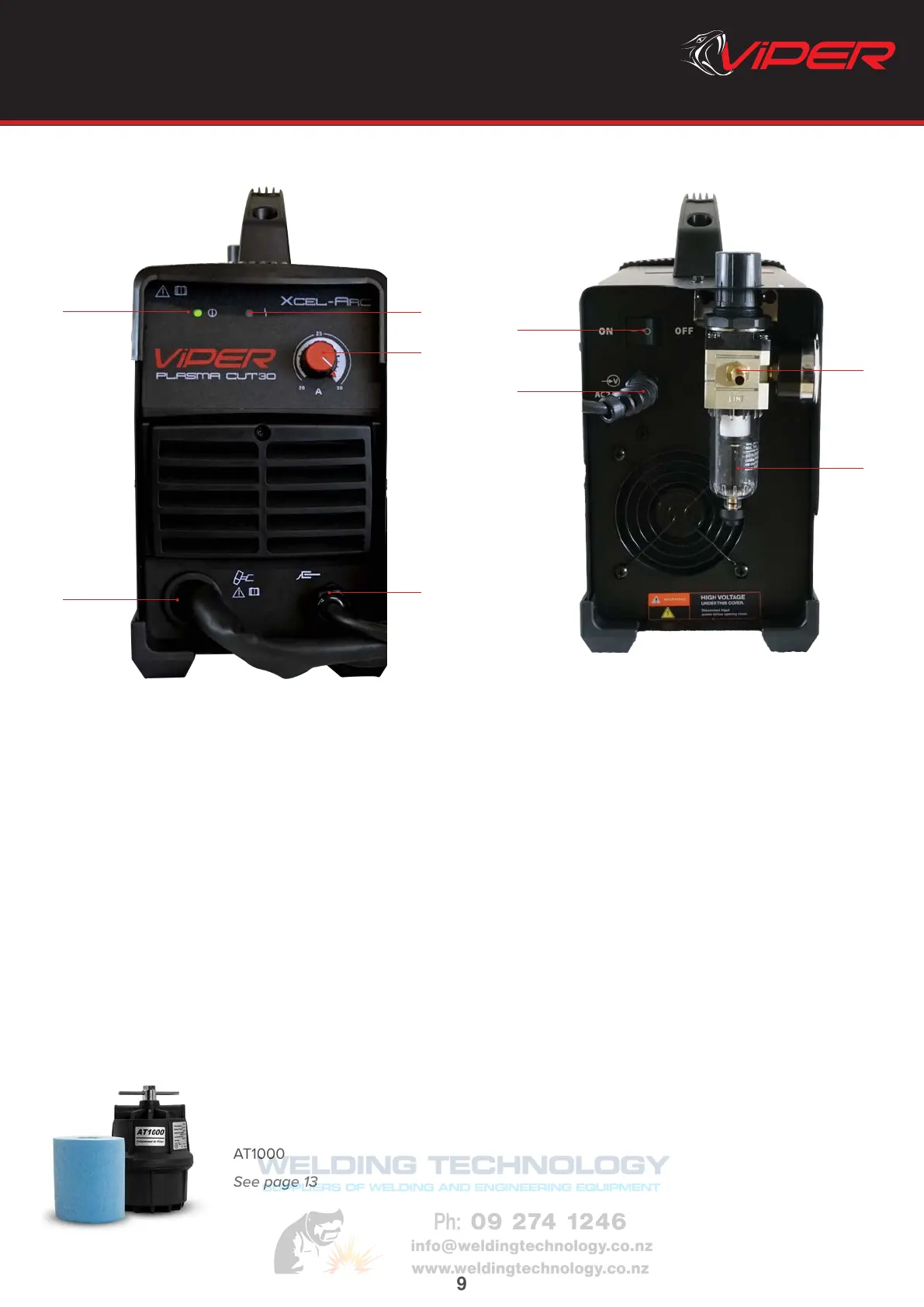

Front & Rear Panel Layout
Front Panel Layout Rear Panel Layout
2
3
4
1
8
9
6
5
7
PLASMA CUT30
(1) Mains Power LED
(2) Over Current - Thermal Overload LED
a. Abnormal or over current supply - LED ON
b. Overheating of the machine - LED ON
(3) Amperage Control Dial
(4) Torch connection
(5) Output connector, connect to the work piece
(6) On/O switch
(7) Primary power input cable
(8) Regulator
(9) Air supply connector inlet connection
(Note: the air regulator must be set to 5-6 Bar and the air compressor you are using must
be able to continually supply this pressure and a ow rate of 170 l/min)
Plasma Cutter Air Filter
AT1000
See page 13
Recommended Accessories
