Step #6 – Swashplate/Washout Mixer

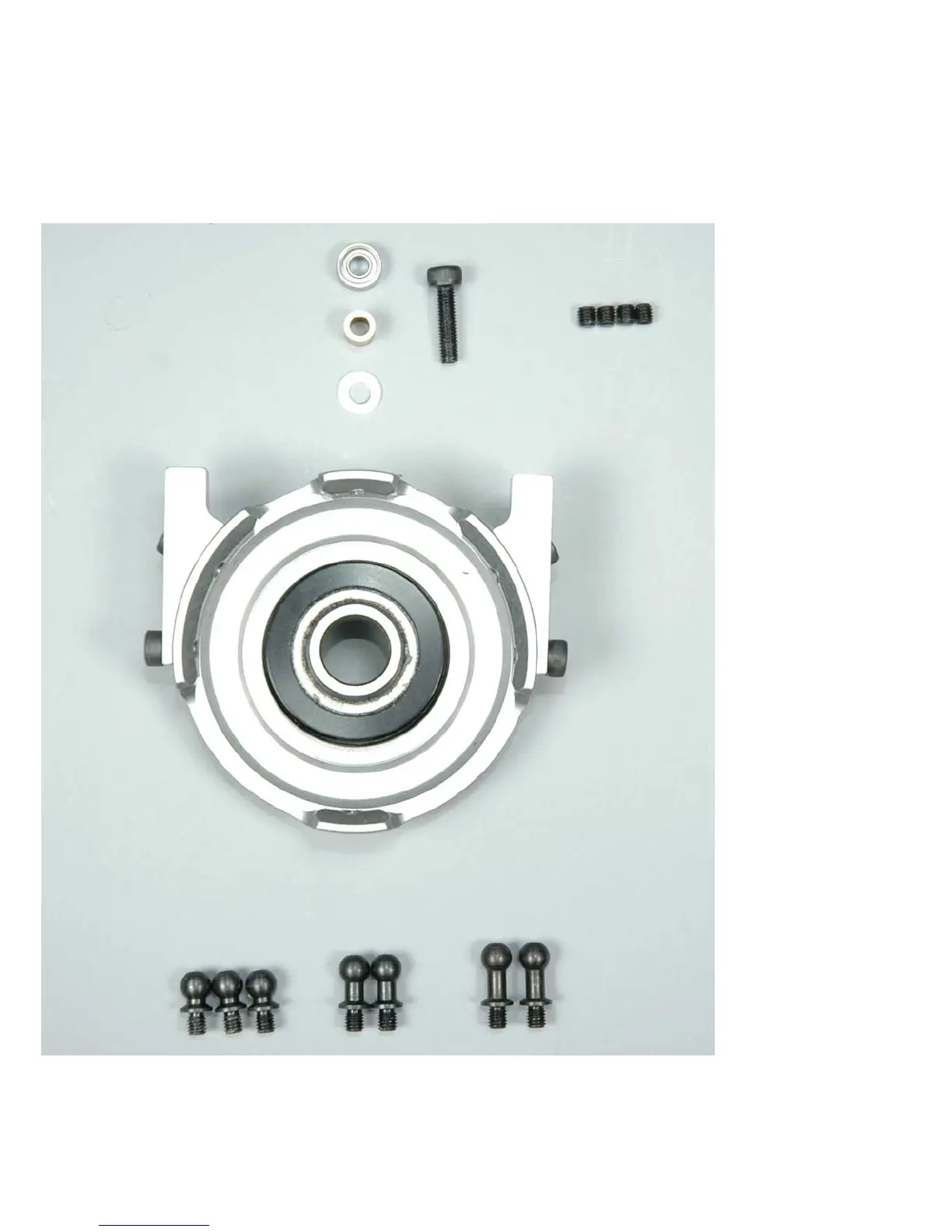

A) Swashplate - Bag #6A – Kit Specific

#0217-1

140° Swashplate

1 each

#0159

M3 x 7 Ball Bearing

1 each

#0597-3

M3 x 4.6 Brass Spacer

1 each

#0009

M3 Washer Small

1 each

#0065

M3 x 12

Socket Bolt

1 each

#0051

M3 x 3 Socket

Set Screw

4 each

#0107

M3 x 6

Threaded

Ball

3 each

#0109

M3 x 8

Threaded

Ball

2 each

#0112

M3 x 9.5

Threaded

Ball

2 each
