Xerox Phaser 8860 Service Documentation

09/2007
5-4
Phaser 8860/8860MFP Service Manual
PL 1.0
Parts List
Initial Issue

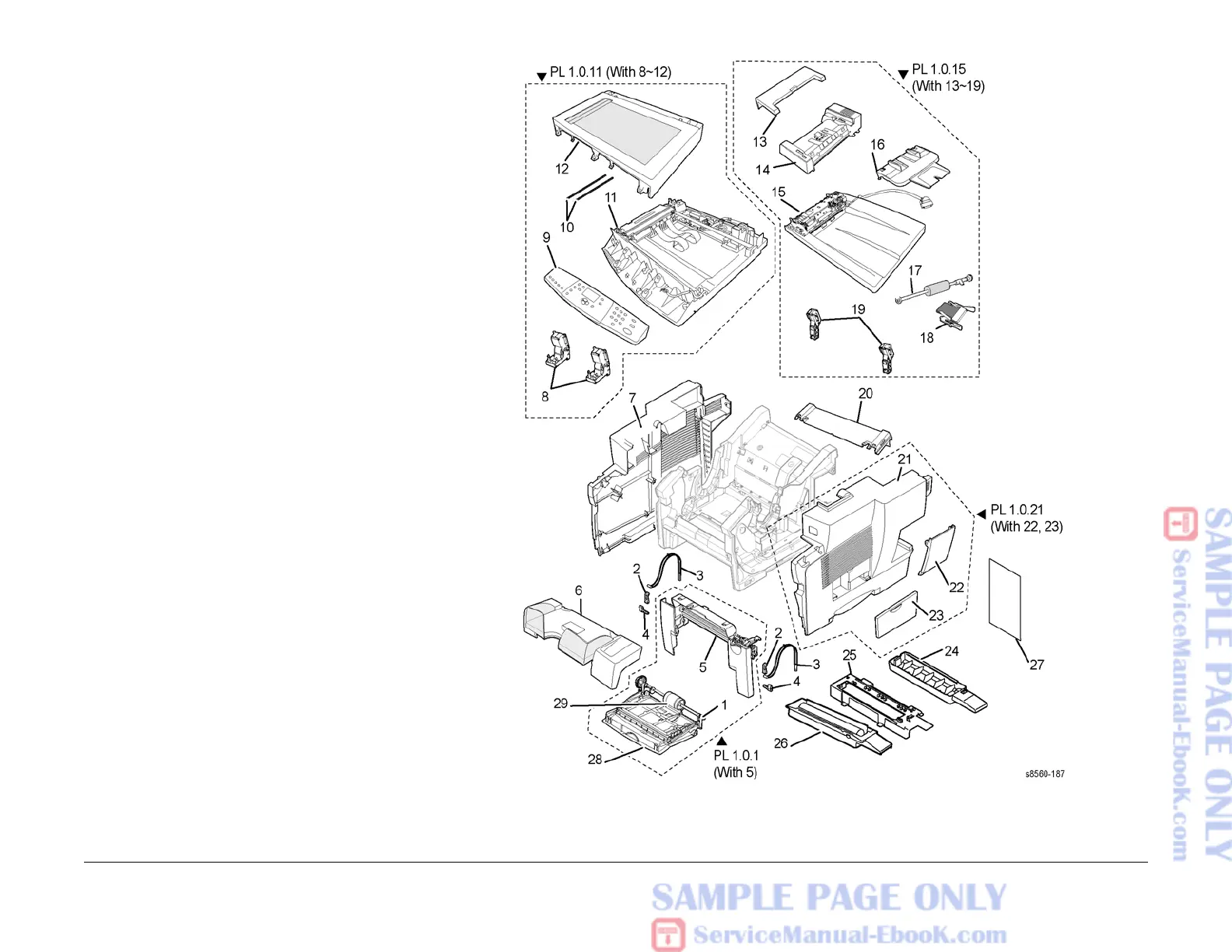

PL 1.0 8860MFP Covers
Item Part Description
1 848K06520 Front Door / Tray 1 Assembly
2 120E29140 Front Door Stay Retainer
3 009K02390 Front Door Stay with Spring
4 029E49330 Hinge Pins, Front Door
5 – Front Door (P/O PL 1.0 Item 1)
6 050E23550 Output Tray
7 101E23660 Left Side Cover
8 003K20530 Scanner Hinge
9 848E11560 Control Panel (without Overlays)
10 – Lamp Assembly
11 062K22590 Scanner Assembly (with 8-12)
12 – Upper Housing (P/O PL 1.0 Item
11) (Includes Glass)
13 – DADF Front Cover (P/O PL 1.0 Item
15)
14 – DADF Upper Cover (P/O PL 1.0
Item 15)
15 059K58460 DADF Assembly (with 13-19)
16 050K67610 DADF Input Tray
17 059K58650 DADF Pick Roller and Pad Kit
18 – Separator Pad (P/O PL 1.0 Item 17)
19 003K20520 DADF Hinge
20 848E17250 Rear Cover
21 101E23670 Right Side Cover (with doors)
22 848E11530 I/O Access Door
23 848E11540 Drum Maintenance Door
24 109R00736 Waste Tray
25 802E93880 Waste Tray Cover
26 113R00736 Maintenance Kit, Standard
– 604K53810 Maintenance Kit, Extended
27 109K02110 Scanner Calibration Page
28 050K68070 MPT Tray Arm (P/O PL 1.0 Item 1)
29 059K63590 MPT Pick Roller (P/O PL 1.0 Item
1)
