Media Source (Roll/Manual Feed)•
• Series (ANSI, ARCH, ISO, etc.)
• Status (Amount Remaining = Full, Low, Empty)
• Type/Thickness (Type = Bond, Vellum, Film) (Thickness = (Light, Ordinary, Heavy)
• Size Installed (currently loaded)

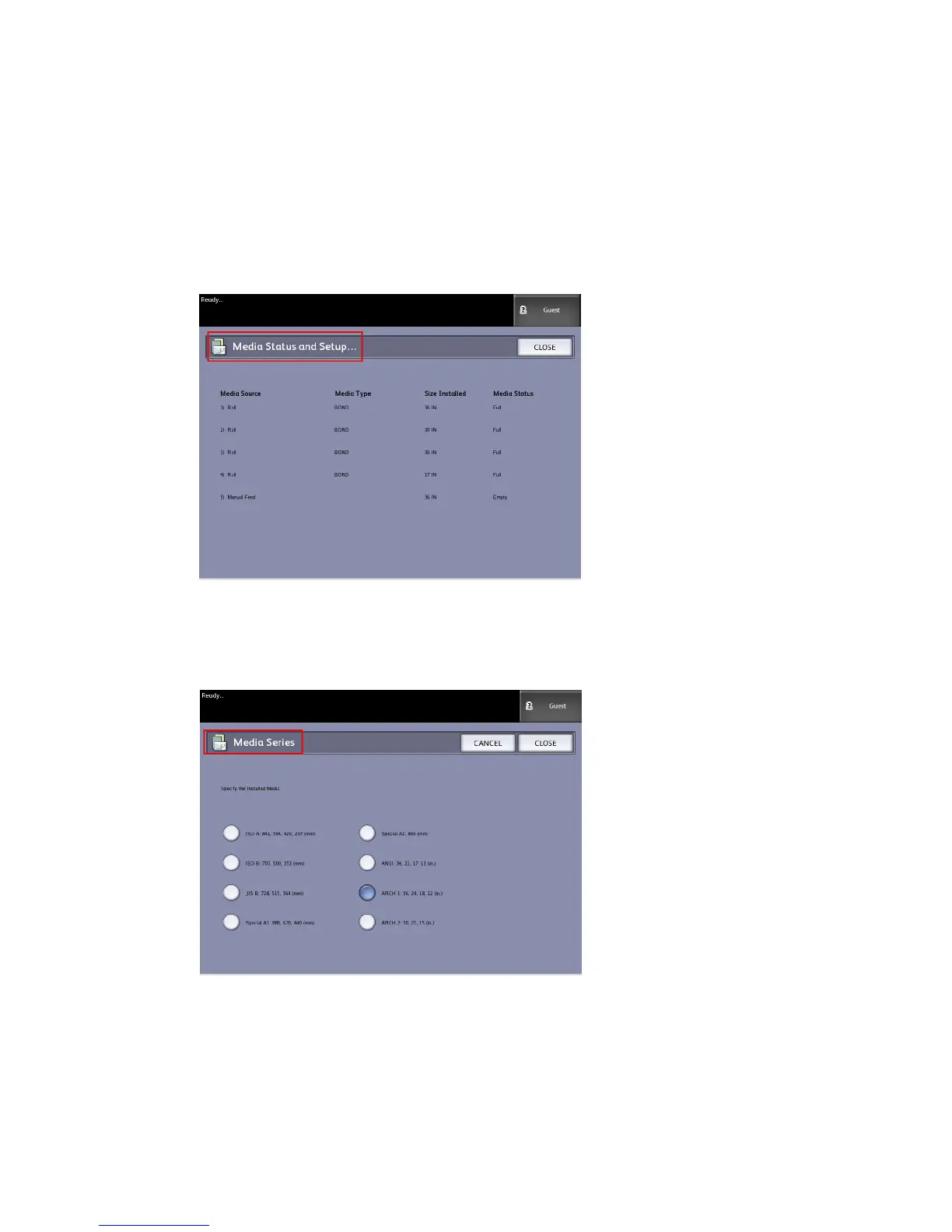

3. Select the Media Series corresponding with the Media Source you intend to use. The
following screen displays.
4. Select the specific installed Media that best defines the contents loaded.
5. Select Close to return to the Media Status and Setup... menu.
6. Select the Type/Thickness button to access the Media Type and Thickness options.
6-5
Xerox
®
Wide Format 6604/6605 Solution
™
User Guide
