Troubleshooting
222 WorkCentre 7500 Series Multifunction Printer
User Guide

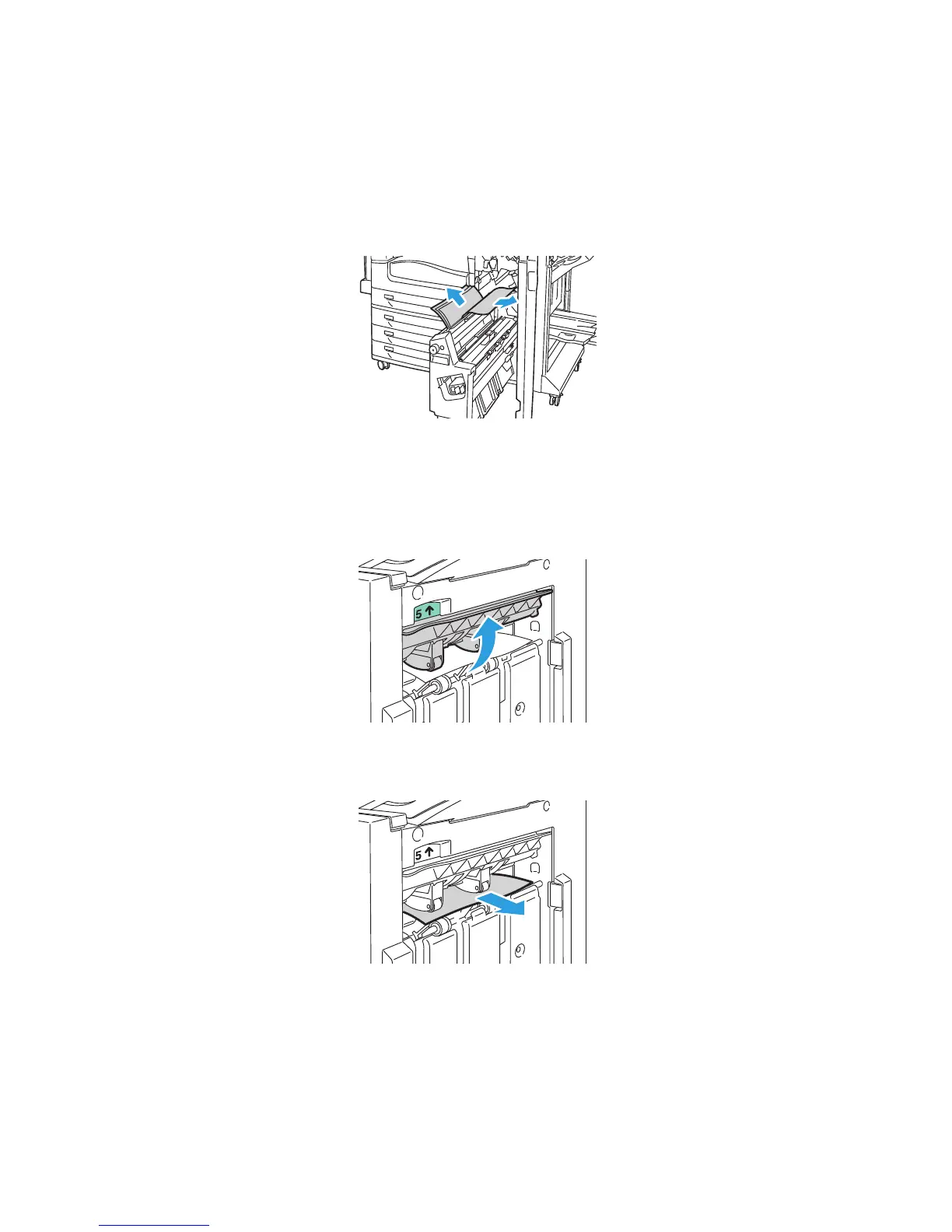

5. Turn green knob 4a in the direction shown to release the jammed paper.
6. Carefully remove the paper from the upper left side and from inside the unit.
Note: If the paper is torn, remove all torn pieces from the finisher.
7. Return unit 4 to its original position.
8. Return lever 4b to its original position.
9. Close the front door of the finisher.
Clearing Jams at 5 in the Finisher
1. Open finisher exit door 5 by lifting up at green label 5.
2. Remove the paper by pulling it in the direction shown.
Note: If the paper is torn, remove all torn pieces from the finisher.
3. Return exit cover 5 to its original position.
