Troubleshooting
216 WorkCentre 7500 Series Multifunction Printer
User Guide
Note: If the paper is torn, remove all torn pieces from the finisher.

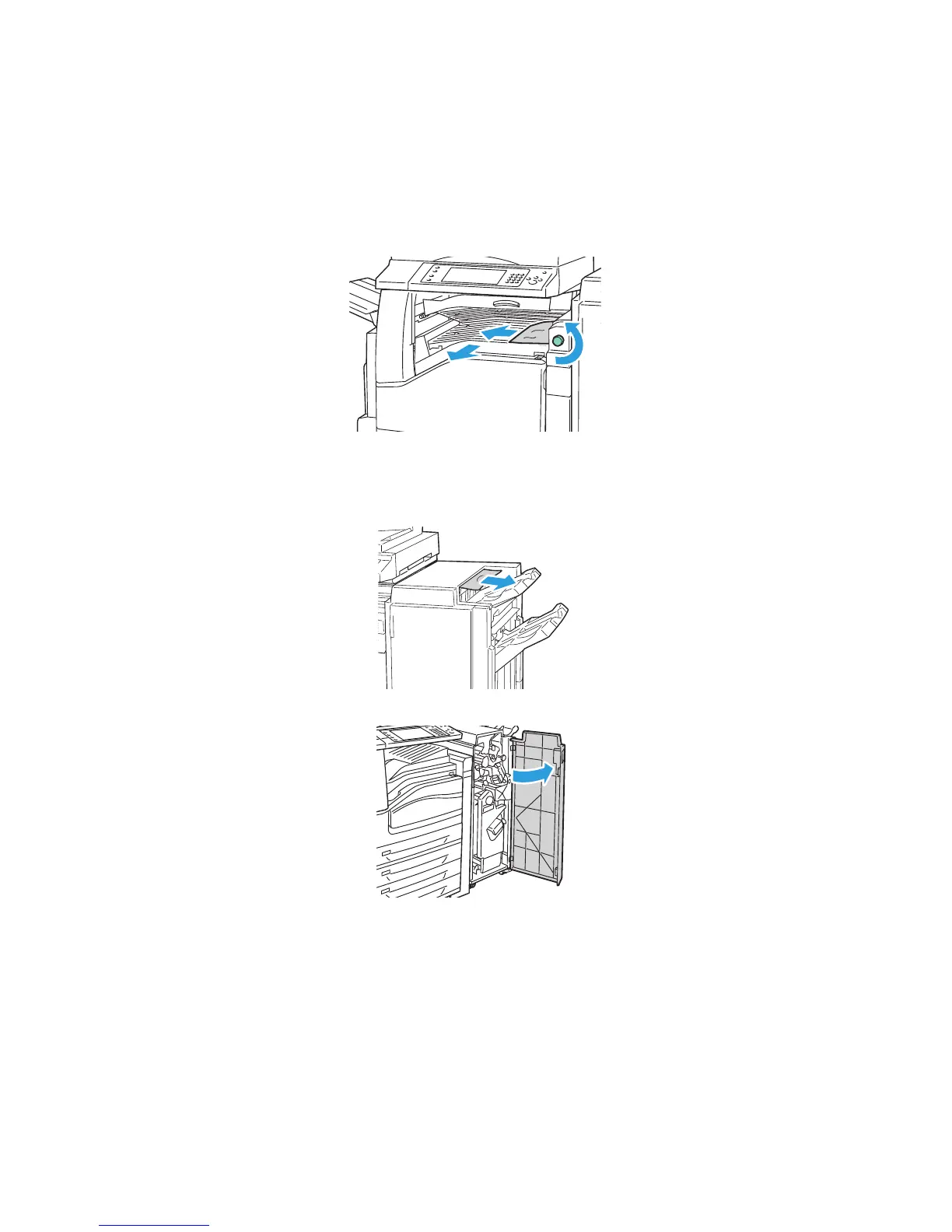

3. If no paper is visible, turn green knob 1 in the direction shown and carefully pull out the jammed
paper.
4. Close the finisher transport cover.
Clearing Jams at 2a in the Finisher
1. If the paper is visible at the output tray exit, remove the paper by pulling it in the direction shown.
2. Open the front door of the finisher.
