Band switch control opponents play a round of functional role of the various functions of Hand wheel, gear
change through the band switch, and switch accordingly
display icons

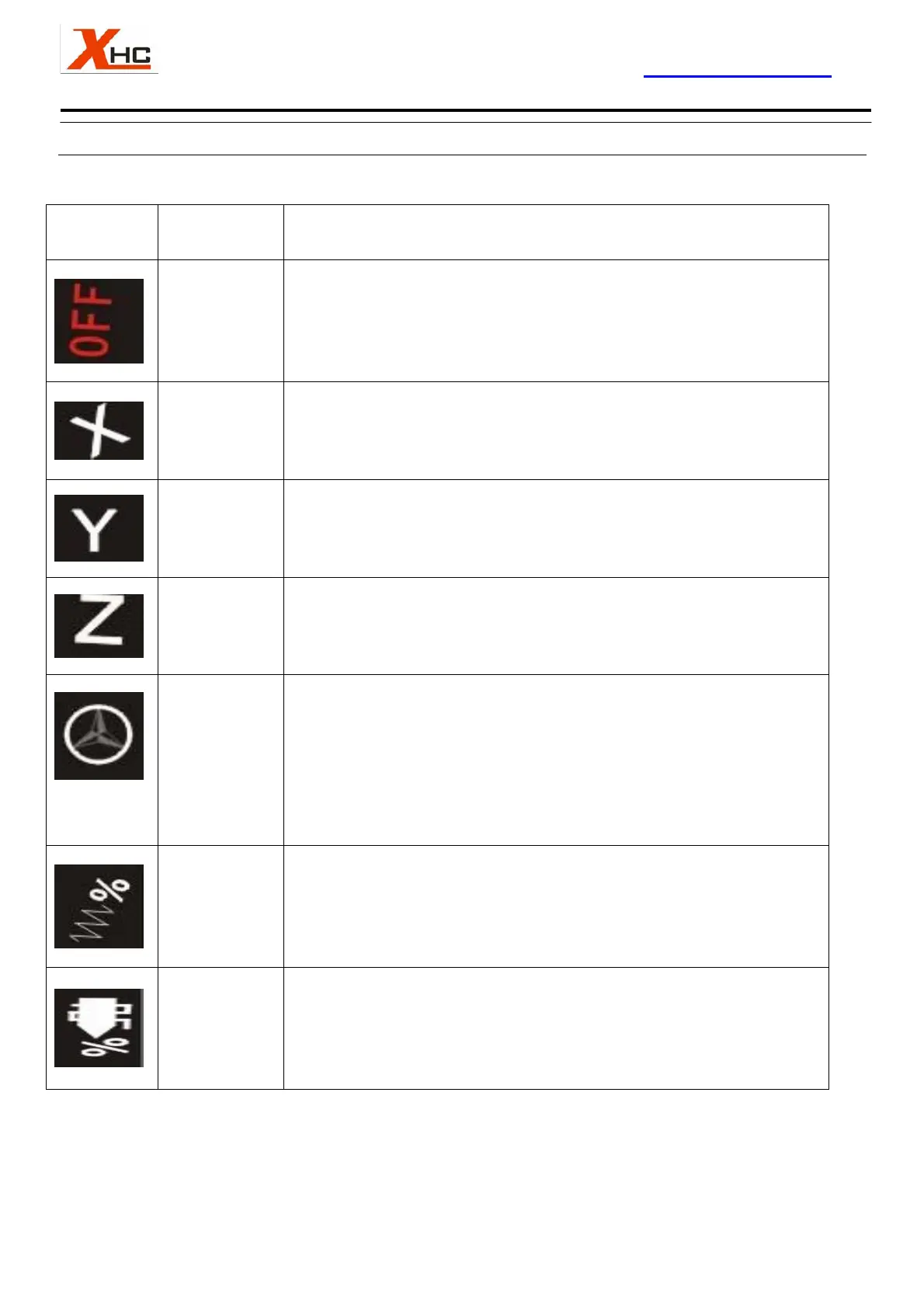

Icon name
Functional Description
OFF stalls
Off Hand wheel function, usually do not hand wheel, needs to be the band
switch is in OFF state to prevent false triggering round opponents and
saving power consumption and extend battery life
X-axis
When fine-tuning or manual adjustment of the time, shake the hand wheel
on the X axis motion control
Y-axis
When fine-tuning or manual adjustment of the time, shake the hand wheel
on the Y axis motion control
Z-axis
When fine-tuning or manual adjustment of the time, shake the hand wheel
on the Z axis motion control
Hand wheel
Lead
When the machine is in running state (corresponding to run on the LCD
screen flashing); shake the hand wheel to control the processing speed
and the suspension of operational control.
The machine is stopped state, and pause state, the Hand wheel Lead
does not work
Feed speed
control
When the feed speed control, LCD screen displays the default value of
the feed and the actual values, shaking the hand wheel can adjust the
feed speed control
the spindle
speed control
When the spindle speed control mode, LCD screen displays the default
value of spindle speed and the actual values, shaking the hand wheel to
control the speed of the spindle speed setting.
Description of the function LCD display icons
