Xiaomi M365 - Functional Schematic Diagram; Control Panel Functions; Electric Scooter Body Assembly; Vertical Tube and Handlebar Installation

03 04

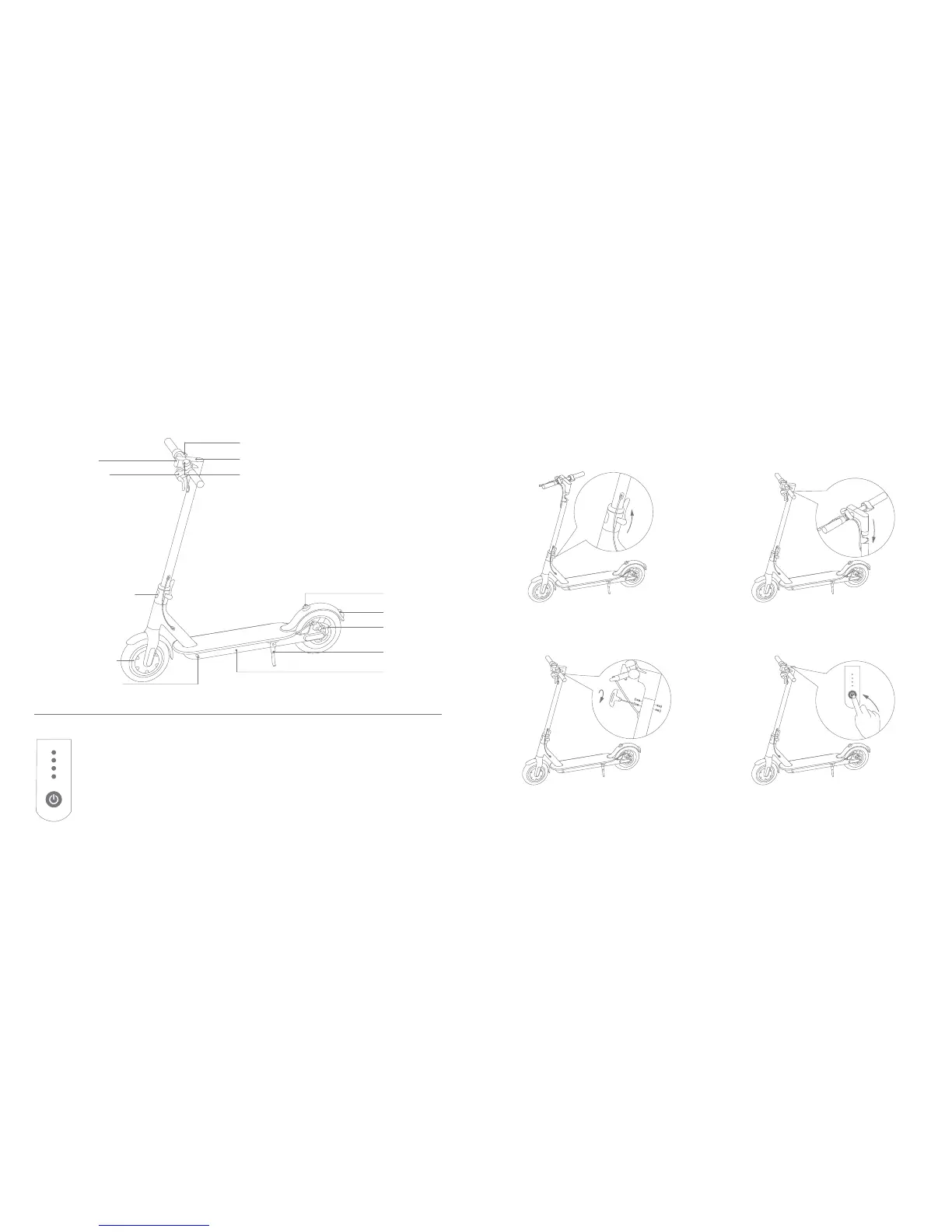

3. Electric scooter body assembly
3. Use the hexagon wrench in the packaging box
to lock the screws on both sides tightly
1. Fasten the vertical tube of scooter and open
the parking holder
4. Carry on switch testing after the
installation is finished
2. Install the horizontal handle on the
vertical tube
2. Functional schematic diagram
Battery
compartment
Disc brake
Brake light
Buckle
Handle-bar bell
Control panel
Accelerator
Parking
holder
Folding mechanism
In-wheel motor
Charging mouth
Head light
Brake handle
Mode
indicator:
Power
switch:
Power
indicator:
Control panel
the power indicator light at the bottom has two colors, white and green. The light is white when the scooter is working
under normal mode; the light is green when the scooter is under energy-saving mode. (Energy-saving mode: the maximum
speed is 18km/h, and the accelerator is more smoothly, which is suitable for beginner to get familiar with riding.)
under shutdown status, pressing the switch shortly can start the scooter, and long time pressing the switch for 2s and
more under power-on condition can close down the scooter. When the scooter is starting up, shortly press the switch
once: start up/shut down the driving light; shortly press the switch continuously for twice: shift in the normal mode and
energy-saving mode.
there are four power indicator lights on the control panel to show the power of the battery. The power indicator lights will
show the indicate status according to the sequence of normal light, flickering and quenching from up to down. When
four lights are all on normally, the power is about 100% ~ 86%; if there are 3 lights on normally and only 1 light is
flickering, the power is about 85% ~ 71%; and so forth, the flickering power indicator light will be quenching with the
consuming of power. When the power indicator light at the bottom is flickering, it means that the power will be used up
very soon, and please charge the electric scooter before using. When the power is used up, and the four lights are all
quenching, the scooter will glide through inertia until the scooter is stopped naturally.
