Wiring - Receiver

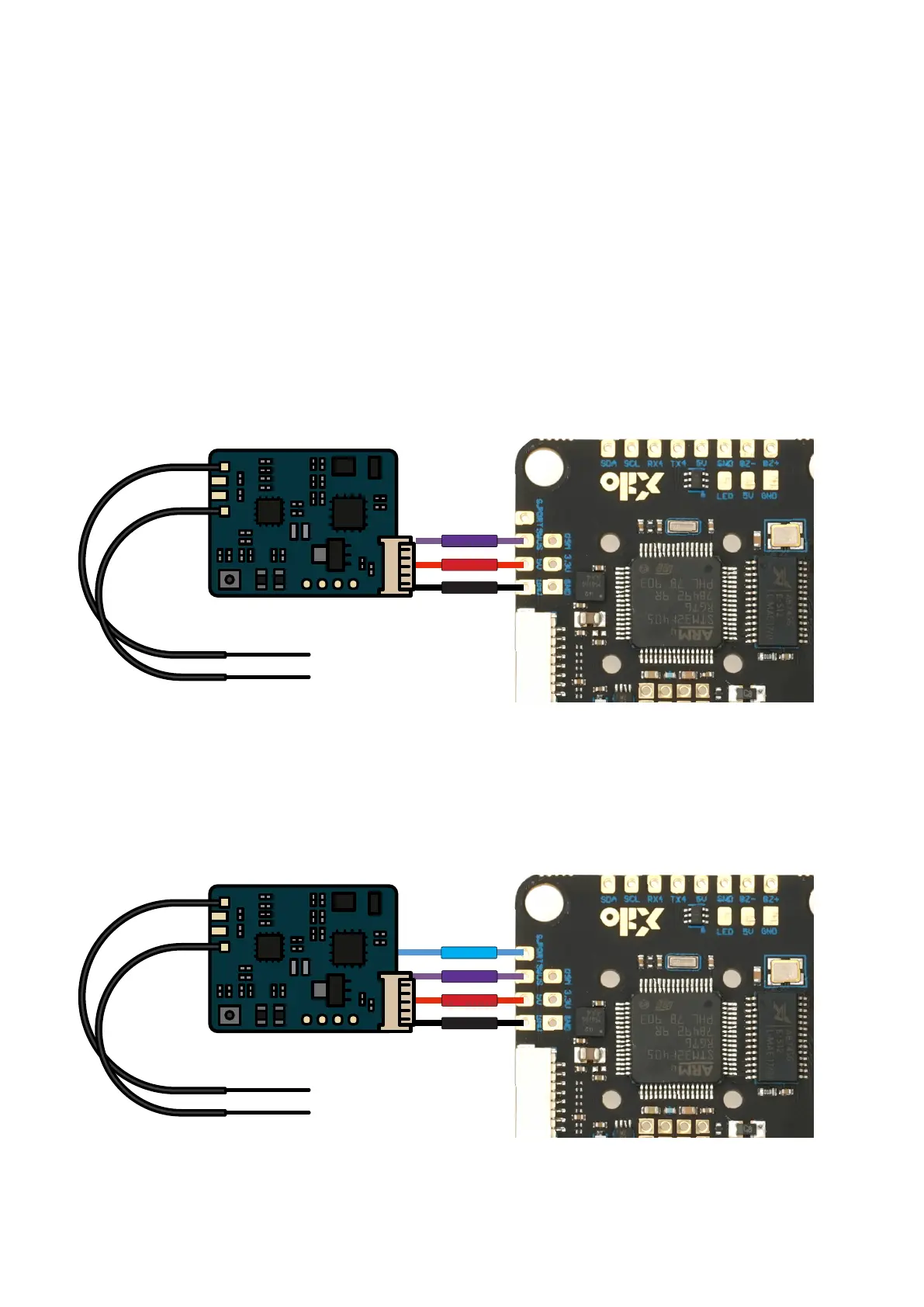

SBUS Receiver wiring:
SBUS + S.Port Receiver wiring:
The XIL
O FC supports these Receivers:
•
SBUS
•
SBUS+S.port
•
F
.port
•
DSM2 Receiver
•
Crossre
Thesereceiversarenotsupportedanymor
e,ifyouneed,withpatchedrmware,itcouldbeused:
•
Stand PWM receiver
•
PPM receiver
Initialize CLI:
SBUS
SBUS
5V
5V
GND
GND
S.port
2
4
