XILO Stax F4 User Manual

VTX Power Switch Setup
•
The XILO Stax flight controller features a power pad for your video transmitter that can be remotely controlled via a
switch setup in Betaflight. This allows you to remotely turn your VTX on or off from your radio! Simply solder your
VTXtothecorrespondingpadsontheStaxFC,(VTX,S/A,PWR,GND),thePWRpadwillprovideyourVTXwithltered

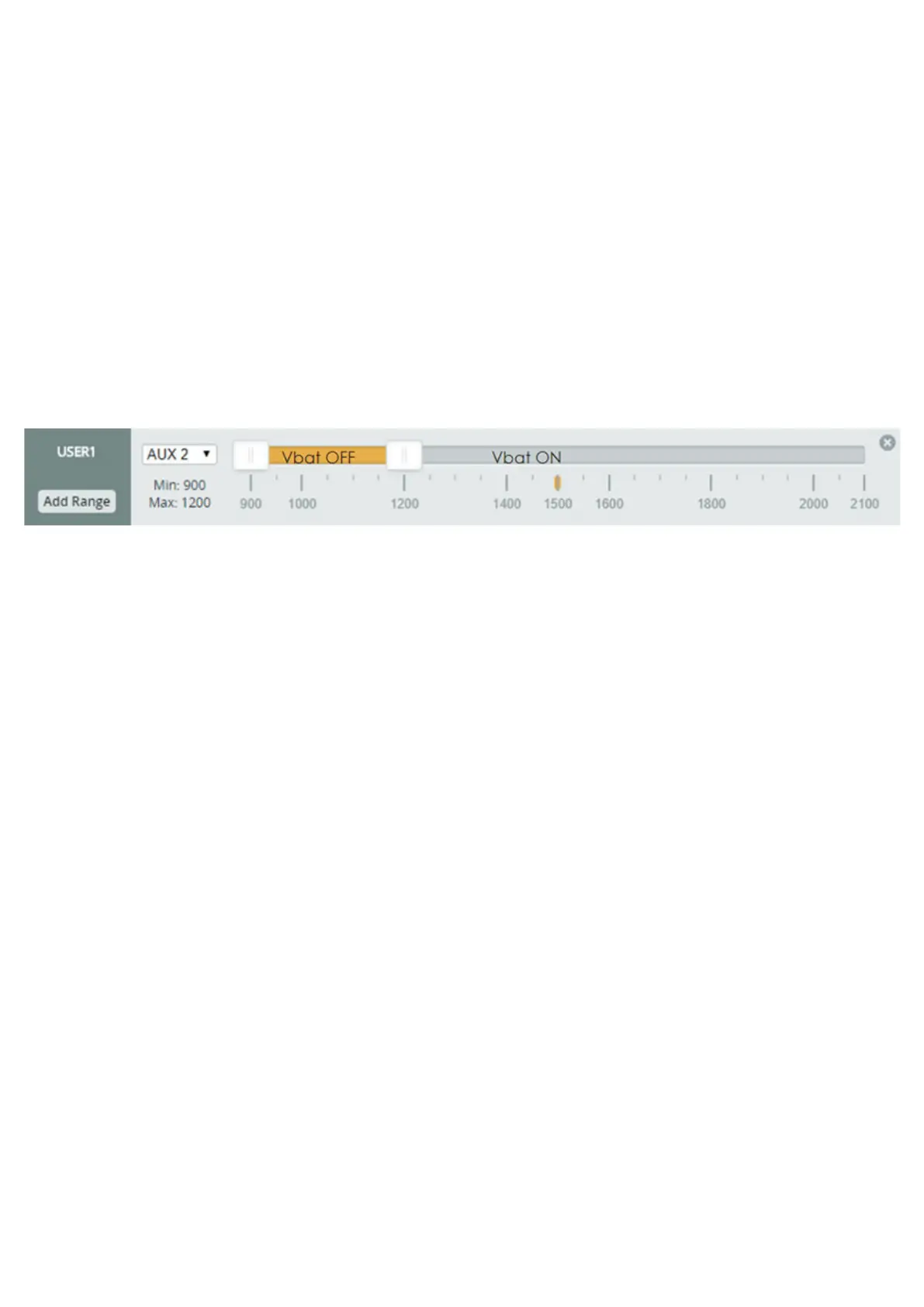

VBATT power. By default, the pad will be powered on. Go into Beta to set up a switch if you want to control power on/
offremotely.Youwillnditunderthe"Modes"taband"USER1"switch.AssignthistotheAUXswitchofyourchoiceto
turn the power on/off for that PWR pad. Easy!
VTX Power OFF VTX Power ON

XILO Stax F4 Specifications

General

Brand	XILO
Model	Stax F4
Category	Controller
Language	English
