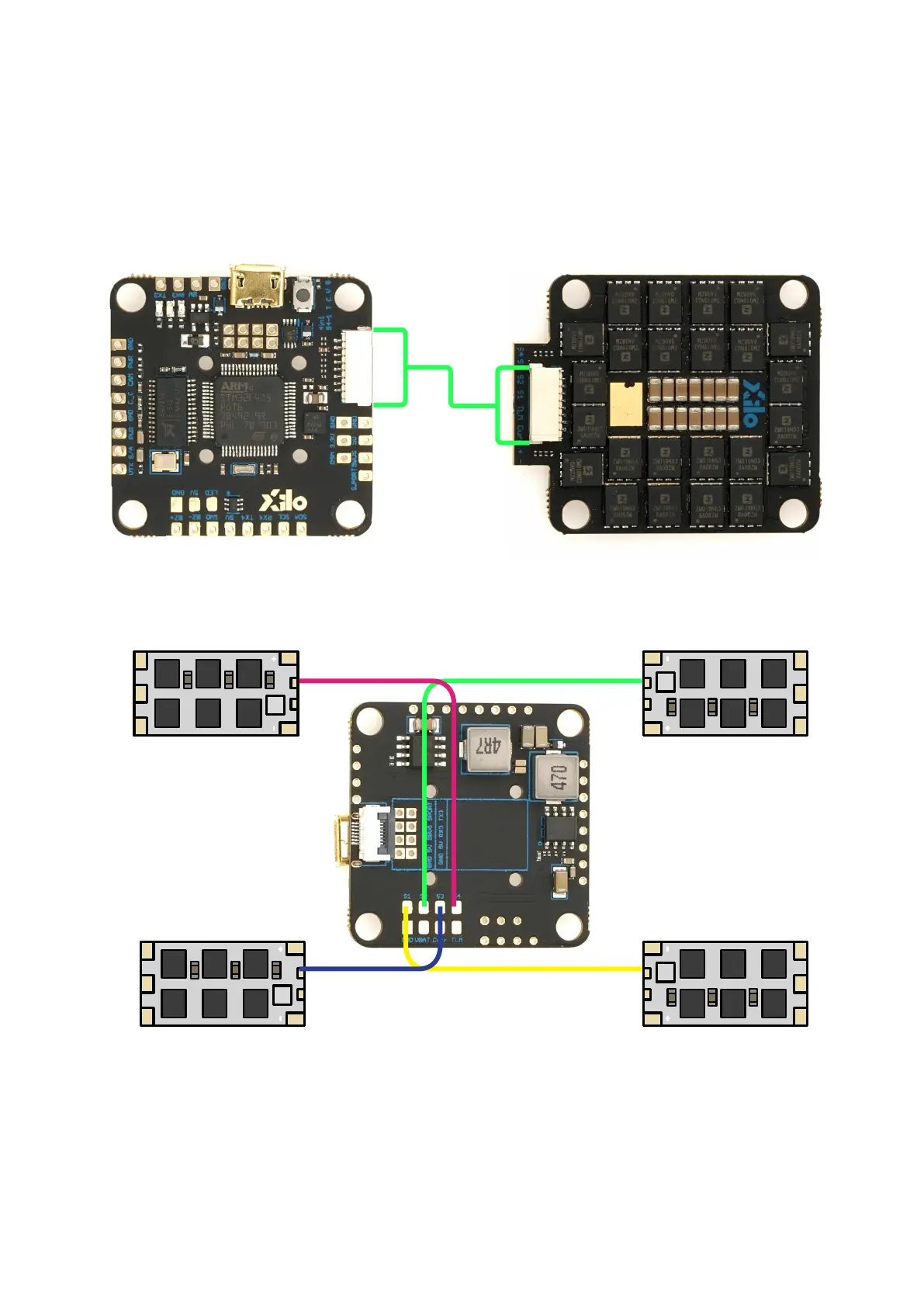

Wiring - ESC
4in1 ESC
Single ESC
•
The XIL
O 4in1 designed to support TLM(RPM/Voltage) and Current ADC, the Current Scale should be setted to 118
•
If the ESC supports TLM function, please connect all 4 ESC TLM wires together
, solder on the TLM pads
•
If you are using PDB with curr
ent sensor(analog ADC), connect to the Curr pad
5
7
Table of Contents
Resources
1
Layout / Pinmap
2
Wiring - Receiver
3
SBUS Receiver Wiring
3
SBUS + S.port Receiver Wiring
3
F.port Receiver Wiring
4
Dsm2
4
Crossfire
4
Wiring - Receiver Flat on the Back
5
Crossfire - Nano RX
5
Frsky XM+
5
Wiring - ESC
6
4In1 ESC
6
Single ESC
6
VTX Power Switch Setup
7
VTX Power off
7
VTX Power on
7
