Cable Installation

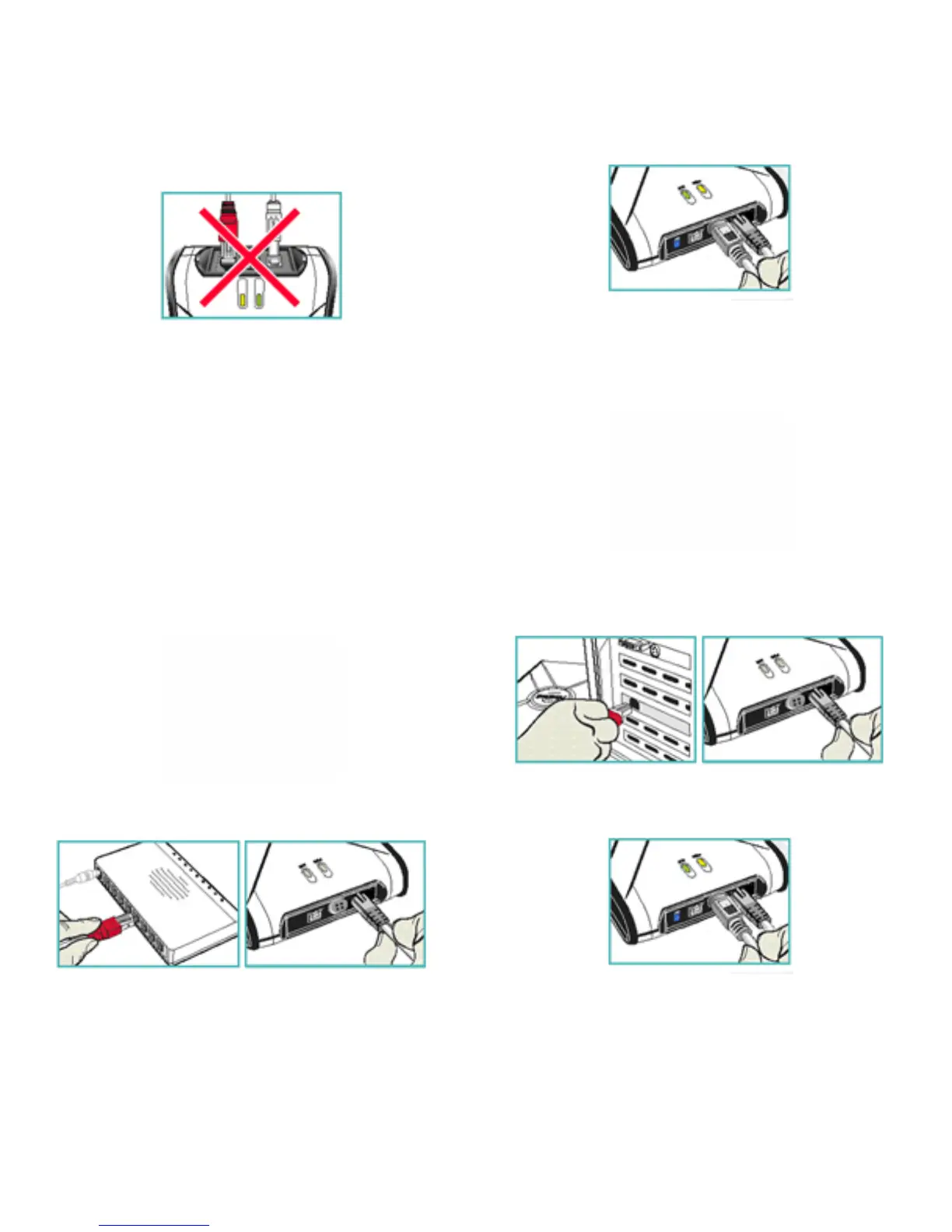

Warning
• Do not connect USB cable and Ethernet cable at the
same time.
• Newer NetDisk does not have dip switches on them.
However, NetDisk has the capability of automatically
recognizing NetDisk Mode without the dip switch.
In such case, please skip step 1 (dip switch setting)
from the NetDisk Cable Installation.
NetDisk Cable Installation
NDAS Mode
• Flip both dip switches down for NDAS Mode.
• Connect NetDisk to your switch (100 Base-TX) with
included Ethernet cable (straight through).
• For wireless users - Connect NetDisk to your
wireless router or access point with included Ethernet
cable.
• Make sure the power connector is connected firmly.
Ethernet Mode
• Flip both dip switches down for NDAS Mode.
• Connect NetDisk directly to your PC’s Ethernet port
using crossover cable (not included).
• Make sure the power connector is connected firmly.
