2. Module CP1W-CIF11 RS485:

OP Module CP1W-CIF11

9-pin D-type female port RS485 terminal

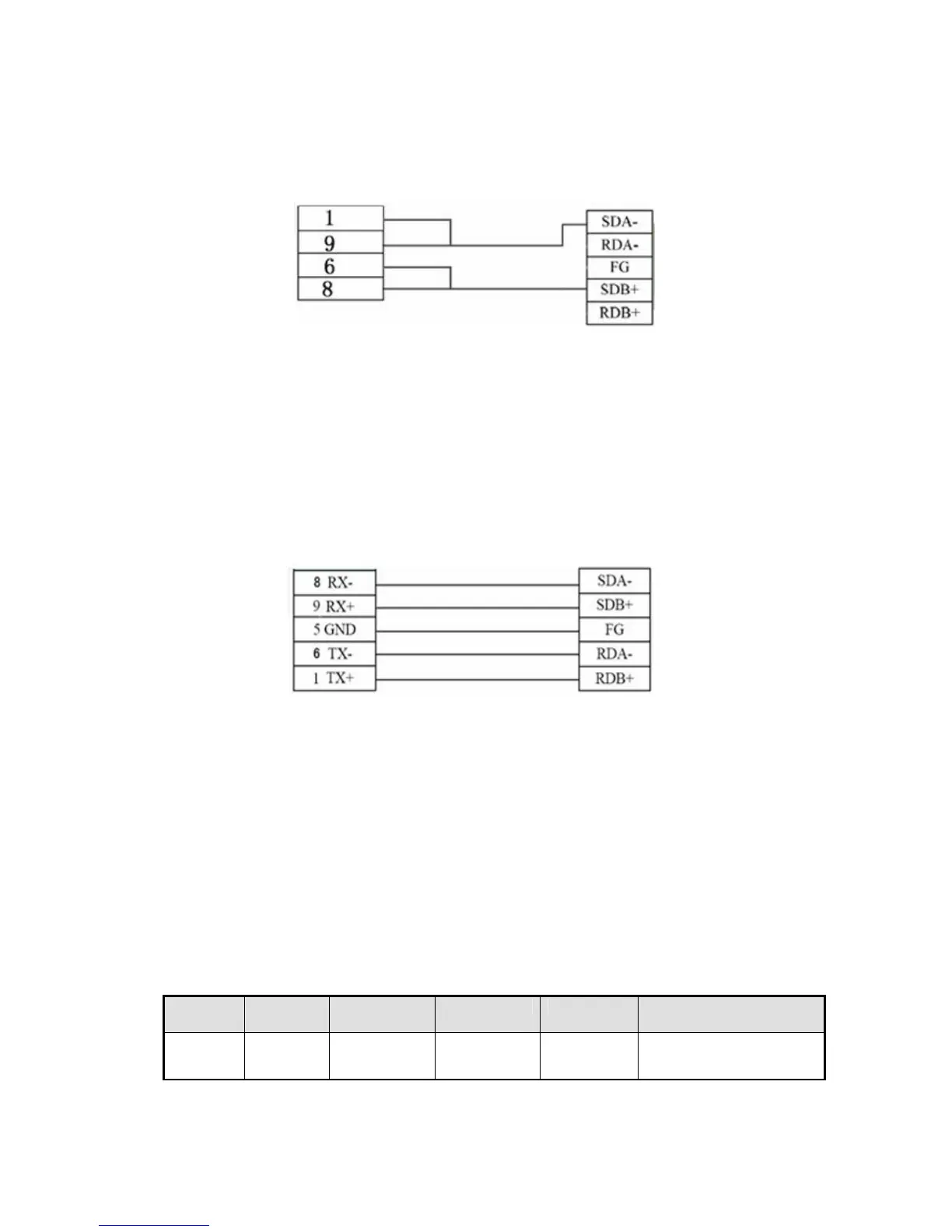

（Diagram 2— fit for OP320-A-S, OP320-S, OP330-S, OP325-S）

Note: For Omron module CP1W-CIF11, please turn OFF SW1; turn ON SW2, 3, 6; turn

ON or OFF SW4.

3. Module CP1W-CIF11 RS422:

OP Module CP1W-CIF11

9-pin D-type female port RS422 terminal

（Diagram 3— fit for: OP320, OP320-A, OP325, OP330）

Note: For Omron485 module CP1W-CIF11 RS422 connection, please turn OFF SW1~6.

3-5．Koyo S series PLC

3-5-1．Connection unit

OP can communicate with Koyo KOSTA-S series, Koyo Direct-Logic series PLC.

1. Koyo Kostac S series, SH\SM\SN PLC (direct connect to CPU)

Series

CPU

Connected

module

Port

Cable

Choose PLC type in

OP20

SH-48RS CPU

RS232

Diagram 2 Koyo S series
