Xinje TS Series User Manual

5

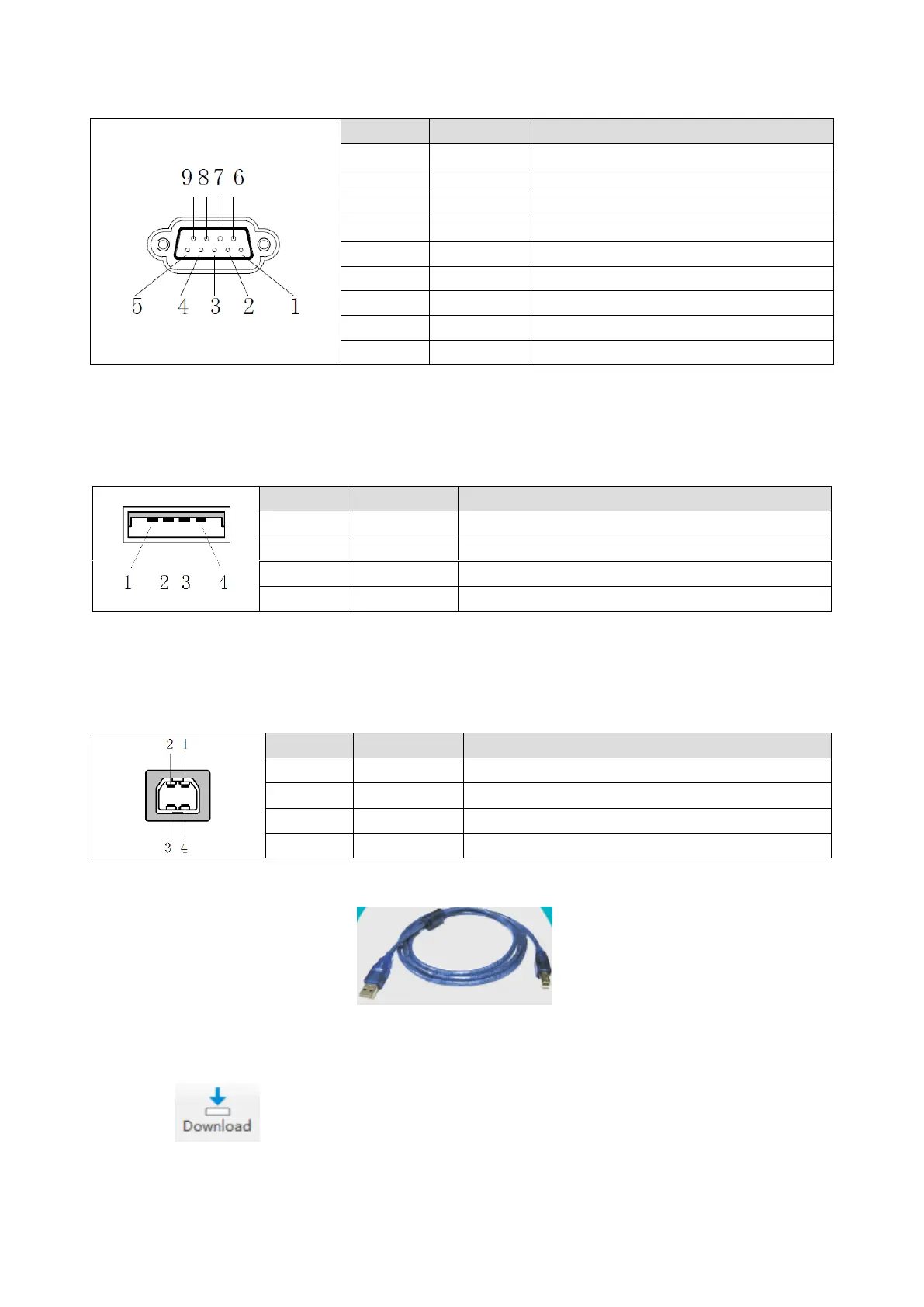

(2) COM2 port pins definition
Pin
Definition
Explanation
1
TD+
RS422 communication send +
2
RXD
RS232 communication receive data
3
TXD
RS232 communication send data
4
A
RS485 communication signal +
5
GND
Signal ground
6
TD-
RS422 communication send -
7
B
RS485 communication signal -
8
RDD-
RS422 communication receive -
9
RDD+
RS422 communication receive +
3. USB-A interface
TS3 series HMI is equipped with one USB-A (USB2.0 specification) port as standard, which has the following
functions: realize backup management, complete data import and export functions, and the transmission rate
reaches 480Mbps.
Pin
Definition
Explanation
1
+5V
+5V voltage signal
2
DATA+
Data + signal
3
DATA-
Data - signal
4
-5V
-5V voltage signal (ground signal)
4. USB-B port
TS3 series HMI has a USB-B (USB2.0 specification) port, which is located on the upper right side of the
reverse side, and realizes the following functions: data download function, and the transmission rate reaches
480Mbps.
Pin
Definition
Explanation
1
+5V
+5V voltage signal
2
DATA-
Data + signal
3
DATA+
Data - signal
4
GND
Signal ground
(1) Please use the shielded USB cable.
(2) The TouchWin Pro editing tool and USB drive must be correctly installed before using.
(3) After the drive is correctly installed, confirm that the computer is correctly connected to the TS3 series
HMI, click to download HMI program.
