2-4-2. Module installation
Installation steps

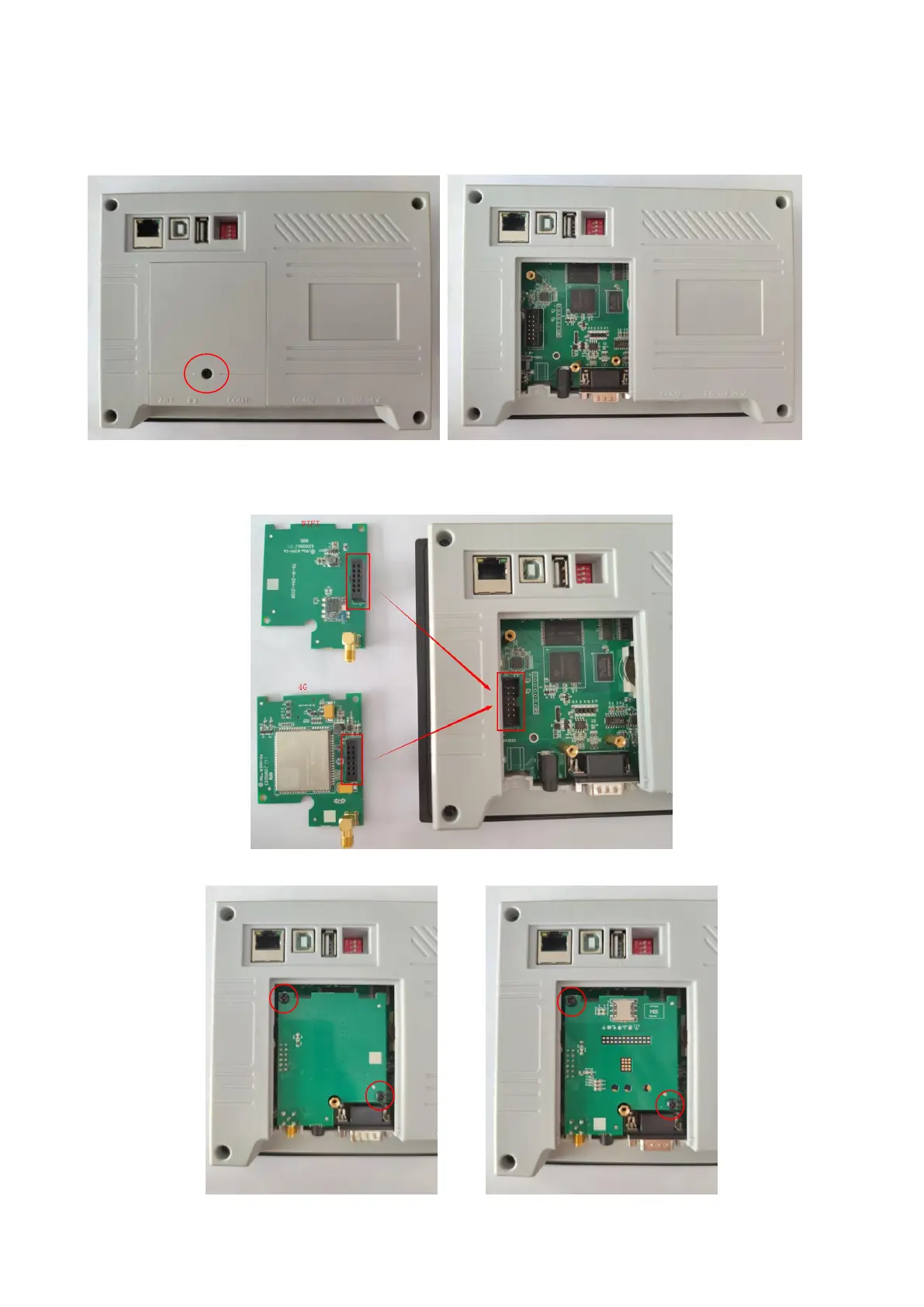

(1) Remove the module cover of TS5L series HMI
Before After
(2) Select the module to be installed, and insert the module into the HMI interface by aligning it with the
plug position
(3) Screw on the two fixing screws. The positions of the screws are shown in the figure below:
(WIFI module) (4G module)
