Xinje TS Series - Product Dimension and Installation; Product Dimension

7

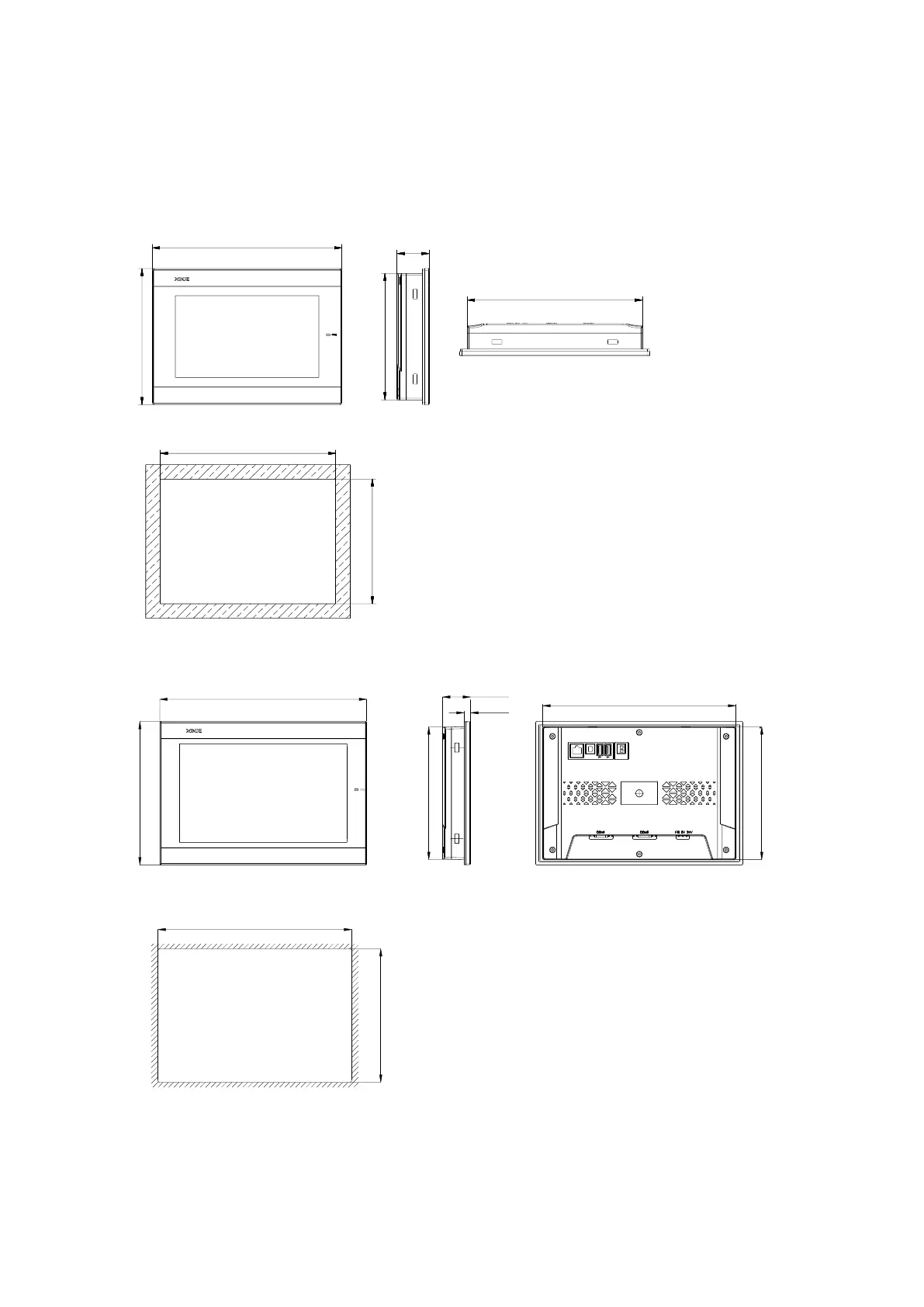

1-4. Product dimension and installation
1-4-1. Product dimension
◼ TS3-700 (unit: mm)
35
190.3
147
136.6
206
138.6±0.5
192.3±0.5
◼ TS3-1000 (unit: mm)
258.2
177.7
37.5
8.6
177.6
277.0
191.7
260.2±0.1
179.7±0.1
