Page 40
Avoid touching the glass of a new bulb.
Halogen bulbs are very sensitive to the oils
found in human skin. Touching the bulbs
may shorten their life. Pull the bulb straight
out from the socket without twisting. Hold
the bulb using a paper towel or other cloth
and gently press it straight into the socket.
The glass cover should be gently snapped
back into place.

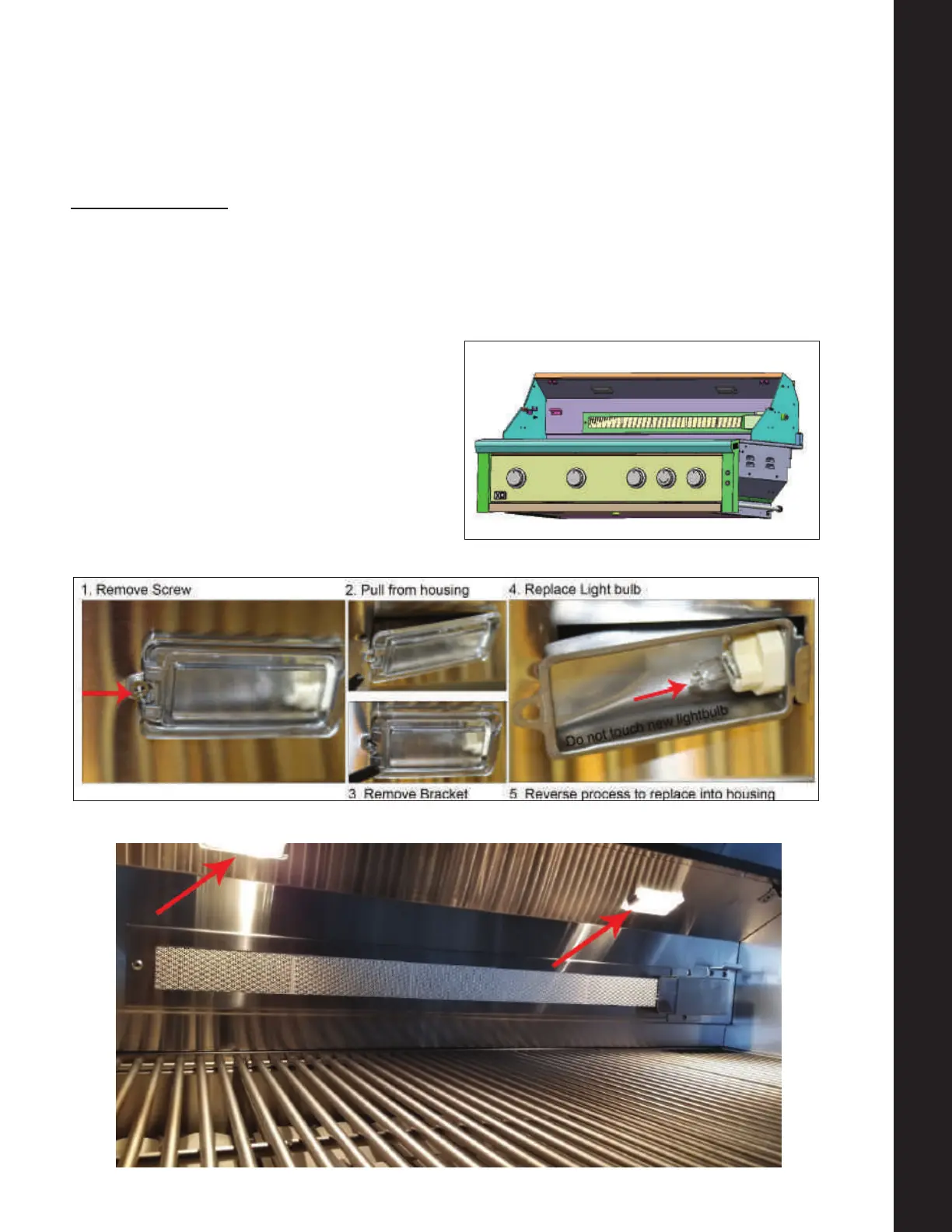

changing the light bulb
light bulb replacement
DO NOT TOUCH THE GLASS OF THE
NEW REPLACEMENT BULB.
Replace The Bulb
Replacement bulbs are halogen, 12 volt,
10W max, T3 type with a G4 bi-pin, and are
readily available at most stores. The glass
cover is held in place by two spring tension
tabs. The bulbs are easily removable without
the use of tools.
Simply grasp the glass lens at the outer
corners, near the front tension clips and push
the lens back.
Then, swing the lens down and pull it loose.
You may have to loosen the screw to remove
the lens.
