XPAND AE125H Secured Emitter System
XPAND 3D IR emitter system generates the encryption signal and the IR signal
that synchronizes XPAND 3D IR glasses with digital projector.
The system consists of:
» 1x IR Secured Emitter (AE125H)
» 1x 3D-VESA to BNC sync cable (CAB-01-0301)
» 1x 24VDC power adapter + 4x interchangeable plug (EU, US, UK, AU)
» 1x User manual
» 1x Warranty sheet

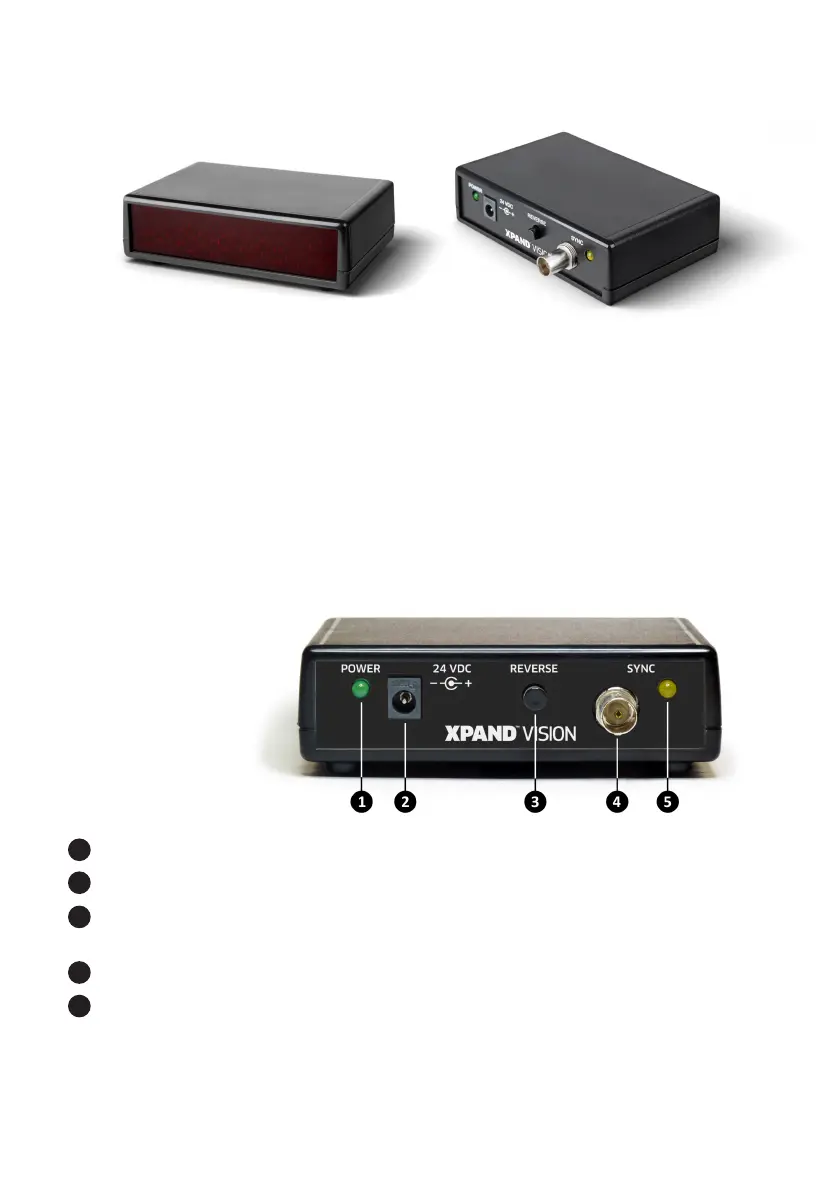

Emitter Overview
Power LED: Green color. Represents the power LED. When lit power is ON.
Power Connector: 24VDC
» Reverse Push-button: IR sync signal can be reversed with suppressed push-
button.
Sync Connector: BNC synchronization signal connector input.
» Sync LED: Yellow color. When OFF there is no sync signal present. When sync
signal is present LED will be ON and it will blink according to sync signal
frequency.
