Xray GTX8 User Manual

32
903308
SFH M3x8
GTXE

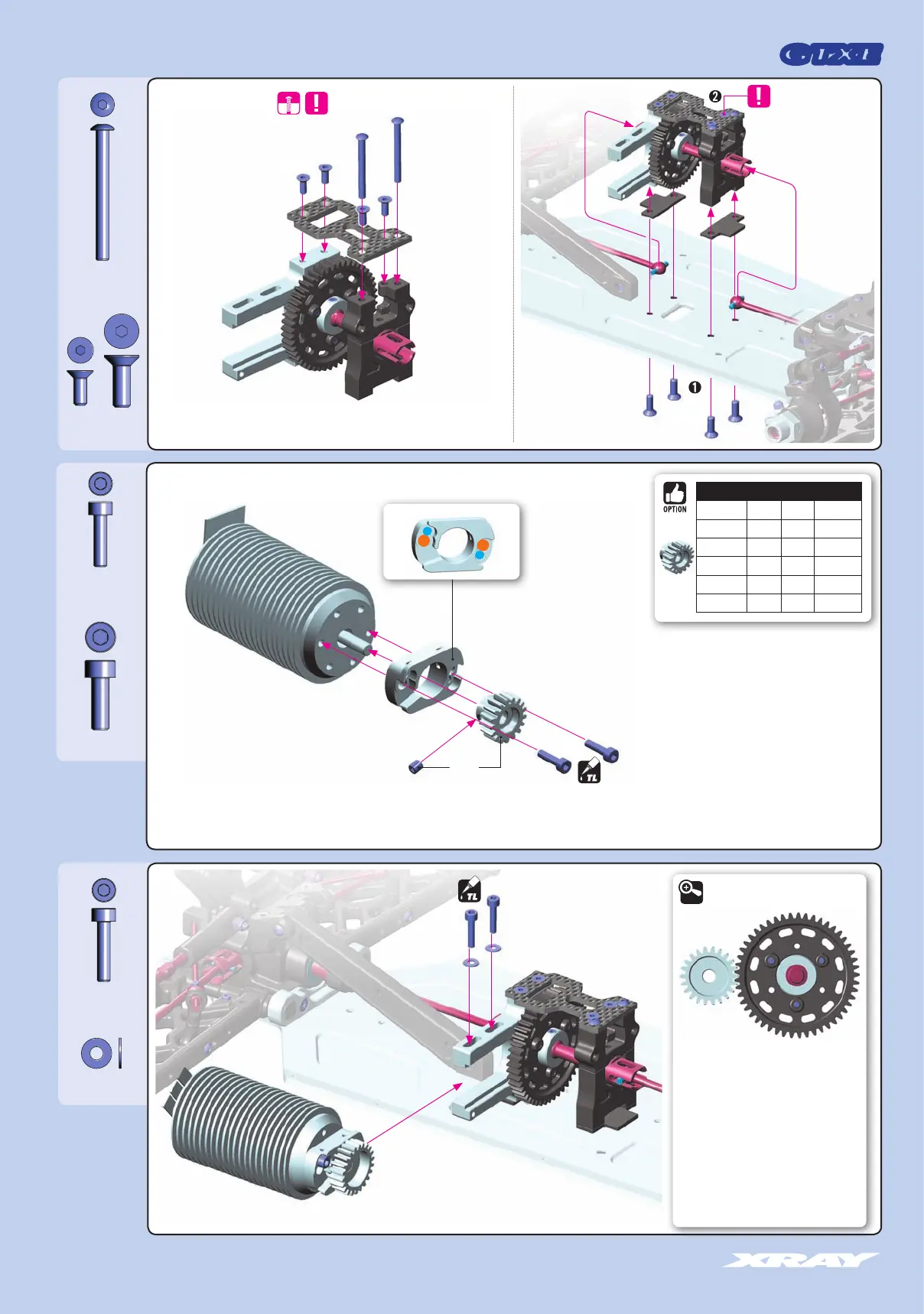

8. CENTER SOLID SHAFT & MOTOR
ALL SCREW TIGHTEN GENTLY
ALL SCREW FULLY
TIGHTEN
GEAR MESH ADJUSTMENT
DETAIL
908312
SCH M3x12
908412
SCH M4x12
Pinion
19T ~ 24T (NOT INCLUDED)
XRAY PINION GEAR
#355819 19T ALU OPTION
#355820 20T ALU OPTION
#355821 21T ALU OPTION
#355822 22T ALU OPTION
#355823 23T ALU OPTION
#355824 24T ALU OPTION
M4
M4
M3
M3
Adjust gear mesh so there is minimal play
between the gears.
TOO TIGHT gear mesh will put excessive strain
on all parts and damage the parts.
TOO LOOSE gear mesh may result in stripped
gears.
Use M3 or M4 screws which fit your motor.
(M4 INITIAL SETTING)
902330
SH M3x30
903412
SFH M4x12
3x8mm
4x12mm
908314
SCH M3x14
961032
S 3.2

Xray GTX8 Specifications

General

Width	300mm
Weight	~2080g
Drive Type	4WD
Chassis Material	Aluminum
Terrain	Off-Road
Remote Control Frequency	2.4GHz
Body Material	Polycarbonate
Tire Material	Rubber
Class	Off-road
