Xray GTX8 User Manual

34
GTX8
7x10x0.2 / 0.3 / 0.5
Use appropriate shims to achieve proper
clutchbell endplay
All screws
NOTE ORIENTATION
IMPORTANT!
When installing the engine, first check that the drive shaft does not
touch the engine. If it does, remove some material from the engine
mount as shown to make some room between engine and shaft.
908312
SCH M3x12
964073
S 7x10x0.2
964074
S 7x10x0.3
964075
S 7x10x0.5

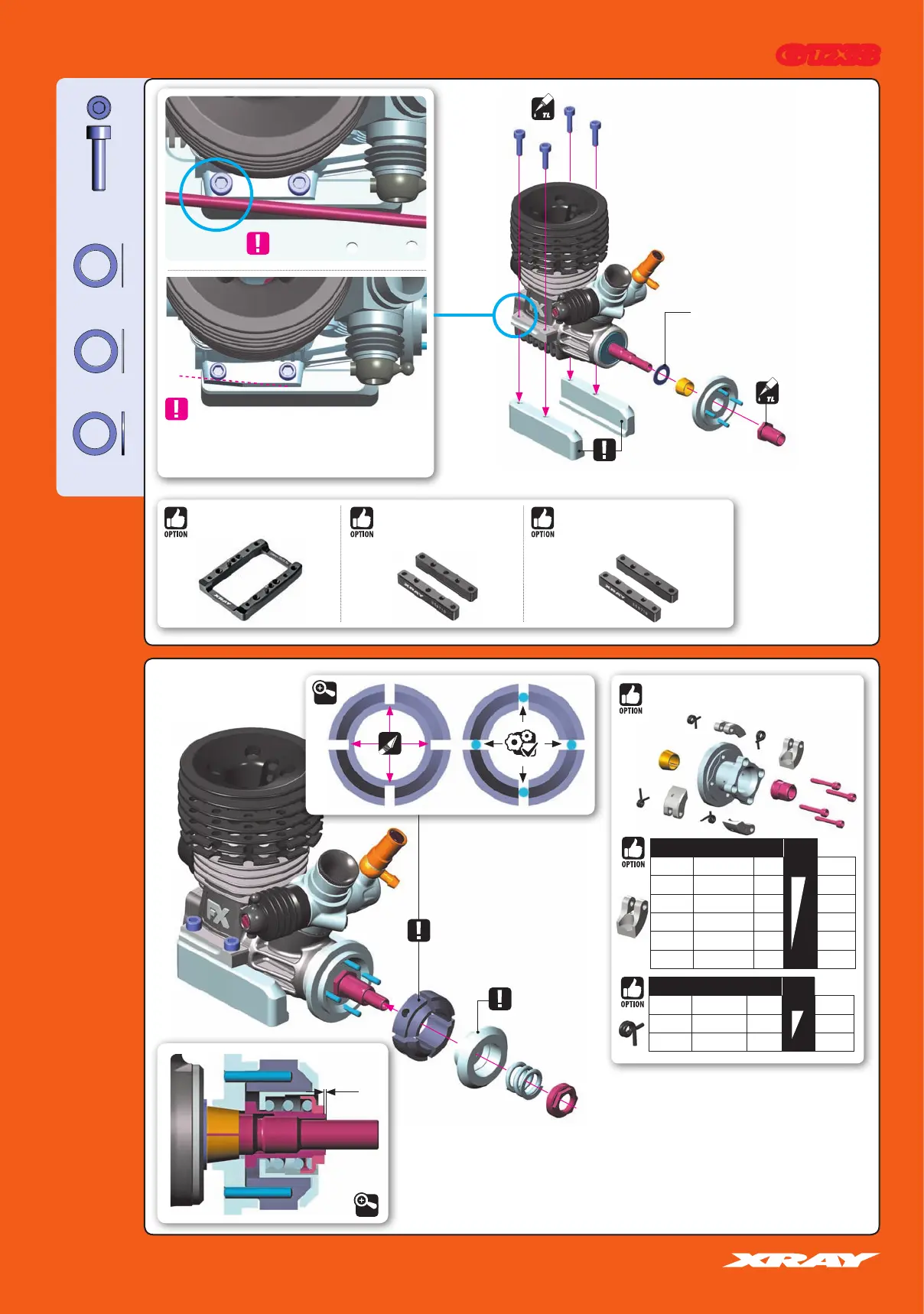

9. FUEL TANK & ENGINE
NOTE ORIENTATION
NOTE ORIENTATION
0mm
DETAIL
DETAIL
Cut
#358709
ALU MONOBLOCK ENGINE MOUNT
#358718
ALU STAND FOR ENGINE MOUNT
(FX, NOVAROSSI, MAX, SIRIO)
#358719
ALU STAND FOR ENGINE MOUNT
(PICCO, REDS, ORION, LRP, OS, U. RACING)
4-SHOE CLUTCH SHOES GRIP
#358457 ALU HARD (4) 1.00g OPTION
#358458 ALU MED (4) 1.00g OPTION
#358461 GRAPHITE (4) 1.00g OPTION
#358458 SOFT (4) 1.15g OPTION
#358459 MEDIUM (4) 1.15g OPTION
#358460 HARD (4) 1.15g OPTION
HIGH
LOW
#358400
XRAY COMPLETE 4-SHOE CLUTCH SET
CLUTCH SPRINGS (4pcs) RPM
#358480 SOFT GOLD OPTION
#358481 MEDIUM GREY OPTION
#358482 HARD SILVER OPTION
EARLY
LATE
