35
GEARING
GEAR MESH ADJ.
CLUTCH SPRINGS
CLUTCH SHOE
911410
SHF M4x10
THREAD LOCK
all screws
Adjust gear mesh so there is minimal
play between the gears.
Too tight gear mesh will put excessive
strain on all parts and damage the
parts. Too loose gear mesh may result
in stripped gears.
GTX8

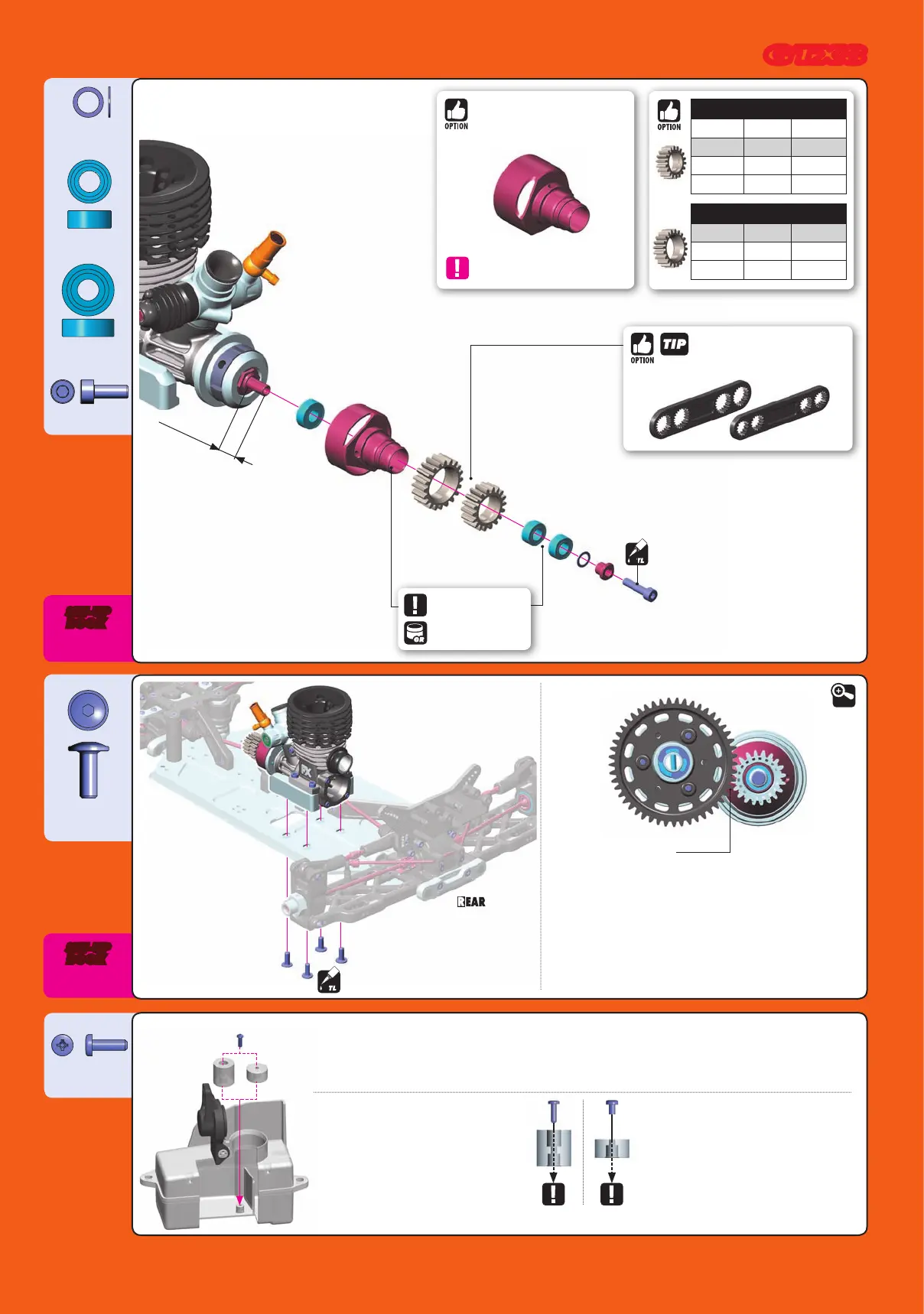

9. FUEL TANK & ENGINE
NOTE: The fuel tank insert can be easily mounted to the bottom of the fuel tank using the provided screw, when the fuel tank cap is opened fully.
2cc
NOTE ORIENTATIONNOTE ORIENTATION
1cc
Tube holders are easily connected to the fuel tank by screws. Using screws is much more secure than using glue to attach the holders to the fuel tank.
The larger insert decreases the fuel tank volume by 2cc,
and is recommended for use when the fuel filter is used.
The smaller insert decreases the fuel tank volume by 1cc.
1CC FUEL TANK INSERT2CC FUEL TANK INSERT
The fuel tank has the larger fuel volume and includes OPTIONAL tank inserts for decreasing the volume of the tank. Using the inserts allows
you to adjust the volume of fuel inside the tank; this works in conjunction with variables such as fuel filter capacity and/or length of fuel line to
ensure you have the legal fuel volume limit for racing.
5x12x4mm
5x10x4mm
5x7x0.2mm
16T
19T
908314
SCH M3x14
359050
BB 5x10x4
359051
BB 5x12x4
338584
S 5x7x0.2
These bearings must still
be regularly serviced and
replaced when worn out.
DETAIL
GEAR MESH
907258
SP 2.5x8
BOOK
SET-UP
BOOK
SET-UP
10~10.2mm
1ST PINION GEAR XCA HARD COATED
#348515 15T OPTION
#348516 16T INCLUDED
#348517 17T OPTION
#348518 18T OPTION
2ST PINION GEAR XCA HARD COATED
#348519 19T INCLUDED
#348520 20T OPTION
#348521 21T OPTION
TO TIGHTEN THE 16T OR 19T PINION GEAR
USE THE OPTIONAL #349901 XRAY PINION
TOOL (19~21T / 16~18T).
#358511
GT 2-SPEED 4-SHOE CLUTCH BELL -
LIGHTWEIGHT
Optional part for #358400
XRAY COMPLETE 4-SHOE CLUTCH SET
