Xray GTX8 User Manual

37
BAG
10

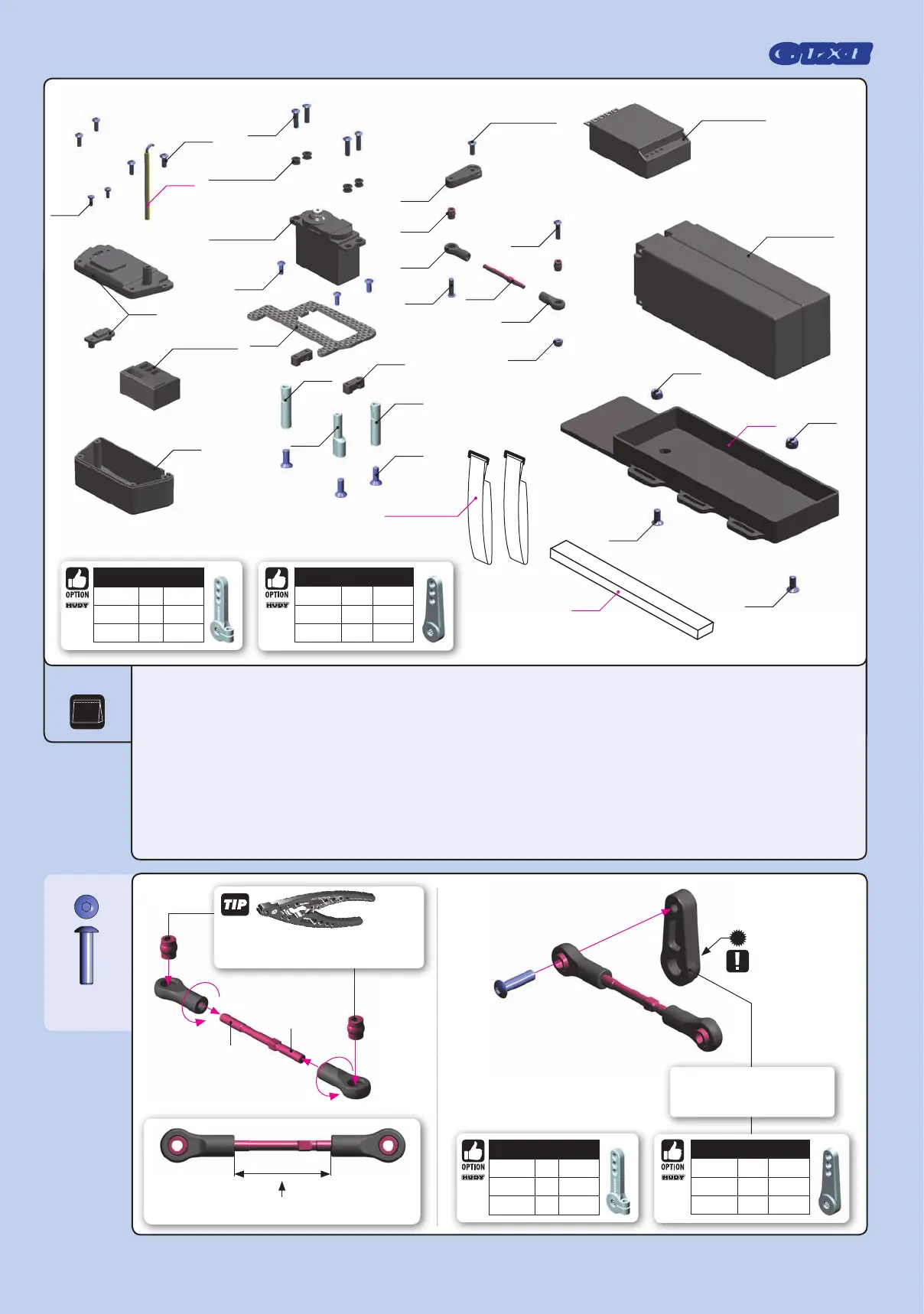

10. RADIO CASE
902312
SH M3x12
302610 ADJ. TURNBUCKLE L/R 40 MM - HUDY SPRING STEEL (2)
336000 COMPOSITE RECEIVER CASE - V2
336060 RECEIVER SWITCH - SET (OPTION)
352460 PIVOT BALL 5.8 (10)
352670 SERVO BALL JOINT 5.8MM (4)
356119 GRAPHITE RECEIVER CASE TOP PLATE
356120 STEERING SERVO MOUNT - SET
356194 ALU MOUNT FOR RECEIVER BOX
356197 ALU ECCENTRIC MOUNT FOR RECEIVER BOX
356200 BRAKE/THROTTLE ARMS & STEERING SERVO ARMS - SET
389135 CONNECTING CABLE RECEIVER/BATT. PACK (OPTION)
902308 HEX SCREW SH M3x8 (10)
902312 HEX SCREW SH M3x12 (10)
902314 HEX SCREW SH M3x14 (10)
903410 HEX SCREW SFH M4x10 (10)
903412 HEX SCREW SFH M4x12 (10)
907206 SCREW PHILLIPS 2x6 (10)
960030 NUT M3 (10)
960040 NUT M4 (10)
306310 ANTENNA TUBE (2)
356152 COMPOSITE BATTERY PLATE
356160 VELCRO BATTERY STRAP 20x300MM (2)
NOTE
ORIENTATION
Use appropriate servo arm:
K - (23T) H - (24T) F - (25T)
356200
356120
356194
356194
903412
Receiver
(NOT INCLUDED)
336000
336000
902308
306310
Speed Controller
(NOT INCLUDED)
Servo Screw
(NOT INCLUDED)
LiPo Battery Pack
(NOT INCLUDED)
356152
960040
960040
907206
903410
903410
902312
Servo Grommet
(NOT INCLUDED)
Steering Servo
(NOT INCLUDED)
902308
356119
352460
352670
902312
302610
352670
960030
356160
902314
LEFT THREAD RIGHT THREAD
The length of the linkages varies according to the type of servo.
approx. 24mm
LEFT
THREAD
RIGHT
THREAD
356152
356197
Velcro Battery Strap
CLAMP ALU SERVO HORNS
#293407 23T OPTION
#293408 24T OPTION
#293409 25T OPTION
ALU SERVO HORNS
#293501 23T OPTION
#293502 24T OPTION
#293503 25T OPTION
CLAMP ALU SERVO HORNS
#293407 23T OPTION
#293408 24T OPTION
#293409 25T OPTION
ALU SERVO HORNS
#293501 23T OPTION
#293502 24T OPTION
#293503 25T OPTION
Install the all pivot balls with Professional
Multi Tool (HUDY #183011)
GTXE

Xray GTX8 Specifications

General

Width	300mm
Weight	~2080g
Drive Type	4WD
Chassis Material	Aluminum
Terrain	Off-Road
Remote Control Frequency	2.4GHz
Body Material	Polycarbonate
Tire Material	Rubber
Class	Off-road
