Before cutting and making holes on the body, put the unpainted body on the chassis to confirm the
mounting position and location for holes and cutouts.
Before painting, wash the inside of the body with mild detergent, and then rinse and dry thoroughly.
Mask all windows.
Apply paint masks as appropriate.
➊
➋
➌
Paint the body using paints formulated for polycarbonate bodies.
When the paint is dry, remove the masking.
Carefully cut out the body using appropriate scissors or cutting tools.
When you have finished cutting, peel off the external protective films.
➎
➏
➐
➑

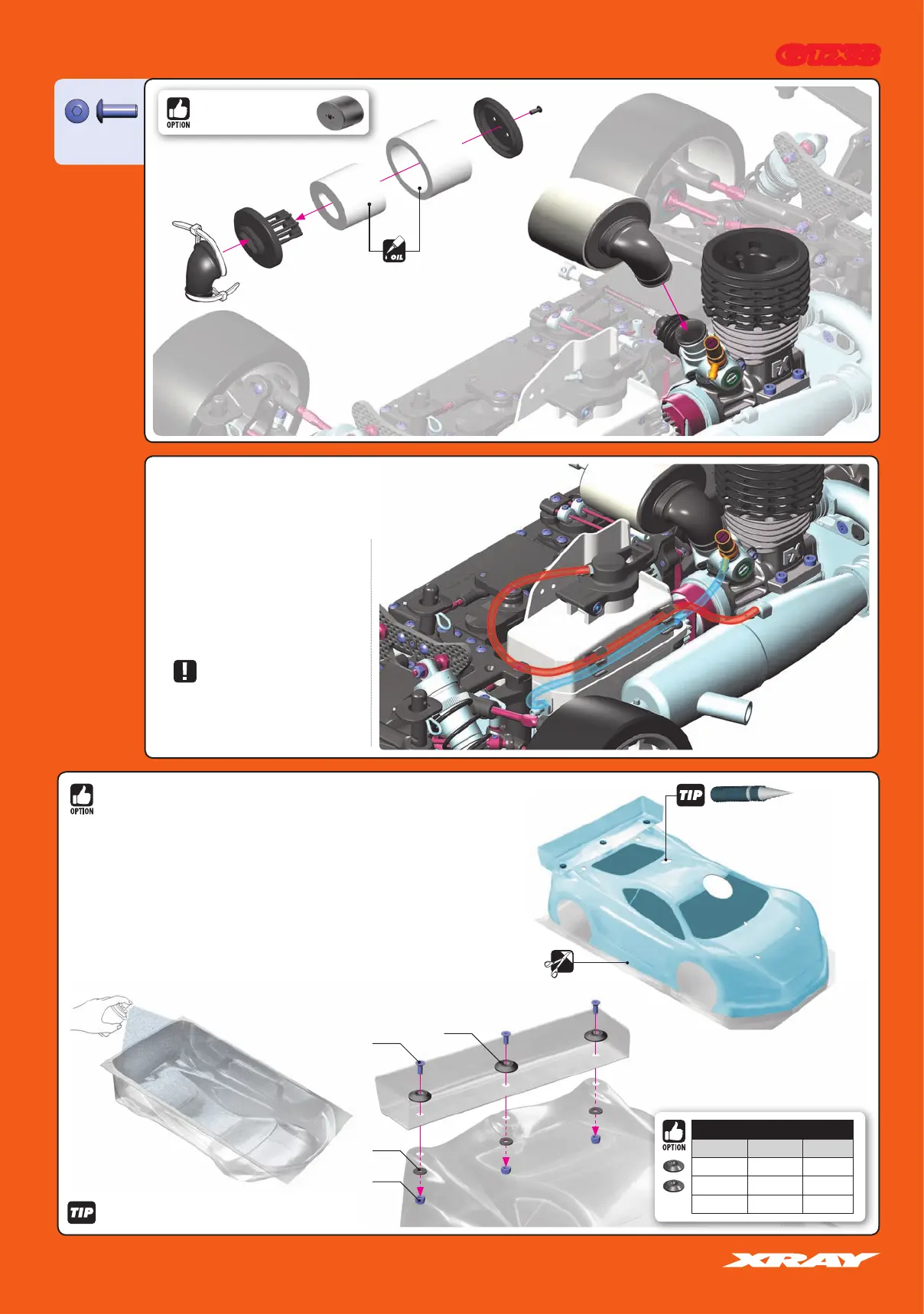

12. FINAL ASSEMBLY
Cut the silicone tube depending on engine and muffler. Use the plastic clips to hold the tubes together.
SILICONE TUBE MARKED AS
BLUE = FROM FUEL TANK TO CARBURETOR
SILICONE TUBE MARKED AS
RED = FROM MUFFLER TO FUEL TANK (TOP)
Keep fuel line away from
clutchbell and flywheel.
902308
SH M3x8
Apply #106240 HUDY air filter oil
and follow the engine instructions
to service the air filter.
#358832
AIR FILTER RAIN COVER
#359730 GTX BODY (NOT INCLUDED)
Use Body Reamer (HUDY #107600)
for all holes.
To reinforce the body or to fix broken
body use #106280 HUDY BODY FIX
353565
903308
M3x8
960030
M3
309319
3x7x1
WING SHIMS
#353565 COMPOSITE INCLUDED
#293561 ALU OPTION
#293561-O ALU OPTION
#353561 ALU OPTION
