Xray RX8 User Manual

9
NOTE ORIENTATION
COMPOSITE SET OF BUSHINGS
INITIAL SETTING

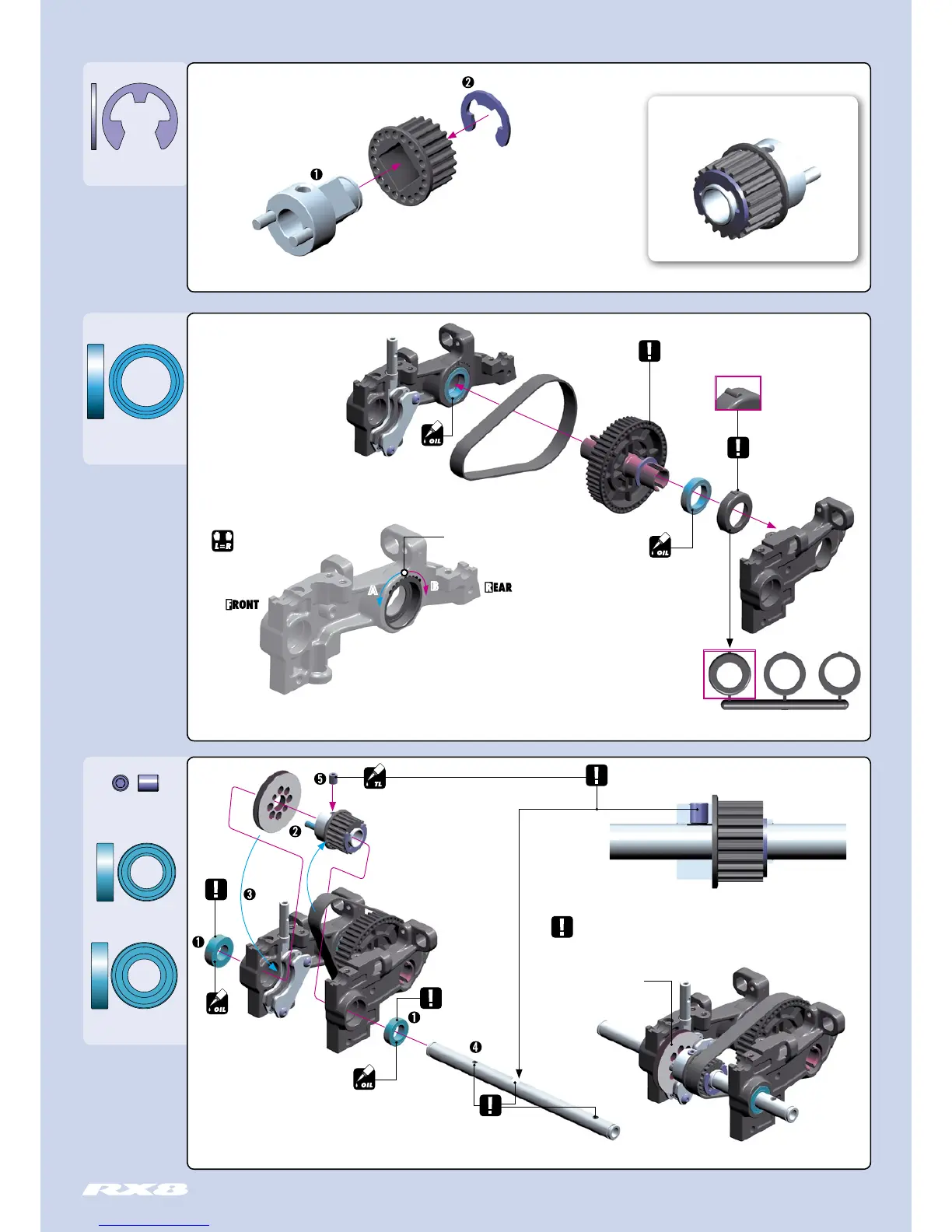

2. REAR SUSPENSION
BEARING
OIL
BEARING
OIL
BEARING
OIL
BEARING
OIL
INITIAL SETTING
Place tab in this notch
A
B
REAR BELT TENSION ADJUSTMENT
TO TIGHTEN REAR BELT
Rotate BOTH rear composite bushings in
arrow direction (A)
TO LOOSEN REAR BELT
Rotate BOTH rear composite bushings
in arrow direction (B)
DETAIL
Tighten setscrew
onto at spot
THREADLOCK
The brake disc must freely
move between the brake pads.
If not, loosen the two screws
holding the brake pads.
ASSEMBLED
VIEW
ASSEMBLED VIEW
965090
C 9
901405
SB M4x5
941218
BB 12x18x4
940815
BB 8x14x4
940817
BB 8x16x5
NOTE ORIENTATION
NOTE ORIENTATION
Both bushings must be
in same position
8x16x5
8x14x4

Xray RX8 Specifications

General

Battery Type	LiPo
Drive Type	4WD
Scale	1:8
Class	Buggy
Power	Electric
Battery Voltage	14.8V
Chassis Material	Aluminum
Radio System	Not included
Suspension	Independent
