Xray T3 User Manual

12

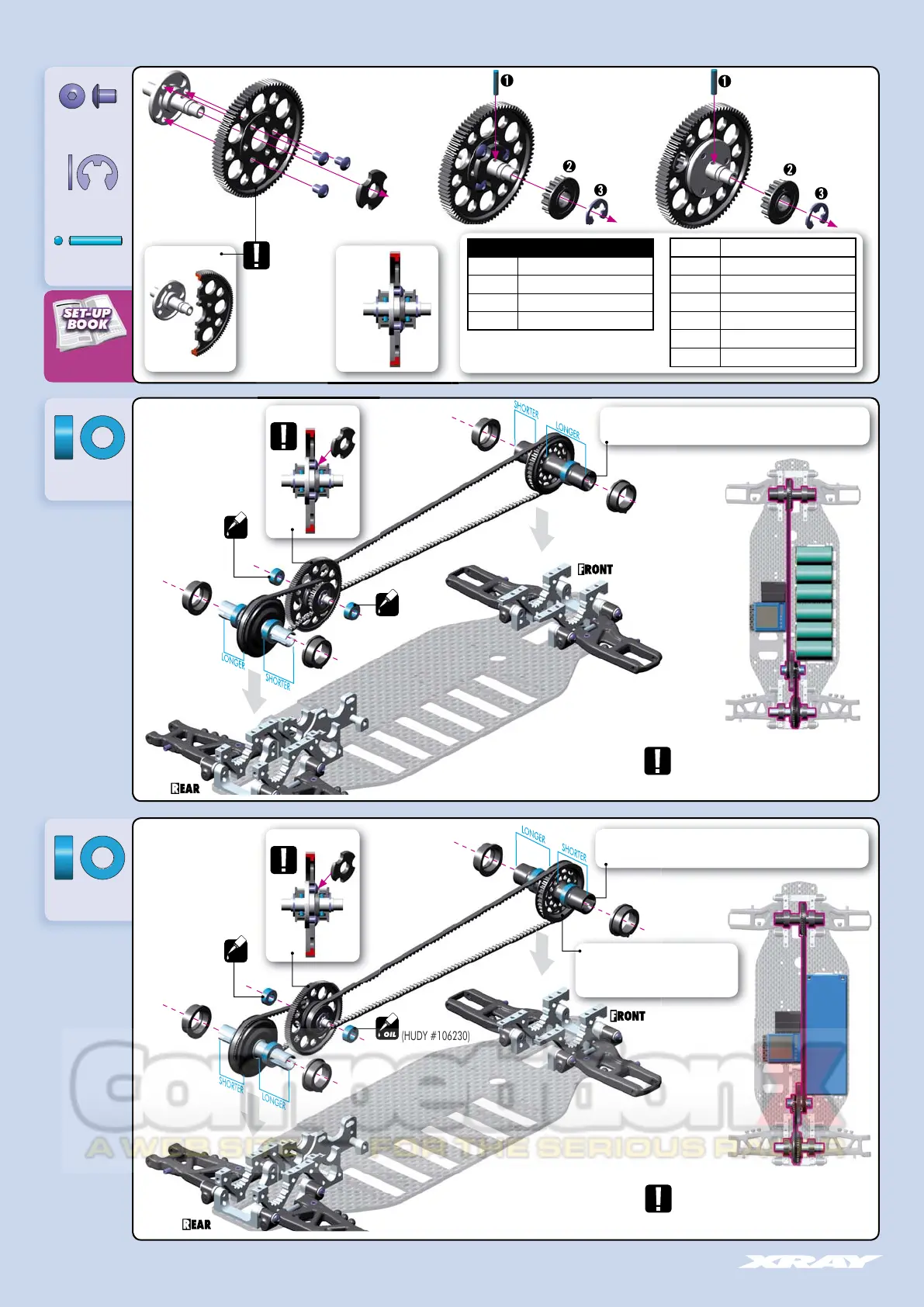

GEARING ADJUSTMENT
902304
SH M3x4
965050
C5
981212
P 2x12
940510
BB 5x10x4
940510
BB 5x10x4
SPUR GEARS
#305778 OFFSET SPUR GEAR 78T / 48P
#305781
OFFSET SPUR GEAR 81T / 48P
#305784 SPUR GEAR 84T / 48P
#305787 SPUR GEAR 87T / 48P
#305874 OFFSET SPUR GEAR 104T / 64P
#305876 OFFSET SPUR GEAR 106T / 64P
#305878 OFFSET SPUR GEAR 108T / 64P
#305880 OFFSET SPUR GEAR 110T / 64P
#305882 OFFSET SPUR GEAR 112T / 64P
#305884 OFFSET SPUR GEAR 114T / 64P
#305886 OFFSET SPUR GEAR 116T / 64P
US FOAM-SPEC kit contains a front ball differential.
EU RUBBER-SPEC kit contains a front composite solid axle.
US FOAM-SPEC kit contains a front ball differential.
EU RUBBER-SPEC kit contains a front composite solid axle.
NOTE ORIENTATION
Only when using XRAY
OFFSET spur gears
NOTE ORIENTATION OF DIFFS AND BELTS
See page 31 for more information about balancing the car.
NOTE ORIENTATION OF DIFFS AND BELTS
OIL
OIL
NOTE ORIENTATION
NOTE ORIENTATION
short belt
short belt
long belt
long belt
ALTERNATIVE for 5-cell or 6-cell battery pack.
ALTERNATIVE for LiPo battery pack.
ALTERNATIVE
5-cell or 6-cell
Battery Pack
ALTERNATIVE
LiPo Battery Pack
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
OIL
OIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
See page 31 for more information about balancing the car.
#305104 XRAY Multi-Diff™ can not be
used with LiPo Battery Pack alternative.
IMPORTANT!
IMPORTANT!
WARNING!
3. CENTRAL TRANSMISSION
Y
CUTAWAY
VIEW
1.
2.
3.
