13

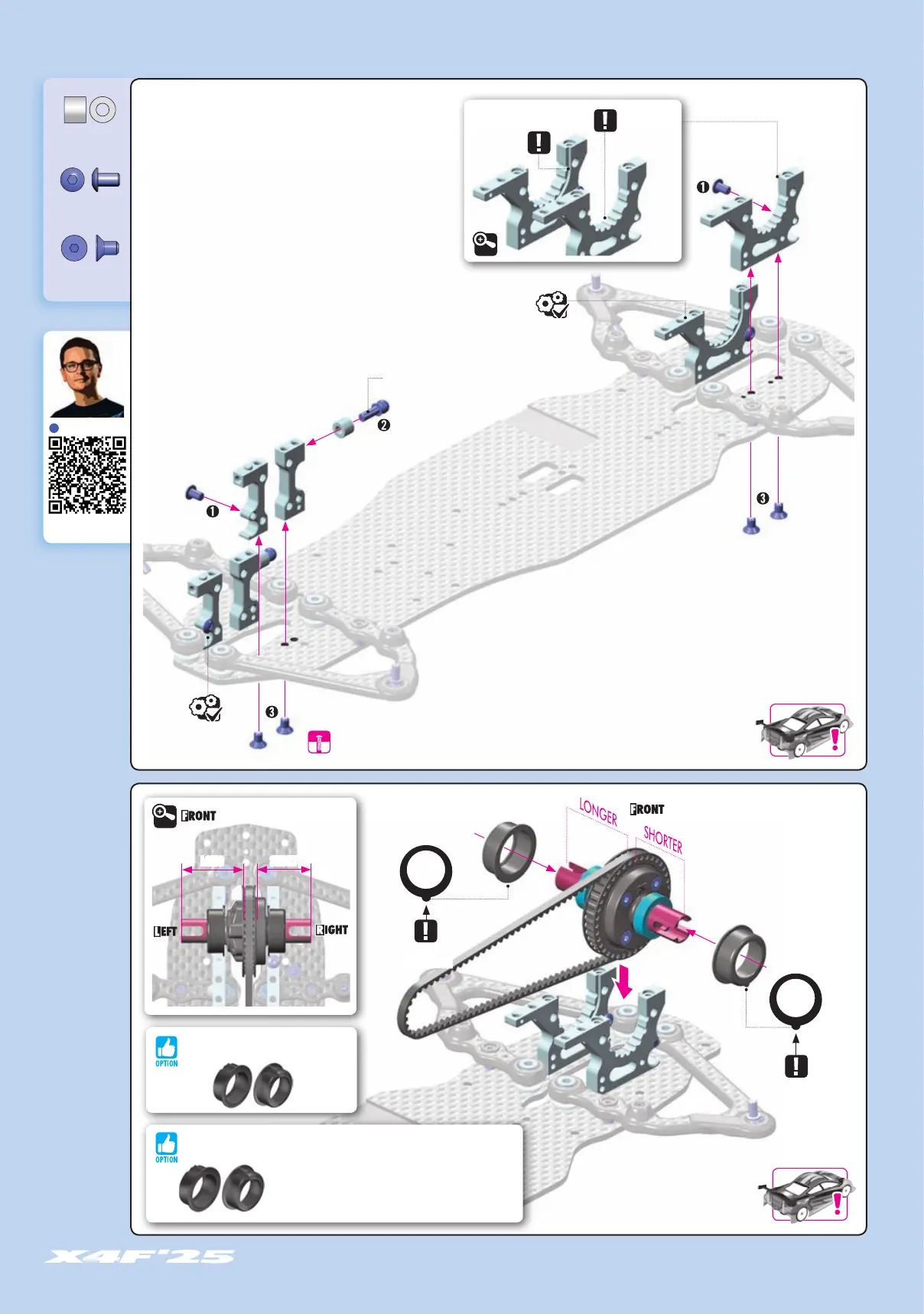

BUILDING THE
BULKHEADS
VIDEO TECH TIP
▶
303126-K
SHIM 3x6x5
902305
SH M3x5
903305
SFH M3x5
2x
4x
8x
3. CENTRAL TRANSMISSION
GEAR DIFF
GEAR DIFF
SHORT
LONG
DETAIL
NOTE
ORIENTATION
NOTE
ORIENTATION
DETAIL
NOTE
ORIENTATION
Milled Out Area inside
ASSEMBLY
VIEW
ASSEMBLY
VIEW
5mm
3x5mm
3x5mm
3x5mm
3x5mm
Tighten gently.
DO NOT tighten these screws fully yet. They will be tighten fully in page 14 step 2.
8mm THREAD
#302064-K
ALU ADJ. BALL-BEARING HUB +1mm (2)
These +1mm hubs allow for extra high or extra low diff position
compared to the kit eccentric parts. The extra high position
improves rotation while extra low position improves traction.
#302063-K
ALU ADJUSTMENT BALL-BEARING HUB (2)
