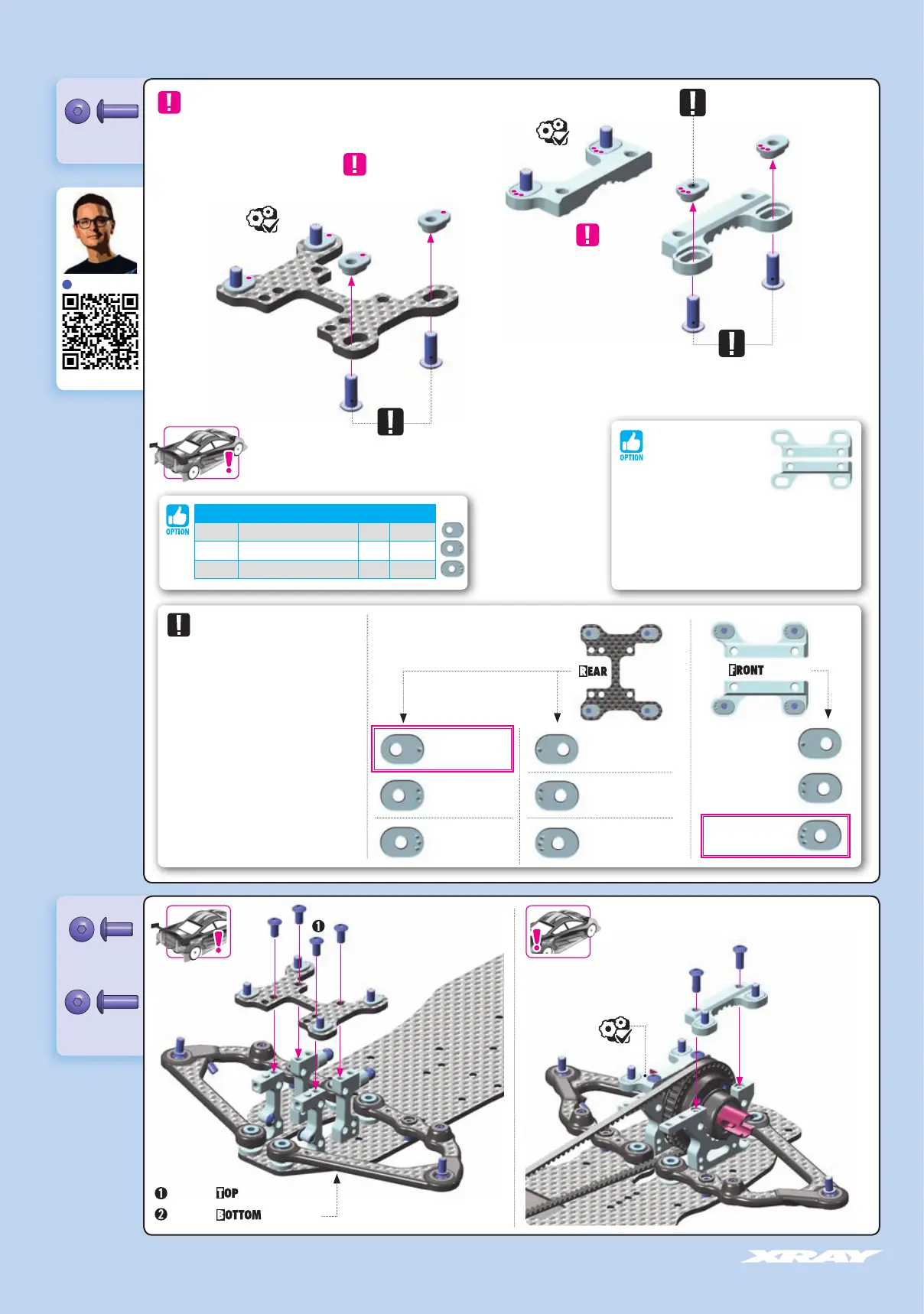

Xray X4F'25 - Page 14

14
CASTER
VIDEO TECH TIP
▶
902308
SH M3x8
902306
SH M3x6
902308
SH M3x8
1 Dot = 5.5º Caster
3 Dots = 3.5º Caster
2 Dots = 4.5º Caster
1 Dot = 0.5º Caster
1 Dot = 3.0º Caster
3 Dots = 2.5º Caster
3 Dots = 5.0º Caster
2 Dots = 1.5º Caster
(INITIAL SETTING)
(INITIAL SETTING)
2 Dots = 4.0º Caster
IMPORTANT
All 4 bushings at one end of the car must be
installed in the same orientation.
CASTER
CASTER
3. CENTRAL TRANSMISSION
NOTE ORIENTATION FOR ALL PARTS
ASSEMBLY
VIEW
ASSEMBLY
VIEW
Never use alu or titanium screws
for the eccentric bushings.
Never use alu or titanium screws
for the eccentric bushings.
Tighten all screws.
Tighten all chassis screws.
CASTER ADJUSTMENT
FRONT CASTER
For most conditions, 5.0 deg front caster is a
good starting point. Decreasing caster increases
entry steering but will cause more on-power push.
REAR CASTER
A good starting point for rear caster is 0.5°.
0.5 caster generates more cornerspeed and
makes the car easier to drive in long sweepers.
Recommended for both carpet and asphalt tracks.
5.5 caster improves rotation and steering, mainly
recommended for tight tracks.
#301578
ALU UPPER CLAMPS - 1.0mm
The new upper clamps move the inner pivot 1.0mm closer to
center. This position lengthens the upper arm and reduces
camber gain to free up the car. Mid corner steering improves
in long sweepers, and traction rolling is reduced in very high
traction carpet conditions. Recommended for large open tracks
or high traction carpet tracks.
8x
4x
4x
IMPORTANT
All 4 bushings at one end of the car must
be installed in the same orientation.
3x6mm
3x8mm
ASSEMBLY
VIEW
Use 1 DOT alu caster bushings in
REAR graphite upper clamp.
Use 3 DOTS alu caster bushings in
FRONT alu upper clamps.
ALU CASTER BUSHINGS
#302310 FRONT 3° / REAR 5.5° or 0.5° 1 Dot INCLUDED
#302311 FRONT 4° / REAR 4.5° or 1.5° 2 Dots OPTION
#302312 FRONT 5° / REAR 3.5° or 2.5° 3 Dots INCLUDED
