BELT TENSION
ADJUSTMENT
VIDEO TECH TIP
▶
903306
SFH M3x6

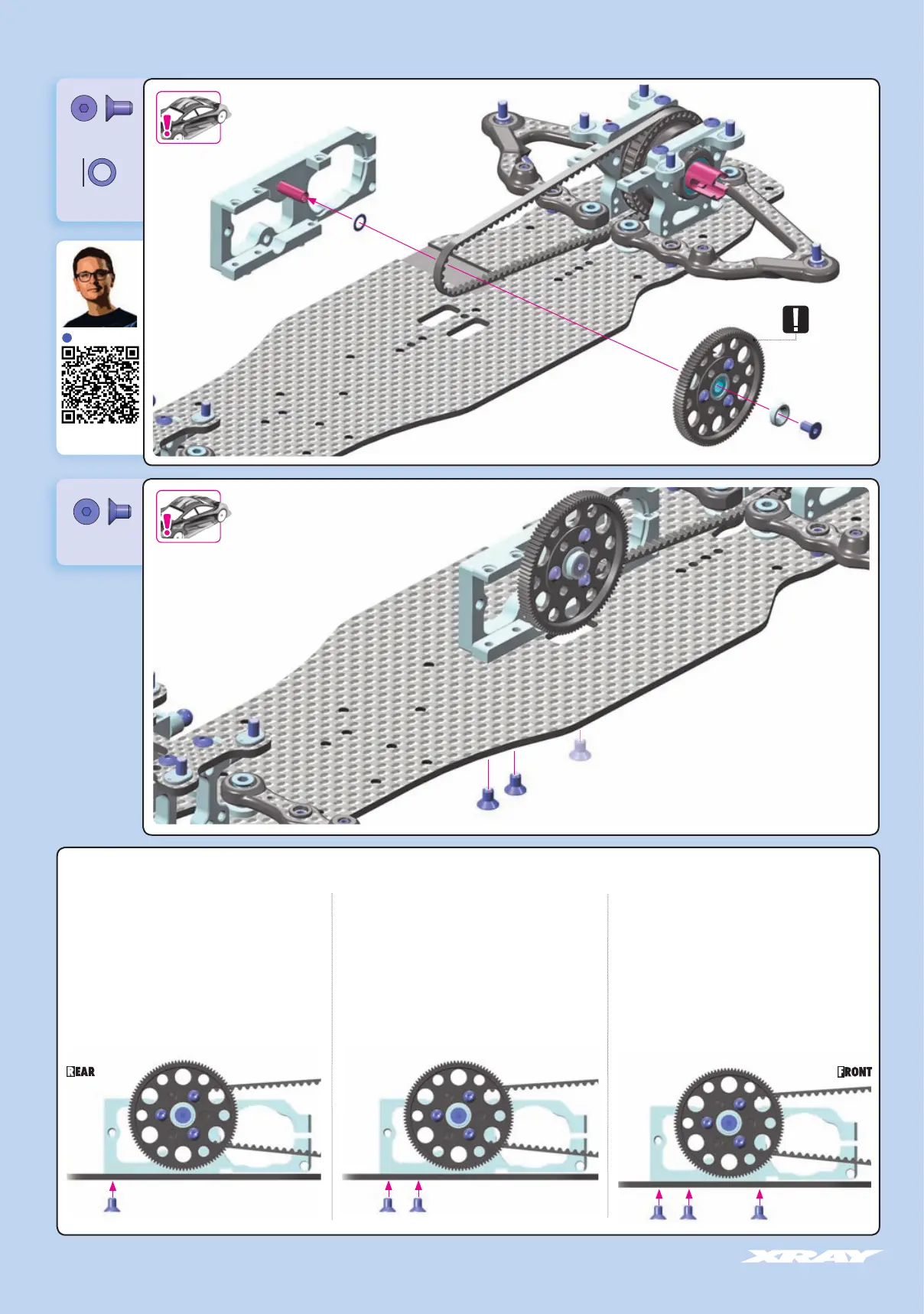

MOTOR MOUNT FLEX ADJUSTMENT
Use only the rearmost screw to attach the motor mount as shown
below. This allows more central chassis flex and will improve
traction, especially on power. Rear grip will improve through the
entire corner. This setting is recommended for low to medium
traction conditions, both on asphalt and carpet.
Use all three screws to attach the motor mount for maximum
stability. Recommended for high traction surfaces.
Use the two rear screws to attach the motor mount as shown,
and DO NOT install the very front screw. This configuration is a
compromise between stability and initial response. The additional
rear screw improves stability with a slight reduction in steering.
SOFT
STIFFMEDIUM
(INITIAL SETTING)
903305
SFH M3x5
962042
S 4x6x0.1
0.1mm
3x6mm
3. CENTRAL TRANSMISSION
NOTE
ORIENTATION
1x
1x
3x
(INITIAL SETTING)
Use the two rear screws to attach the motor mount.
3x5mm
To Next Page
