19
901302
SB M3x2.5
903305
SFH M3x5
303142-K
SHIM 3x5x0.5
2x
902310
SH M3x10
2x
2x
6mm
The brace provides chassis flex adjustment possibilities depending on which screws are connected.

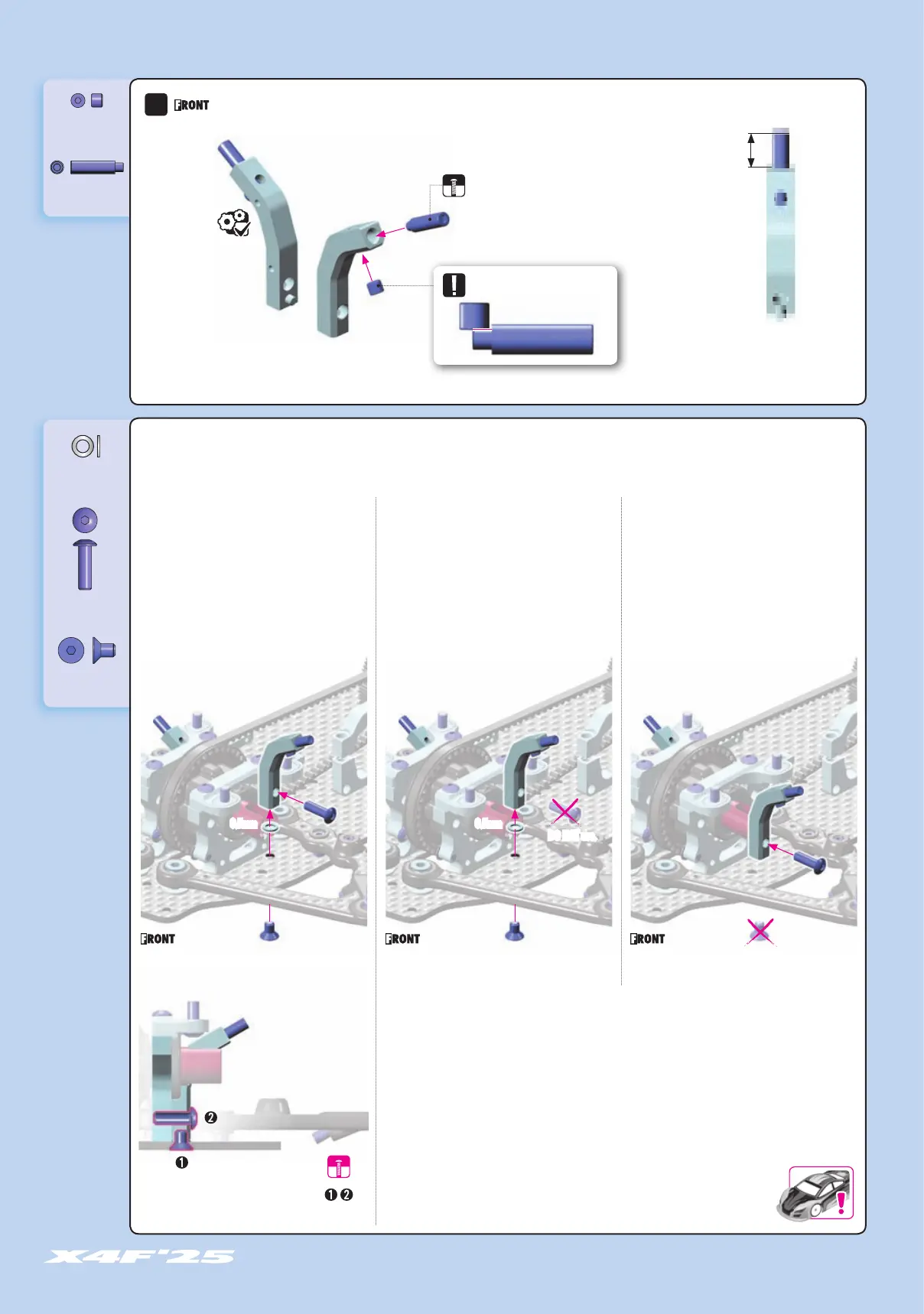

FRONT SHOCK HOLDERS FLEX ADJUSTMENT
DO NOT use.
DO NOT use.
901313
SB M3x12
2x
3. CENTRAL TRANSMISSION
SHOCK HOLDERS
0.5mm0.5mm
The screw presses against the notch.
DO NOT overtighten.
(INITIAL SETTING)
Attach the shock holder to only the chassis for medium
flex setting. Provides more traction and steering than stiff
setting. Recommended for medium traction tracks.
Attaching the shock holders to only the bulkheads generates
maximum traction and steering and is recommended for
lower traction conditions. It can make the car less stable
and can lead to traction-roll in higher traction conditions.
Attach the shock holder to both the chassis and bulkhead
for free yet predictable handling for the easiest control.
Recommended as a starting point for all grip levels.
FLEX ALTERNATIVE 2. FLEX ALTERNATIVE 3.FLEX ALTERNATIVE 1.
2x
2x
» All screws TIGHTEN GENTLY
» Fully TIGHTEN in this order
