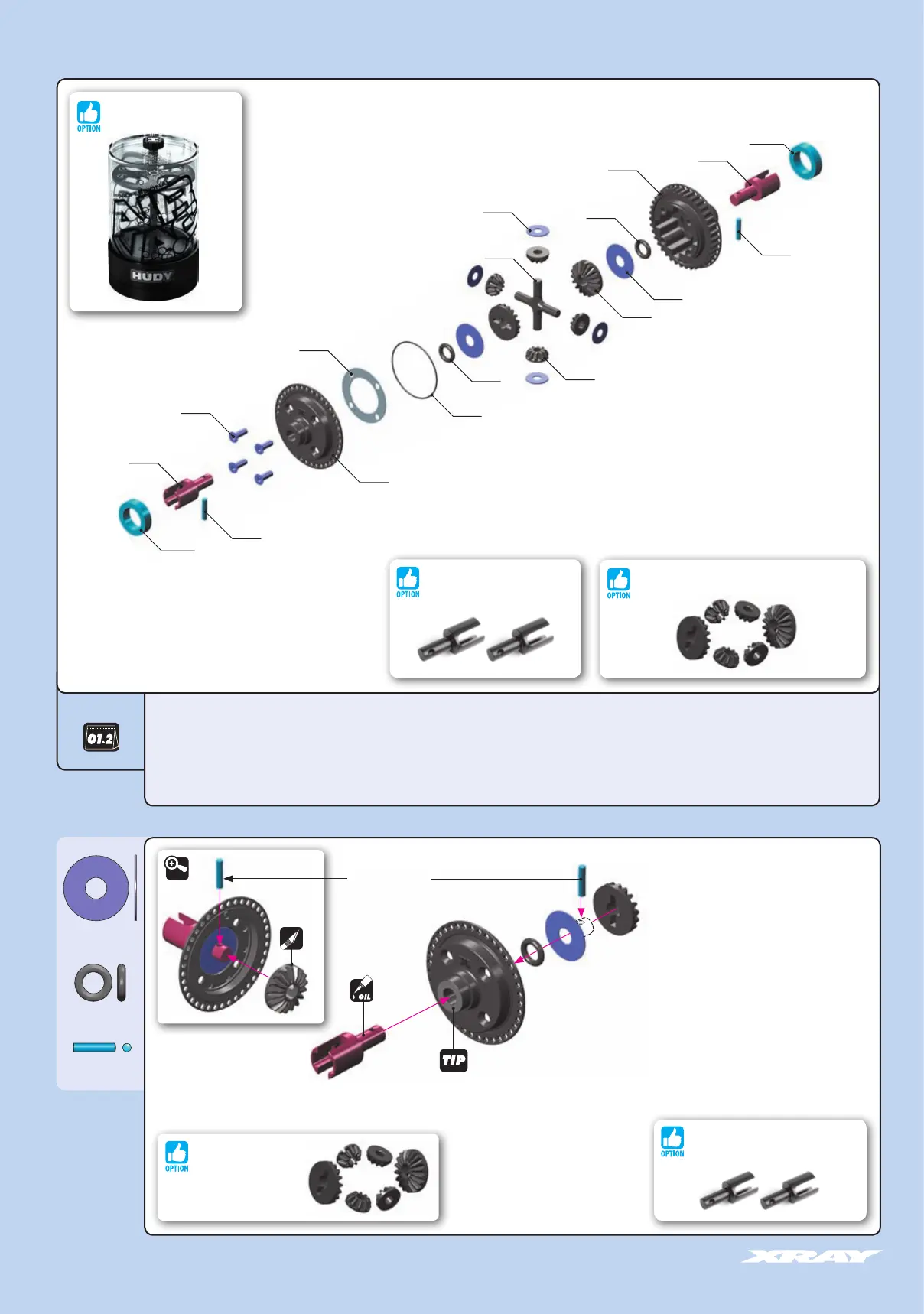

1. GEAR DIFFERENTIAL
981210
P 2x10
972050
O 5x2
964050
S 5x15x0.3
304902 X4 BB GEAR DIFFERENTIAL - SET
304911 X4 COMPOSITE GEAR DIFF. CASE WITH 38T PULLEY & COVER
304930 COMPOSITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
304973 STEEL GEAR DIFF BB DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2)
304980 COMPOSITE GEAR DIFF CROSS PIN
304990 DIFF GASKET (4)
903258 HEX SCREW SFH M2.5x8 (10)
941015 BALL-BEARING 10x15x4 RUBBER SEALED - OIL (2)
964031 WASHER S 3.5x10x0.2 (10)
964050 WASHER S 5x15x0.3 (10)
971240 SILICONE O-RING 24x0.7 (10)
972050 SILICONE O-RING 5x2 (10)
981210 PIN 2x10 (10)
➊
➋
➌
➍
➍
➍
➎
➎
DETAIL
Numbers in parentheses ( ) refer to quantities when purchased separately.
➎
STEP
BAG 00.9
BAG 00.9
BAG
304973
304911
964050
972050
304990
304911
903258
981210
981210
304973
941015
971240
972050
964031
304980
304930
304930
941015
DETAIL
If the diff is NOT turning freely
after assembly, use thin sand
paper to lightly polish the surface.
#304972
ALU GEAR DIFF CVD BB DRIVESHAFT
ADAPTER - SWISS 7075 T6 (2)
#304932
GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
#104002
HUDY AIR VAC – VACUUM PUMP
#304932
GRAPHITE GEAR DIFF BEVEL
& SATELLITE GEARS (2+4)
#304972
ALU GEAR DIFF CVD BB DRIVESHAFT
ADAPTER - SWISS 7075 T6 (2)
