7

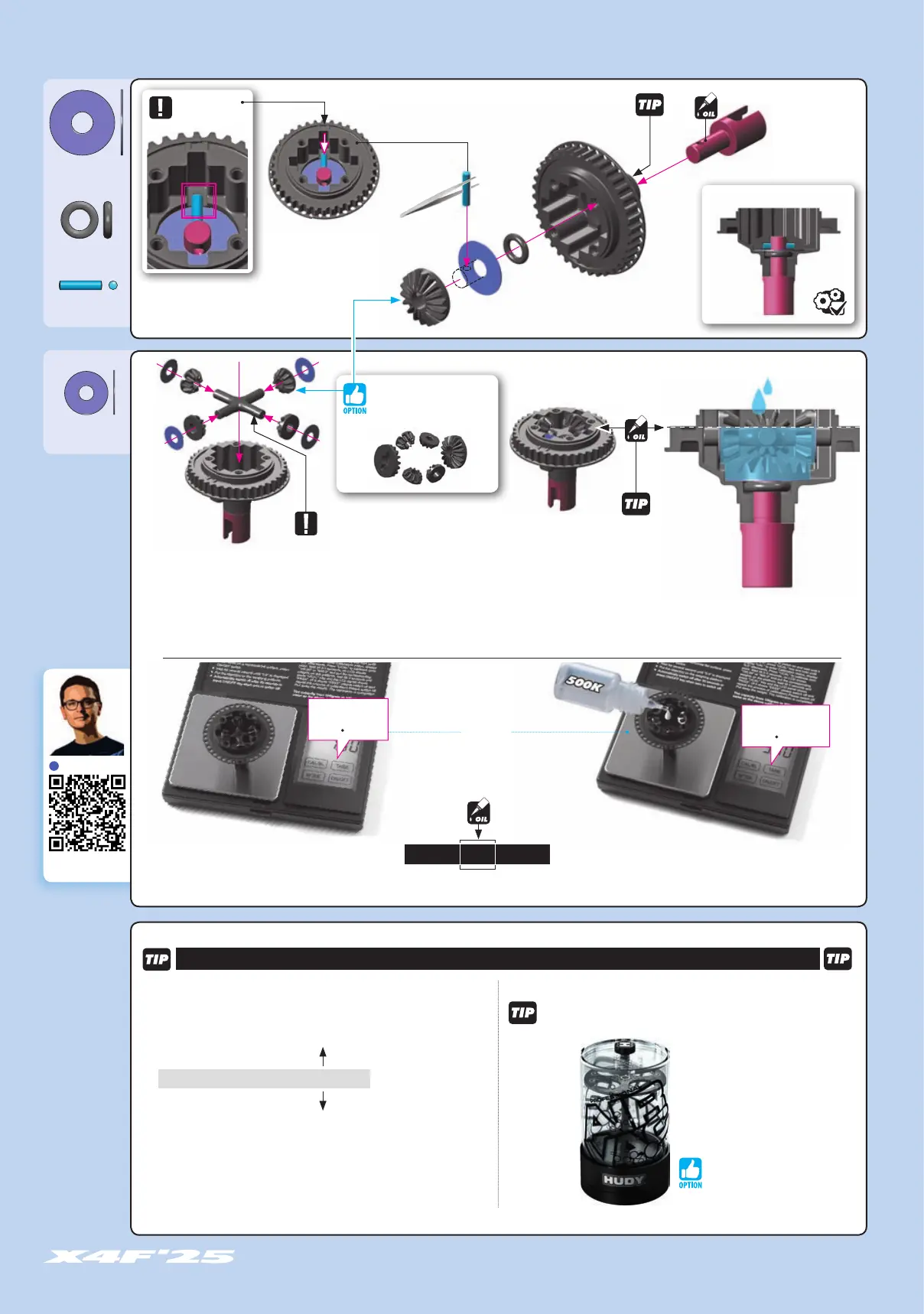

REAR DIFFERENTIAL
VIDEO TECH TIP
▶
964031
S 3.5x10x0.2
1. GEAR DIFFERENTIAL1. GEAR DIFFERENTIAL
TIPS FOR DIFFERENTIALS
To make sure that all the air is removed from the diff oil, we recommend
using the HUDY Air Vac.
100.000cSt (HUDY #106610)
150.000cSt (HUDY #106615)
200.000cSt (HUDY #106620)
300.000cSt (HUDY #106630)
500.000cSt (HUDY #106650) INITIAL SETTING
1 000.000cSt (HUDY #106692)
2 000.000cSt (HUDY #106694)
LOWER VISCOSITY
HIGHER VISCOSITY
#104002
HUDY AIR VAC – VACUUM PUMP
Lower viscosity oil will increase steering
but reduce traction.
Higher viscosity oil will improve forward
traction and increase stability, but
reduces steering.
If the cross does NOT enter into the
diff freely, use fine sand paper to
lightly polish the ends of the cross.
TO ENSURE YOU HAVE THE SAME AMOUNT OF OIL FROM REBUILD TO REBUILD, DO THE FOLLOWING:
#107865
HUDY Ultimate Digital Pocket
Scale 300g±0.01g
Fill differential up to the top of the diff pin.
DO NOT fill the diff to the top of the housing.
(INITIAL SETTING)
500.000cSt
➊ Put the diff (without oil) on the scale and check the
weight (approximately 12.00g)
➋
Slowly pour oil into the diff and watch the weight. Add 1.50g of oil
into the diff. The approximate weight of the diff including oil is 13.50g.
12.00g + 1.50g = 13.50g
Use tweezers to
insert pin.
981210
P 2x10
972050
O 5x2
964050
S 5x15x0.3
➊
➋
➌
➍
➎
STEP DETAIL
➍
NOTE
ORIENTATION
If the diff is NOT turning freely
after assembly, use thin sand
paper to lightly polish the surface.
g
12.00
g
13.50
#304932
GRAPHITE GEAR DIFF BEVEL &
SATELLITE GEARS (2+4)
CUTAWAY VIEW
1x
1x
1x
4x
