1. GEAR DIFFERENTIAL
1. GEAR DIFFERENTIAL
971240
O 24x0.7
941015
BB 10x15x4
903258
SFH M2.5x8
1x
4x
2x

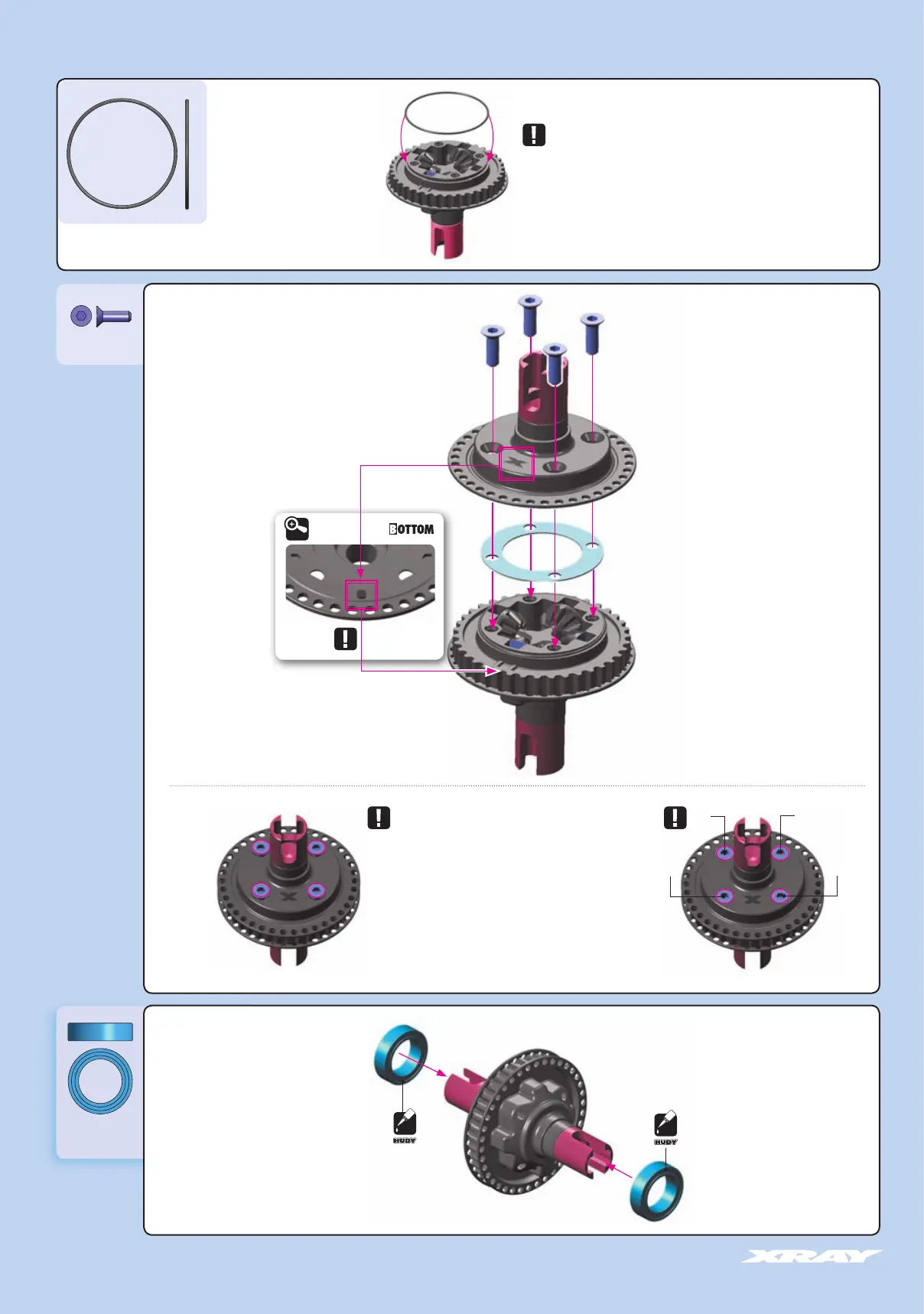

After disassembling the gear diff, the large O-ring may have an
increased size and may be more difficult to re-install. We recommend
either inserting the old O-ring carefully in the diff cover, or installing
a new O-ring if the old one cannot be made to fit properly.
OIL
Tighten the screws equally but
DO NOT tighten them completely.
Finish tightening in this order.
➊
➋
➌
➍
DETAIL
NOTE
ORIENTATION
Marked symbol “X“
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
OIL
