Xray X4F - 3. CENTRAL TRANSMISSION

12
03
902306
302772
902314
903305
903305
903305
302062
902308
301570
302311
305437
305525
305531
302056
903305
301570
902308
301570
302970
362648
302773
304901
301970
302773
302772
301970
303125-K
303125-K
902306
302062
902303
902308
301570
302311
902308
930407
302311
902308
902308
302311
902308
305870
902314
962042
305578
970050
303757
903305

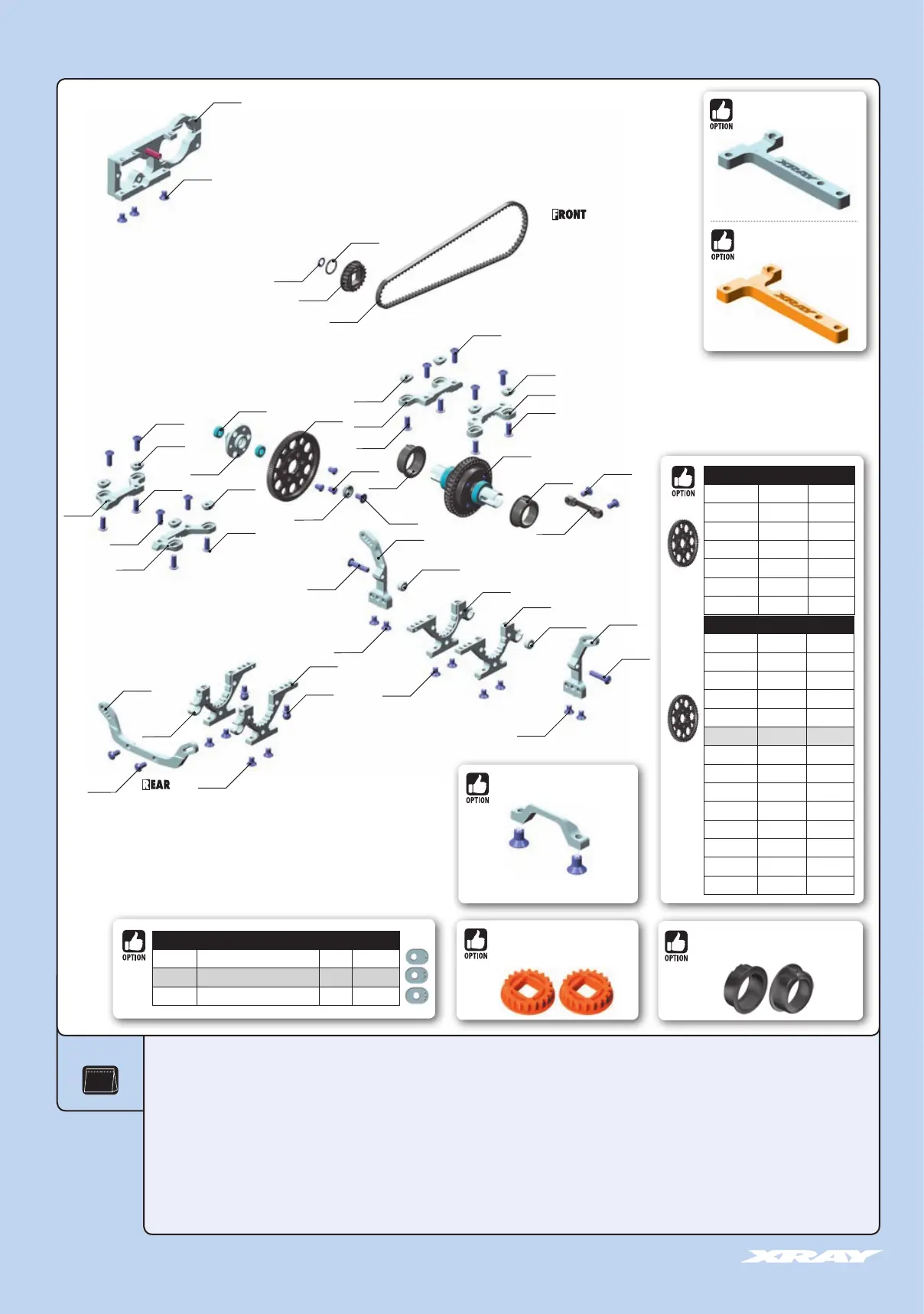

3. CENTRAL TRANSMISSION
BAG
301570 X4 ALU UPPER CLAMP - SWISS 7075 T6 (L+R)
301970 X4 ALU SHOCK TOWER FRONT - SWISS 7075 T6 (L+R)
302056 X4 GRAPHITE FRONT SUSPENSION BRACE
302062 COMPOSITE ADJUSTMENT BALL-BEARING HUB (4)
302311 X4 ALU CASTER BUSHING FRONT 4° / REAR 1.5° - 2 DOTS (4)
302772 X4 ALU LOWER BULKHEAD - FRONT R / REAR L - HD - 7075 T6
302773 X4 ALU LOWER BULKHEAD - FRONT L / REAR R - HD - 7075 T6
302970 X4 ALU SHOCK TOWER REAR - SWISS 7075 T6
303125-K ALU SHIM 3x6x3.0MM - BLACK (10)
303757 X4F ALU MOTOR MOUNT
305437 HIGH-PERFORMANCE DRIVE BELT 3x300MM
305525 X4F ALU SOLID LAYSHAFT & BEARINGS
305531 X4F ALU SOLID LAYSHAFT WASHER FOR BATTERY BACKSTOP
305578 FIXED PULLEY FOR LAYSHAFT WITH BEARINGS 20T (2)
305870 OFFSET SPUR GEAR 100T / 64
362648 BALL END 4.9MM WITH THREAD 4MM (2)
902303 HEX SCREW SH M3x4 SMALL HEAD - STAINLESS (10)
902306 HEX SCREW SH M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
902314 HEX SCREW SH M3x14 (10)
903305 HEX SCREW SFH M3x5 (10)
903306 HEX SCREW SFH M3x6 (10)
930407 BALL-BEARING 4x7x2.5 STEEL SEALED - OIL (2)
962042 WASHER S 4x6x0.1 (10)
970050 O-RING 5x1 (10)
304901 X4 GEAR DIFFERENTIAL - SET
SPUR GEARS 48P
#305772 72T / 48P OPTION
#305776 76T / 48P OPTION
#305778 78T / 48P OPTION
#305779 79T / 48P OPTION
#305781 81T / 48P OPTION
#305784 84T / 48P OPTION
#305784-O 84T / 48P OPTION
OFFSET SPUR GEARS 64P
#305860 90T / 64P OPTION
#305862 92T / 64P OPTION
#305866 96T / 64P OPTION
#305866-O 96T / 64P OPTION
#305869 99T / 64P OPTION
#305870 100T / 64P INCLUDED
#305870-O 100T / 64P OPTION
#305874 104T / 64P OPTION
#305876 106T / 64P OPTION
#305878 108T / 64P OPTION
#305880 110T / 64P OPTION
#305880-O 110T / 64P OPTION
#305882 112T / 64P OPTION
#305884 114T / 64P OPTION
#302063-K
ALU ADJUSTMENT BALL-BEARING HUB (2)
903306
#303768
ALU CHASSIS T-BRACE - 7075 T6
#303767
BRASS CHASSIS T- BRACE - 10g
ALU CASTER BUSHINGS
#302310 FRONT 3° / REAR 5.5° or 0.5° 1 Dot OPTION
#302311 FRONT 4° / REAR 4.5° or 1.5° 2 Dots INCLUDED
#302312 FRONT 5° / REAR 3.5° or 2.5° 3 Dots OPTION
#305578-O
FIXED PULLEY FOR LAYSHAFT WITH
BEARINGS 20T - GRAPHITE (2)
#302055
X4 ALU CHASSIS FRONT BRACE
For more information see page 46 / STEP 2
