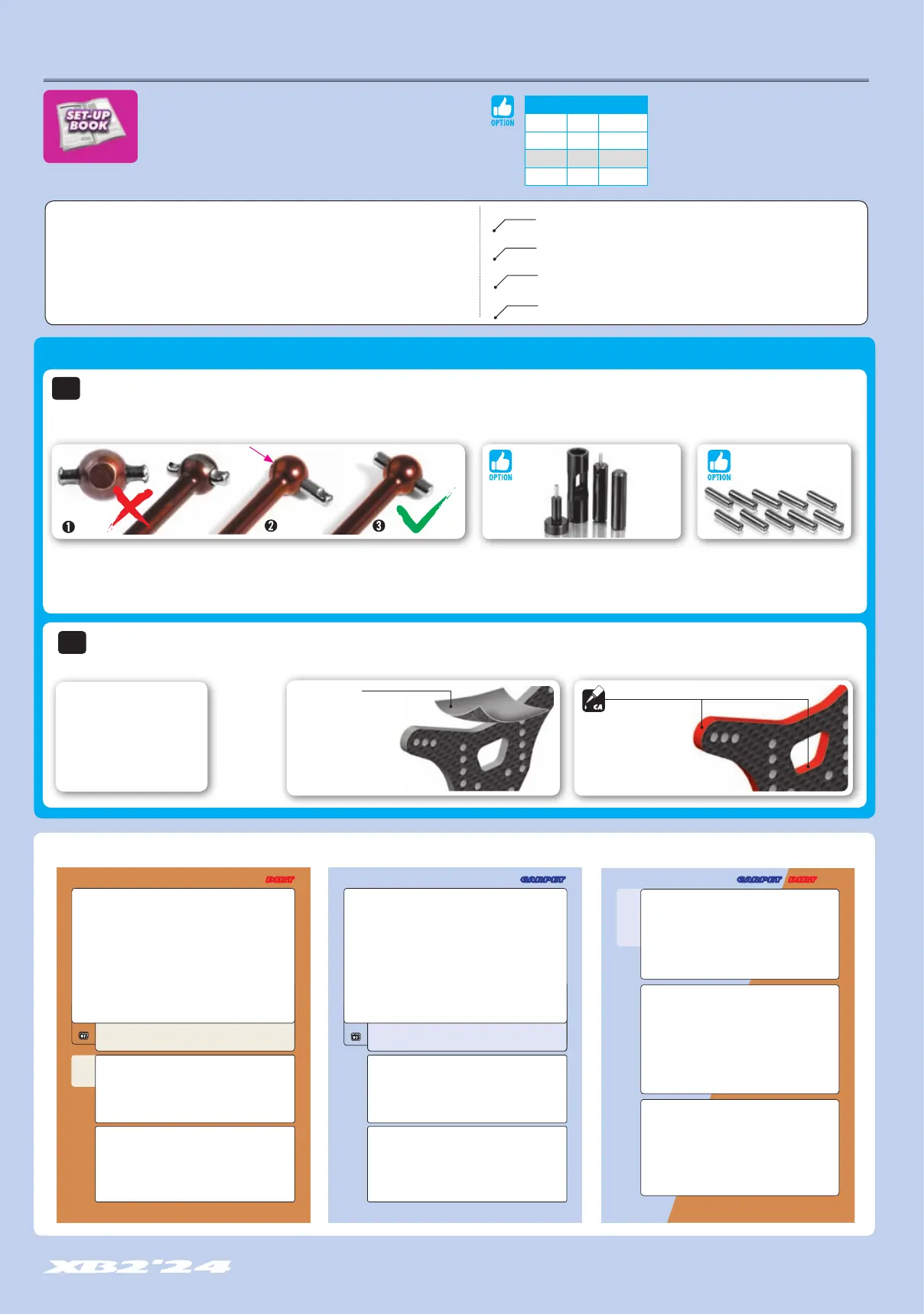

TECH TIPS
Fine sandpaper
Use fine sandpaper to
sand smooth the edges of
all graphite parts.
Apply CA glue to all edges
of the graphite parts.
DRIVE SHAFT PIN SERVICING
TIP
To enjoy the longest possible lifespan of the drive shafts and diff outdrives, it is extremely important to properly service the drive shaft pins.
Inspect the pins after every 3 hours of runtime. If the pins show any wear, replace them with new pins.
To replace the worn pins use only
premium HUDY drive pins
(#106053 2.5mm dia x 10mm length)
GRAPHITE PARTS PREPARATION
TIP
Follow this Tech Tip to prepare the graphite parts. Sand the edges with sandpaper, and then seal the edges with CA glue to reinforce them and help prevent delamination.
Prepare all Graphite Parts:
• Front shock tower
• Rear shock tower
DO NOT use drive shafts
when the pins are worn.
Press out the worn pins.
Press in new pins and
regularly inspect for wear.
COLOR INDICATIONS
For quick & easy drive pin replacements use
#106000 HUDY Drive Pin Replacement Tool
together with #106036 Ejector Pivot Pin &
Alternating Pivot 2.5mm.
NOT INCLUDED
To ensure that you always have access to the most up-to-date version of the Set-up
Book you can download the HUDY Set-up Book from their web site at [www.hudy.
net] By offering this online version instead of including a hardcopy printed version
in kits, you will always be assured of having the most current updated version.
XRAY offers wide range of optional tuning parts
which are listed in a table like this. Please refer
to the exploded view of each main section to
verify which part is included in the kit while all
other parts are available only as an optional
part and must be purchased separately.
Follow Set-Up Book:
MANUAL STEPS ONLY FOR DIRT MANUAL STEPS ONLY FOR CARPET MANUAL DUAL STEPS FOR CARPET AND DIRT
1. BALL DIFFERENTIAL 1. GEAR DIFFERENTIAL
BAG
BAG
3. REAR DRIVETRAIN
DIRTDIRT CARPETCARPET
At the beginning of each section is an exploded view of the parts to be assembled. There is also
a list of all the parts and part numbers that are related to the assembly of that section.
The part descriptions are color-coded to make it easier for you to identify the source of a part.
Here are what the different colors mean:
SAMPLE OF OPTIONAL PARTS
#32XXXX TYPE1 OPTION 1
#32XXXX TYPE2 OPTION 2
#32XXXX TYPE INCLUDED
#32XXXX TYPE3 OPTION 3
STYLE A - indicates parts that are included in the bag marked for the section.
STYLE B - indicates parts that are included in the box.
STYLE C - indicates parts that are already assembled from previous steps.
STYLE D - indicates parts that are optional.
321100
324900
325100
321200
