XtendLan DT607 Series User Manual

-19-

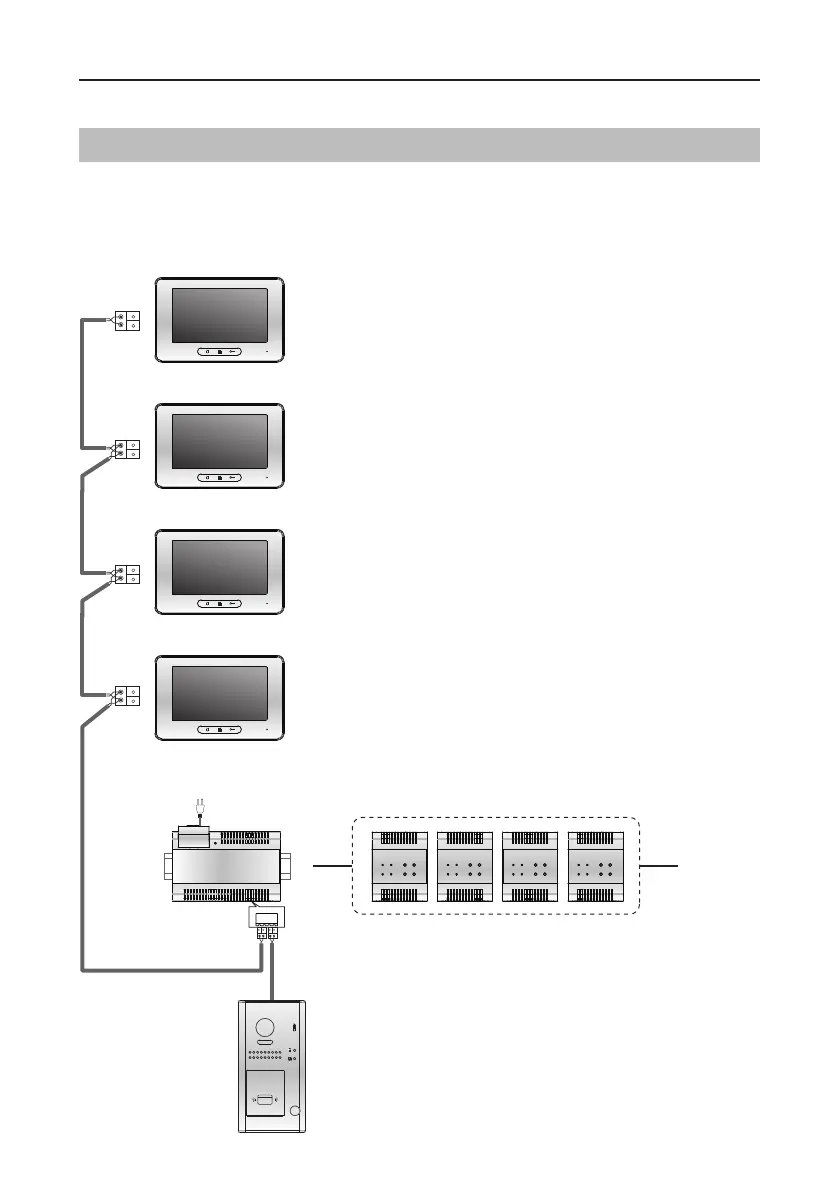

Basic IN-OUT Wiring in Standard Mode
Connecting Multi Monitors
WIRING
• The door station is also compatible with
other monitors which are provided by our
company.
• Please set door station into group calling
mode if there is more than 4 monitors in
villa(Refer to Page 9)
• Distributor is unnecessary in full audio
system, and IN-OUT mode is recom-
mended.
• For the last monitor connected to the
system, DIP6 should set to
ON
.
ID=0
Code=1, DIP6=off
Optional functional module
SCU camera module(max.4)
GSM module(mobile phone transfer)
TPS module(PBX transfer)
QSW image quad splitter module
(Master)
Code=1, DIP6=off
(Slave 2)
Code=1, DIP6=on
(Slave 3)
BUS(IM) BUS(DS)
PC6A
AC~
100~240VAC
Code=1, DIP6=off
(Slave 1)
RF CARD
SCU GSM TPS QSW
