Xterra RSX1500 - Right Swing Arm Assembly

8
RSX1500 Seated Stepper
2
Right Swing Arm

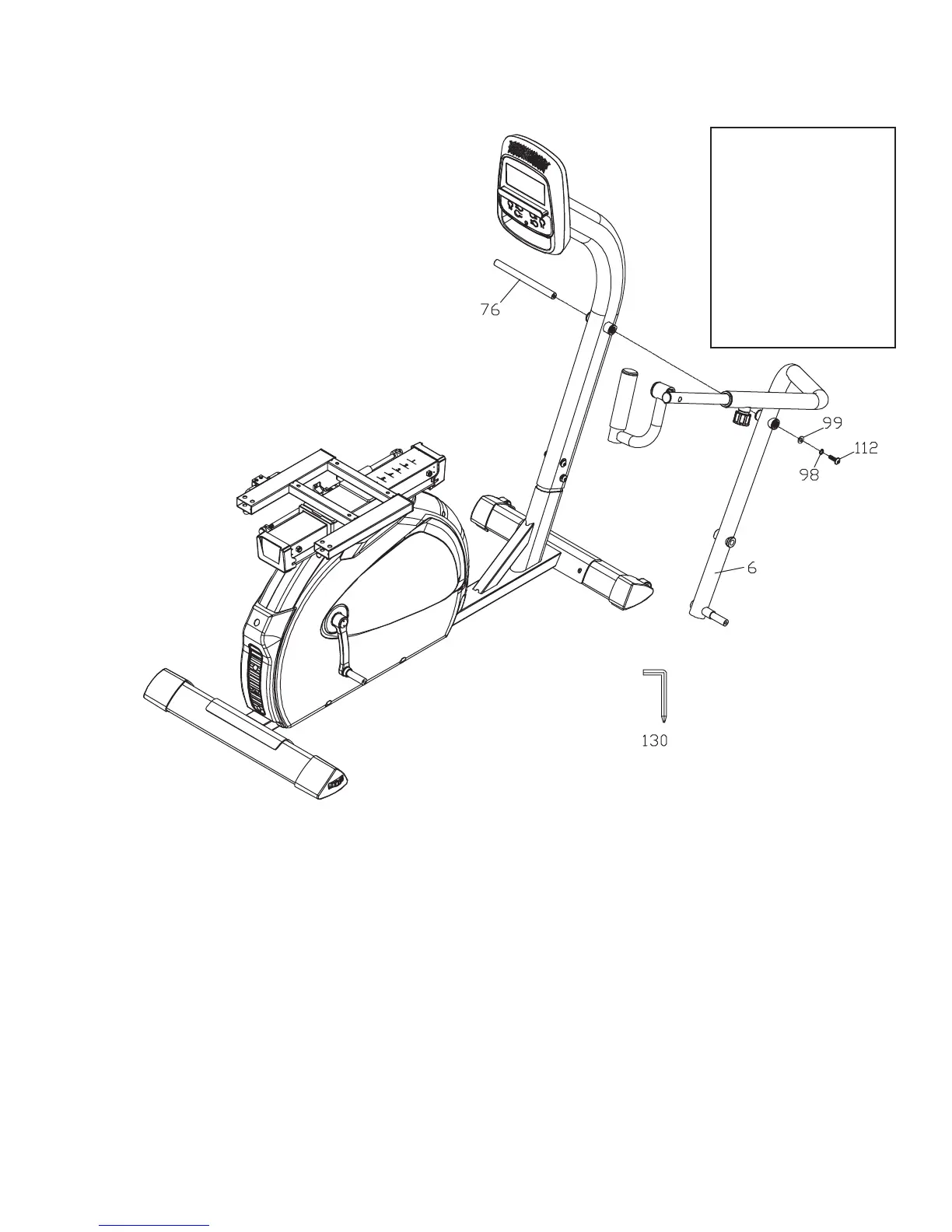

1. Insert the Handgrip Axle (#76) to slide through the Lower Handle Bar (R)(#6) and use Allen
Wrench & Phillips Head Screw Driver (#130) to secure with Button Head Socket Bolt (#112),
Split Washer (#98) and Flat Washer (#99).
#130. Combination M5
Allen Wrench & Phillips
Head Screw Driver
#112. 5/16”x3/4” Button
Head Socket Bolt - 1pc
#98. 5/16”x1.5T Split
Washer - 1pc
#99. 5/16”x18x1.5T Split
Washer - 1pc
Hardware Step 2
