8
TR6.65 Treadmill
Cables
4

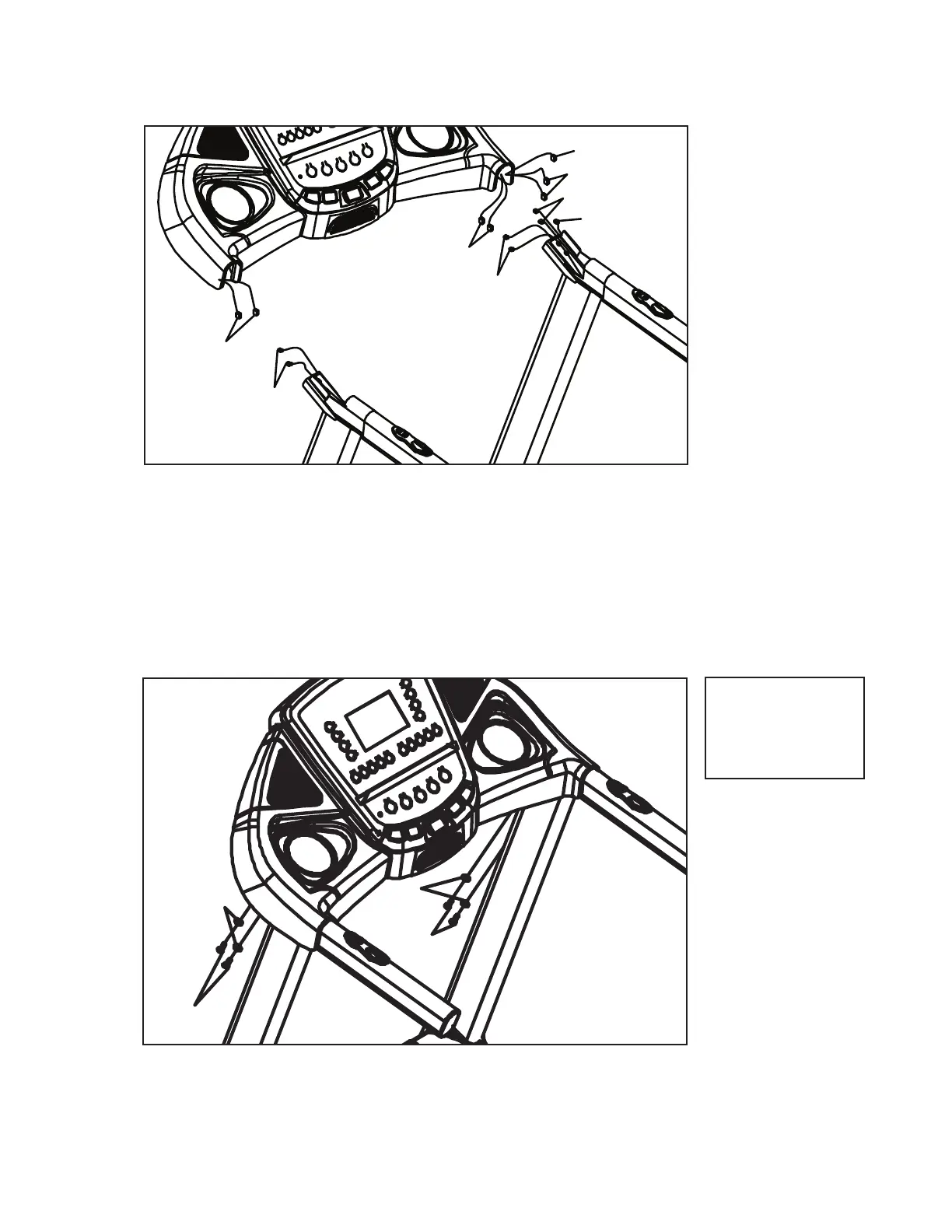

1. This step is easier if you have someone else helping to hold the console
while you connect the wires. Connect the computer cable (38) to the
mating connector (37) of the console.
2. Connect the cables (127) to mating cables (53) on the right side.
3. Connect the cable (152) to the mating cable (131).
4. Connect the cables (128) to mating cables (54).
38
37
127
128
54
53
152
131
Console Assembly
5
Hardware Step 5
#148. Ø8mm x 1.5T
Split Washer (4 pcs)
#90. 3/8” x 3/4”
Button Head Socket
Bolt (4 pcs)
1. To attach the console, insert four Washers (82) and four Button Head
Socket Bolts (90) underneath the console. Tighten using the
Combination Allen Wrench & Phillips Head Screw Driver (96).
82
90
82
90
To Next Page
