Now that you are familiar with the major component parts of your X-Cellerator Nitro Stadium Racer, and with the functions of the Hitec
Lynx Sport transmitter, it's time to prepare your X-Cellerator Nitro Stadium Racer for its first run.

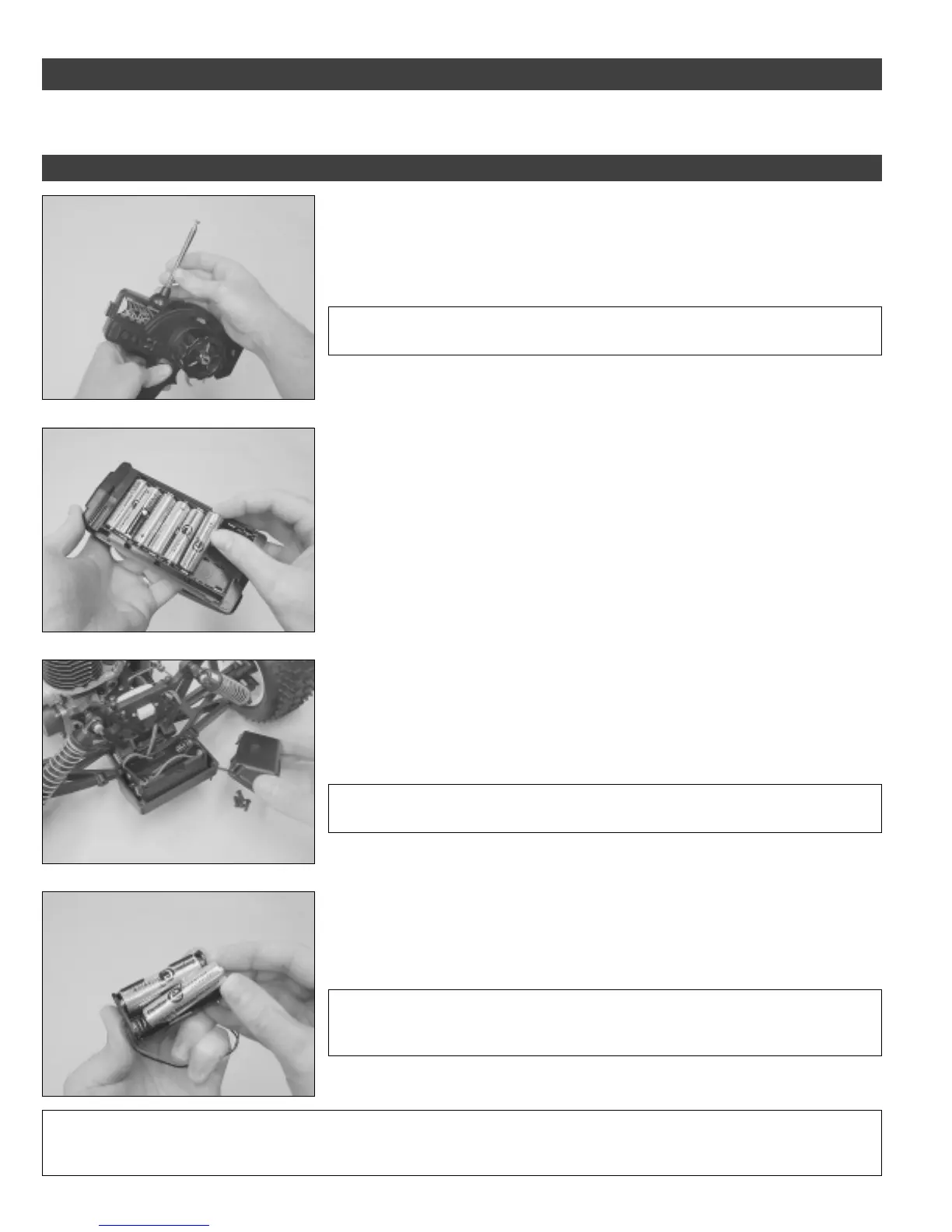

Step 1: Final Assembly
❑ Push the antenna down into the molded hole in the top of the transmitter.
❑ Thread the antenna (clockwise) into place and tighten it gently until it stops.
✦✦
✦✦
✦IMPORTANT
✦✦
✦✦
✦ Do not force the antenna into place or tighten it too strongly. Doing so
could cause damage to the antenna and/or transmitter.
❑ Remove the plastic battery cover from the bottom of the transmitter.
❑ Install 8 AA Alkaline batteries into the battery tray, double-checking to make sure that
the polarity is correct.
❑ Reinstall the battery cover and set the transmitter aside for now.
❑ Using a 1/16" hex wrench, remove the four screws holding the battery cover in place,
then remove the battery cover from the battery box.
❑ Remove the battery holder from the battery box.
✦✦
✦✦
✦IMPORTANT
✦✦
✦✦
✦ The battery holder plug has already been plugged into the switch. Do
not unplug it when removing the batter holder.
❑ Install 4 AA Alkaline batteries into the battery holder, double-checking to make sure
that the polarity is correct.
✦✦
✦✦
✦IMPORTANT
✦✦
✦✦
✦ Make sure that the batteries are pushed firmly into place. They should
not be loose. If for any reason the plug from the battery holder is not plugged into the
switch plug, plug them together now.
SECTION 4: PREPARING TO RUN YOUR X-CELLERATOR NITRO STADIUM RACER
✦✦
✦✦
✦IMPORTANT
✦✦
✦✦
✦ The plug from the switch harness that is secured to the rear shock tower is a charging plug. This plug is optional and
is used if you have an optional transmitter/receiver wall charger and use rechargeable AA batteries. Never attempt to recharge
non-rechargeable batteries. The batteries could explode and cause serious injury.
