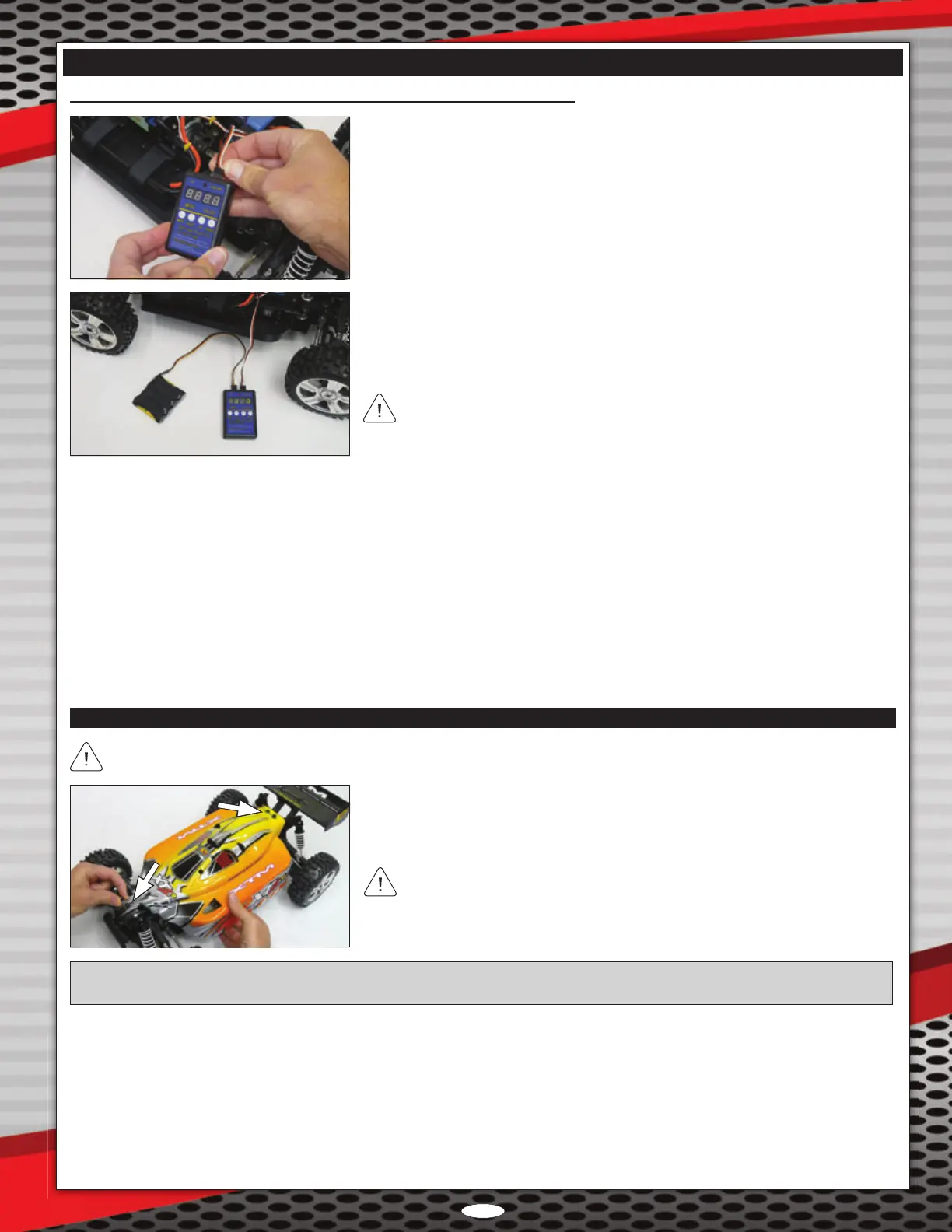

Page 13
q Remove the receiver box top and unplug the ESC throttle lead from the receiver.
q Plug the ESC throttle lead into the 'prog-card' connector on the ESC programming
card, observing correct polarity (the white signal wire should be toward the outside
of the ESC programming card as indicated).
To make changes to the different programming options, follow the procedures below:
q Press the 'MENU' button to cycle through the various menus 1 ~ 10. The current menu will be displayed in the 'MENU' screen.
q From with the desired menu, press the 'VALUE' button to cycle through the various menu values. The current value will be displayed
in the 'VALUE' screen.
q After changing the selected value, press the 'OK' button. The red LED on both the ESC programming card and the ESC will ash.
q Repeat the previous procedures to change the value in the other desired menus. If you prefer to reset the menu options to the default
values, press the 'RESET' button.
q Turn the ESC 'OFF'. The new settings will be saved in the ESC's memory.
Powering the ESC Programming Card from a Separate Battery, Continued....
pREpARING TO RUN YOUR x-TERmINATOR 2e
When powering the ESC programming card with a separate battery, it is not
necessary to turn the ESC 'ON'. In addition, for safety, you should disconnect the
XT2e's battery/batteries from the ESC.
q Plug your separate receiver battery into the 'Car' connector on the ESC programming
card, observing correct polarity (the negative wire should be toward the outside of
the ESC programming card as indicated). The red LED on the ESC programming
card will illuminate and digits will be displayed in the 'MENU' and 'VALUE' screens.
n
Installing the Body
For your convenience, some of the decals have already been applied to the body shell. To apply the remaining decals to the body
shell, simply remove them from the protective backing and apply them to the body shell as desired.
PRO TIP: Always make sure that you install the body shell when driving your X-Terminator 2e. If your X-Terminator 2e ips over,
the body shell will help protect the chassis and its components.
q Fit the body shell onto the chassis, using the two body clips provided. The longer
body clip is used at the rear and the shorter one is used at the front.
In some cases, if the battery retaining straps are left too long, they can interfere
with the correct t of the body shell. If this occurs, cut away the excess material
from the battery retaining straps prior to tting the body shell.
THIS SPACE INTENTIONALLY LEFT BLANK
